| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

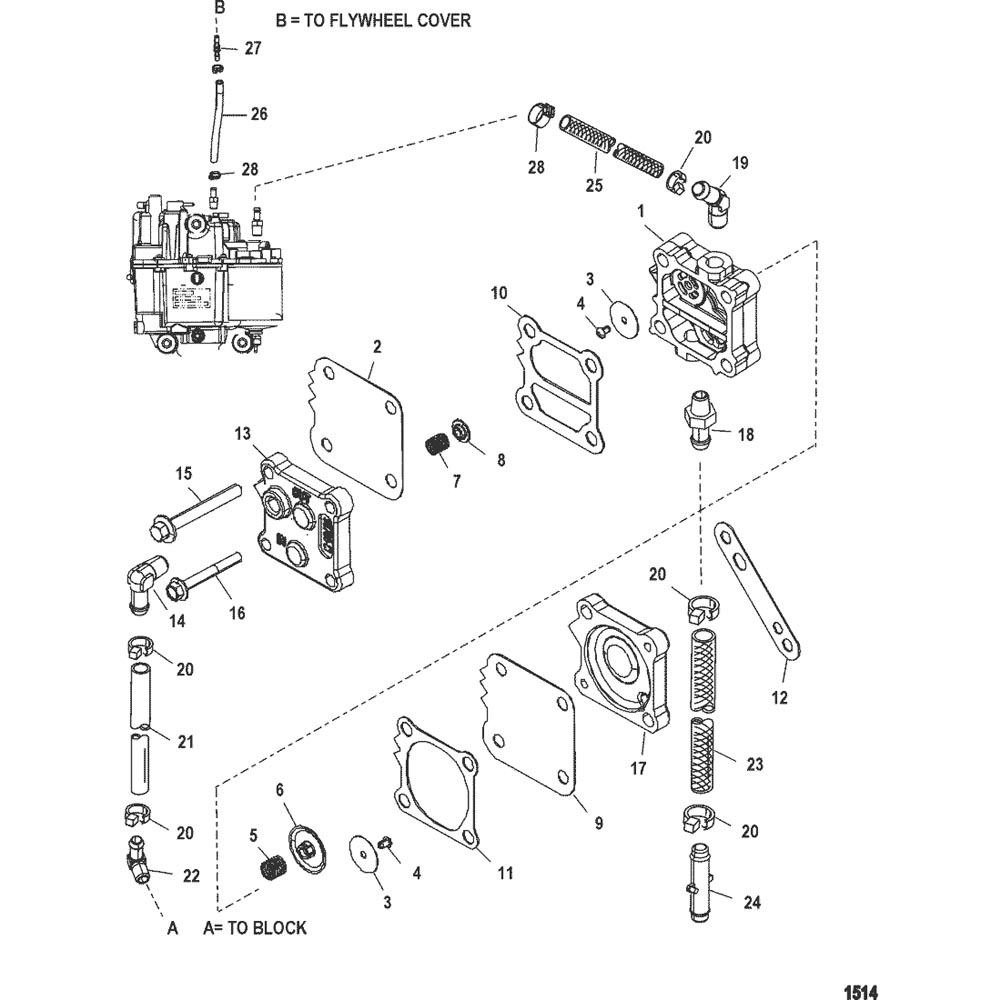

14360T75 |
|
|
|
|
PUMP ASSEMBLY, Fuel |
1 |
|
|
| 1 |
NSS |
|
|
|
|
Fuel Pump Body |
1 |
|
Not Sold Separate |
| 2 |
21-857005A1 |
|
|
|
|
DIAPHRAGM KIT |
1 |
|
|
| 3 |
NSS |
|
|
|
|
Check Valve |
2 |
|
Not Sold Separate |
| 4 |
NSS |
|
|
|
|
Retainer |
2 |
|
Not Sold Separate |
| 5 |
NSS |
|
|
|
|
Spring |
1 |
|
Not Sold Separate |
| 6 |
NSS |
|
|
|
|
Cap |
1 |
|
Not Sold Separate |
| 7 |
NSS |
|
|
|
|
Spring |
1 |
|
Not Sold Separate |
| 8 |
NSS |
|
|
|
|
Cap |
1 |
|
Not Sold Separate |
| 9 |
NSS |
|
|
|
|
Diaphragm |
1 |
|
Not Sold Separate |
| 10 |
NSS |
|
|
|
|
Gasket - Boost |
1 |
|
Not Sold Separate |
| 11 |
NSS |
|
|
|
|
Gasket - Pulse |
1 |
|
Not Sold Separate |
| 12 |
27-987691 |
|
|
|
|
GASKET |
1 |
|
|
| 13 |
987752 |
|
|
|
|
PLATE |
1 |
|
|
| 14 |
22-996642 |
|
|
|
|
FITTING, Elbow 90 Degree (.125-27 x .250) Nylon |
1 |
|
|
| 15 |
10-82104540 |
|
|
|
|
SCREW, (M5 x 40), Fuel Pump |
2 |
|
|
| 16 |
10-82130050 |
|
|
|
|
SCREW, (M6 x 50), Pump to Crankcase |
2 |
|
|
| 17 |
144303 |
|
|
|
|
BASE |
1 |
|
|
| 18 |
22-291112 |
|
|
|
|
FITTING |
1 |
|
|
| 19 |
22-782792 |
|
|
|
|
FITTING, Elbow45 Degree (1.25) |
1 |
|
|
| 20 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 21 |
32-8M0108349 |
|
|
|
|
TUBING, (.312) (70.00 Inches Bulk) (Cut to 6.00 Inch Length) |
1 |
830757130 |
|
| 22 |
22-996642 |
|
|
|
|
FITTING, Elbow 90 Degree (.125-27 x .250) Nylon |
1 |
|
|
| 23 |
32-8M0043979 |
|
|
|
|
HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) |
1 |
856822A2 |
|
| 24 |
22-822769 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 25 |
32-8M0064784 |
|
|
|
|
TUBING |
1 |
856822A1 |
|
| 26 |
32-8M0108355 |
|
|
|
|
HOSE, (57.00 Inches Bulk) (Cut to 7.50 Inch Length) |
1 |
830756109 |
|
| 27 |
22-858955 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 28 |
54-856880 |
|
|
|
|
CLAMP, Hose (15.3) |
AR |
|
|
| - |
27-813859A02 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T02 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
|
|
