| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

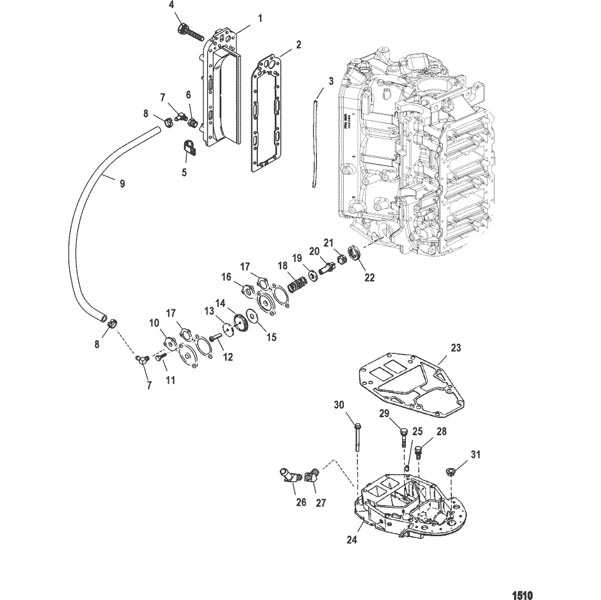

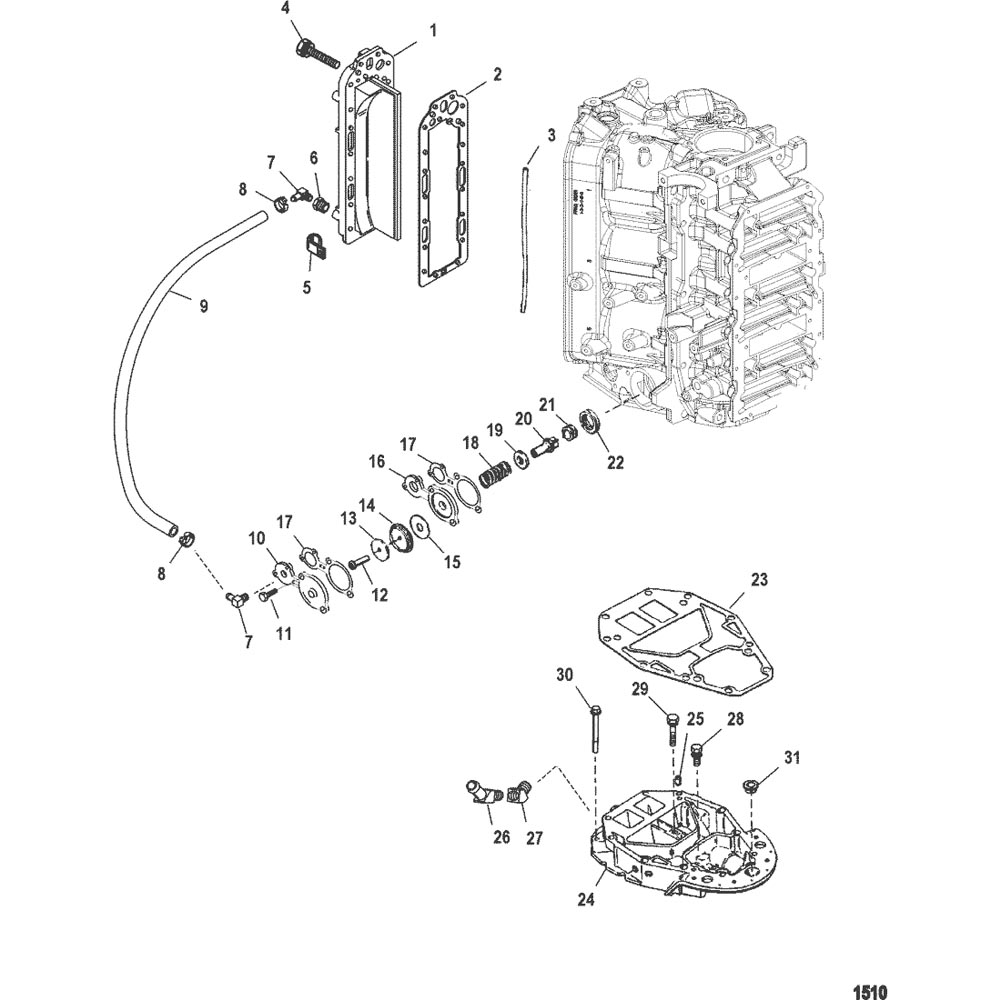

| 1 |
840760T |
|
|
|
|
PLATE, Exhaust Divider |
1 |
|
No Longer Available |
| 2 |
27-847525004 |
|
|
|
|
GASKET |
1 |
8475251 |
|
| 3 |
26-814754 |
|
|
|
|
SEAL, (12.50 Inches) |
1 |
|
|
| 4 |
10-8263561 |
|
|
|
|
SCREW AND WASHER, (.312-18 x 1.500) |
18 |
|
|
| 4 |
10-881190 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
|
| 5 |
54-814634 |
|
|
|
|
CLAMP |
2 |
|
|
| 6 |
22-8231931 |
|
|
|
|
ADAPTOR |
1 |
|
|
| 7 |
22-687271 |
|
|
|
|
FITTING, (.250-18) 90 Degree - Brass |
2 |
|
|
| 8 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
2 |
|
|
| 9 |
32-77653101 |
|
|
|
|
HOSE, (48.00 Inches Bulk) (Cut to 9.75 Inch Length) |
1 |
|
|
| 10 |
8M0039767 |
|
|
|
|
COVER |
1 |
687291 |
|
| 11 |
10-74824 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
4 |
|
|
| 12 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 13 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 14 |
144791 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 15 |
16496 |
|
|
|
|
DEFLECTOR, Water |
1 |
|
|
| 16 |
16497A1 |
|
|
|
|
PLATE |
1 |
|
|
| 17 |
27-78690002 |
|
|
|
|
GASKET |
2 |
78690 |
|
| 18 |
24-64878 |
|
|
|
|
SPRING, (Black) |
1 |
|
|
| 19 |
12-85303 |
|
|
|
|
WASHER |
1 |
|
|
| 20 |
14480 |
|
|
|
|
POPPET |
1 |
|
|
| 21 |
25-64872 |
|
|
|
|
GROMMET |
1 |
|
|
| 22 |
65848 |
|
|
|
|
CARRIER |
1 |
|
|
| 23 |
27-8231422 |
|
|
|
|
GASKET |
2 |
|
|
| 24 |
18260T5 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
|
|
| 25 |
17-8M0043826 |
|
|
|
|
PIN, Dowel (.875) |
2 |
823106 |
|
| 26 |
22-14867 |
|
|
|
|
ELBOW, 45 Degree (45 Degrees) |
1 |
|
|
| 27 |
22-8M0109010 |
|
|
|
|
FITTING, Elbow (45 Degree) |
1 |
29085 |
|
| 28 |
10-66727 |
|
|
|
|
SCREW, (.312-18 x 1.250) |
1 |
|
|
| 29 |
10-68783 |
|
|
|
|
SCREW, (.312-18 x 2.50) |
1 |
|
|
| 30 |
10-898833 |
|
|
|
|
SCREW, (.375-16 x 3.50) |
3 |
66725 |
|
| 31 |
23-27132 |
|
|
|
|
BUSHING |
1 |
|
|
| - |
27-813859A02 |
|
|
|
|
GASKET SET |
1 |
|
|
| - |
809430T02 |
|
|
|
|
POWERHEAD ASSEMBLY |
1 |
|
|
