225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Crankshaft, Pistons And Connecting Rods

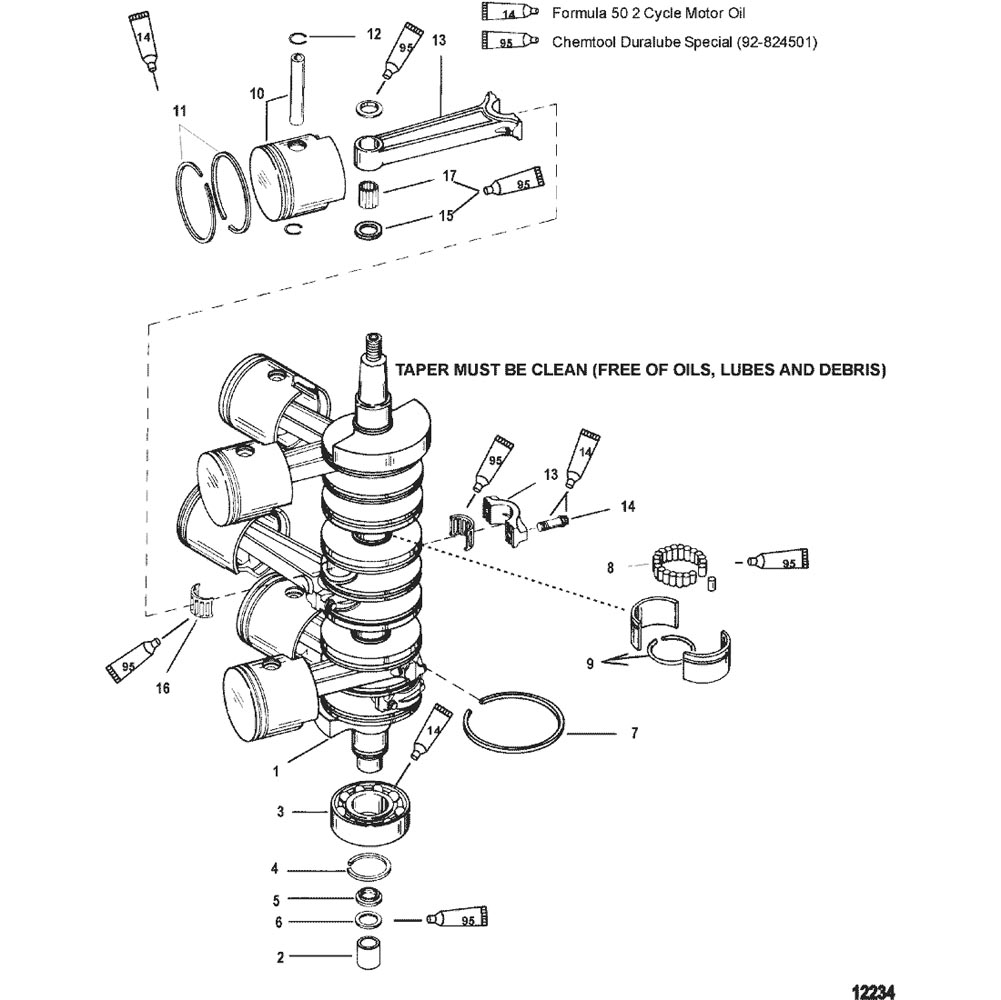

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 455-850690T7         CRANKSHAFT ASSEMBLY 1
2 78662         WEAR SLEEVE 1
3 30-67923T         BEARING, Ball, Lower 1
4 53-67446         RING 1
5 54196A6         CARRIER ASSEMBLY 1
6 65800         PACKING 1
7 39-67377T         RING, Sealing 9 67377
8 31-16756A6         BEARING KIT 2
9 NSS         Race 2 Not Sold Separate
10 785-840993T1         PISTON 3
10 785-841123T1         PISTON AR
10 785-840992T1         PISTON 3
10 785-841124T1         PISTON AR
11 39-840684A12         RING SET, Piston 1
11 39-841139A12         RING SET, Piston AR
12 53-857196         LOCK RING 12
13 644-8M0081411         CONNECTING ROD ASSEMBLY 6
14 10-763491         SCREW, (.312-24 x .875) 12
15 12-8M0012298         WASHER 12 812876
16 31-8M0082405         BEARING KIT 6
17 29-822553         BEARING, Needle 174
- 27-813859A02         GASKET SET 1
- 809430T02         POWERHEAD ASSEMBLY 1
