225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Coil Plate Assembly

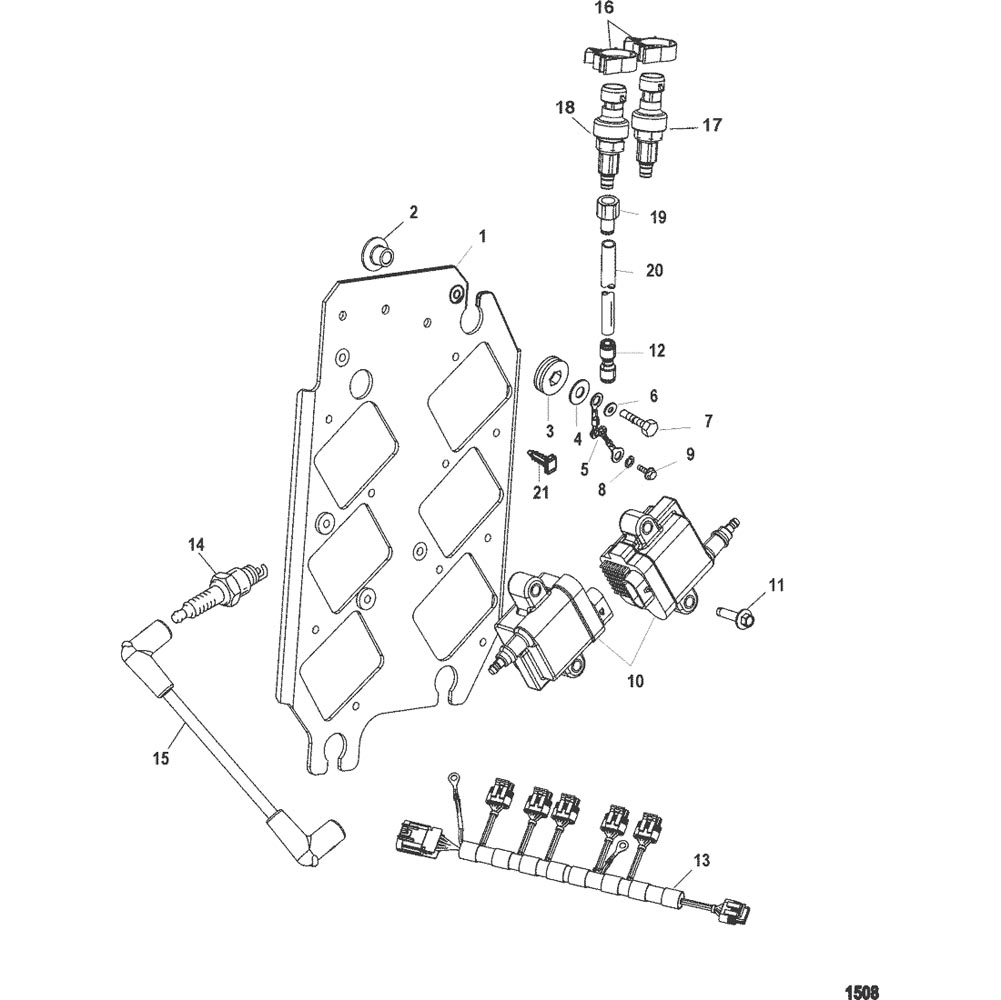

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 880188F1 | PLATE, Coil | 1 | ||||||
| 2 | 23-8502341 | BUSHING | 4 | ||||||
| 3 | 25-833155 | GROMMET | 4 | ||||||
| 4 | 12-49436 | WASHER | 4 | ||||||
| 5 | 84-858414A1 | CABLE ASSEMBLY, Braided | 2 | ||||||
| 6 | 12-8M0042642 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | 70132 | |||||
| 7 | 10-60411 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 8 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 3 | ||||||
| 9 | 10-82129110 | SCREW, (M6 x 10) | 3 | ||||||
| 10 | 339-8M0077471 | COIL KIT | 6 | 879984A1 | |||||
| 11 | 10-82129130 | SCREW, (M6 x 30) | 12 | ||||||
| 12 | 22-859747 | COUPLER | 1 | ||||||
| 13 | 84-882757T1 | HARNESS ASSEMBLY, Coil | 1 | ||||||
| 14 | 33-8M0046265 | SPARK PLUG | 6 | 885185 | |||||
| 15 | 84-881908T | CABLE SET | 1 | ||||||
| 16 | 54-883066 | CLIP, (.865) | 2 | ||||||
| 17 | 881879A7 | SENSOR KIT, (0-50 PSI) | 1 | ||||||
| 18 | 881879T11 | SENSOR, (0 - 100 PSI) | 1 | 881879A6 | |||||
| 18 | 881879A5 | SENSOR, Speedometer (0-200 PSI) | 1 | ||||||
| 19 | 22-892403 | FITTING | 1 | 859431 | |||||
| 20 | 32-85944975 | TUBING, (72.00 Inches Bulk) (Cut To 14.50 Inch Length) | 1 | ||||||
| 21 | 54-828991T | CLIP | 1 | 828991 |
