| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

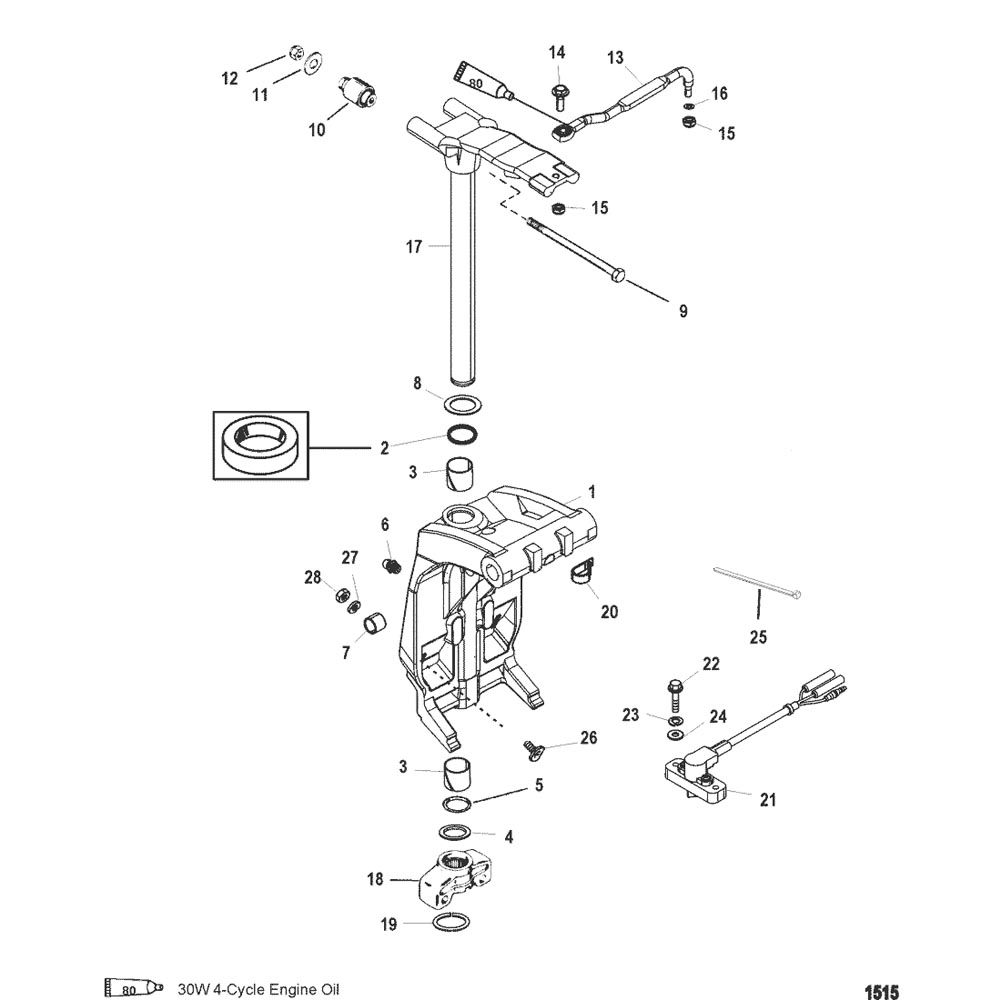

| 1 |
1499-8M0102865 |
|
|
|
|
SWIVEL BRACKET ASSEMBLY, Black |
1 |
8710T20 |
|
| 2 |
26-87735 |
|
|
|
|
SEAL, Oil, Lower |
1 |
|
|
| 3 |
23-818764 |
|
|
|
|
BUSHING |
2 |
|
|
| 4 |
23-816039 |
|
|
|
|
SPACER |
1 |
|
|
| 5 |
25-33504 |
|
|
|
|
O-RING |
1 |
|
|
| 6 |
22-74036 |
|
|
|
|
FITTING, Grease |
2 |
|
|
| 7 |
23-821207 |
|
|
|
|
BUSHING |
2 |
|
|
| 8 |
12-816432 |
|
|
|
|
THRUST WASHER |
1 |
|
|
| 9 |
10-8M0000491 |
|
|
|
|
SCREW, (.437-20 x 7.50) |
2 |
78689 |
|
| 10 |
776981 |
|
|
|
|
MOUNT |
2 |
|
|
| 11 |
12-78688 |
|
|
|
|
WASHER |
2 |
|
|
| 12 |
11-34933 |
|
|
|
|
NUT, (.437-20) Stainless Steel |
2 |
|
|
| 13 |
92876A12 |
|
|
|
|
LINK ROD ASSEMBLY |
1 |
92876A10 |
|
| 14 |
10-849838 |
|
|
|
|
SCREW, (.375-24 x 1.250) |
1 |
|
|
| 15 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
2 |
|
|
| 16 |
12-37828 |
|
|
|
|
WASHER, (.390 x .625 x .062) Stainless Steel |
2 |
|
|
| 17 |
17-67706A55 |
|
|
|
|
SWIVEL PIN ASSEMBLY, Steering Arm |
1 |
|
No Longer Available |
| 18 |
86580A1 |
|
|
|
|
YOKE ASSEMBLY, Bottom |
1 |
|
No Longer Available |
| 19 |
53-67684 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 20 |
54-54457 |
|
|
|
|
J CLIP |
1 |
|
|
| 21 |
859187A1 |
|
|
|
|
SENDER ASSEMBLY, Trim |
1 |
|
|
| 22 |
10-852368 |
|
|
|
|
SCREW, (#10-24 x .750) |
2 |
|
|
| 23 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 24 |
12-89302 |
|
|
|
|
WASHER, (.203 x .406 x .040) |
2 |
|
|
| 25 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 26 |
8M0045383 |
|
|
|
|
STRIKER PLATE |
2 |
996301 |
|
| 27 |
13-58643 |
|
|
|
|
LOCKWASHER, (.375) |
2 |
|
|
| 28 |
11-46335 |
|
|
|
|
NUT, (.375-24) |
2 |
|
|
