225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Instrumentation/Accessories

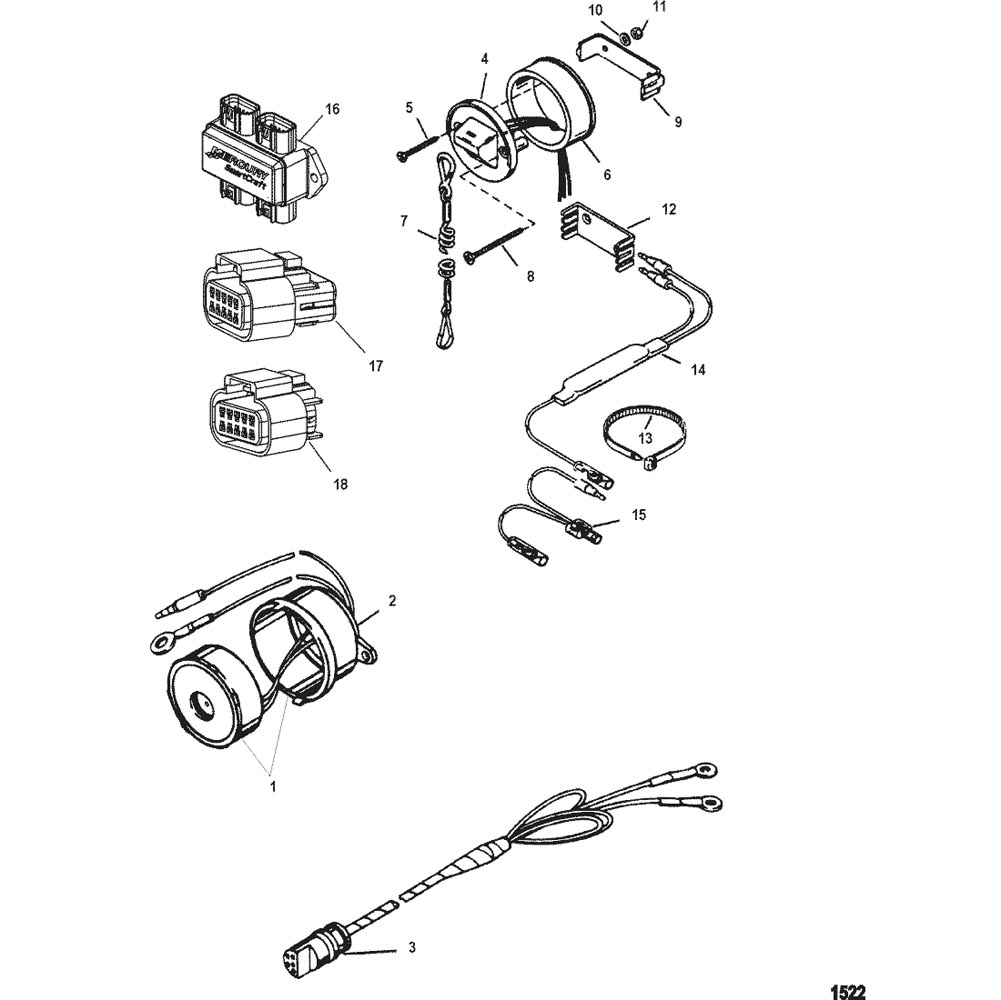

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | No Longer Available | |||||
| 2 | 848043T01 | COVER | 1 | ||||||
| 3 | 84-86396A8 | HARNESS ASSEMBLY, Tachometer (5.00 Feet) | 1 | ||||||
| 4 | 87-19674A1 | SWITCH ASSEMBLY, Lanyard | 1 | No Longer Available | |||||
| 5 | 10-18303 | SCREW, (.190-16 x 1.750) Stainless Steel | 2 | ||||||
| 6 | 813679 | ADAPTER | 1 | ||||||
| 7 | 15920Q54 | LANYARD ASSEMBLY | 1 | No Longer Available | |||||
| 8 | 10-32866 | SCREW, (#10-32 x 2.00) Stainless Steel | 2 | ||||||
| 9 | 18321 | CLAMP, Mounting | 1 | ||||||
| 10 | 12-24676 | WASHER, (.200 x .440 x .032) | 2 | ||||||
| 11 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 12 | 79146 | RETAINER | AR | ||||||
| 13 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 14 | 812497A2 | DIODE ASSEMBLY | 1 | No Longer Available | |||||
| 15 | 84-11149A2 | CABLE ASSEMBLY, (6.00 Inches) | 1 | ||||||
| - | 79-879896K10 | SYSTEM MONITOR KIT, SC1000 - Front Mount | 1 | 879896K4 | No Longer Available | ||||
| - | 84-879981T20 | HARNESS ASSEMBLY, (SC1000R-20) | 1 | ||||||
| 16 | 878492T14 | JUNCTION BOX, 4 Way | 1 | 878492T4 | |||||
| 17 | 859318T1 | TERMINATOR, 10 Pin (CAN 1 and 2) | 1 | ||||||
| 18 | 859318T2 | CAP, Weather - 10 Pin | 1 | ||||||
| - | 84-879979T11 | HARNESS ASSEMBLY, Tachometer (SC1000-3) | 1 | 879979T1 | |||||
| - | 79-879918K11 | WATER PRESSURE GAUGE, (White) | 1 |
