225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Cylinder Head

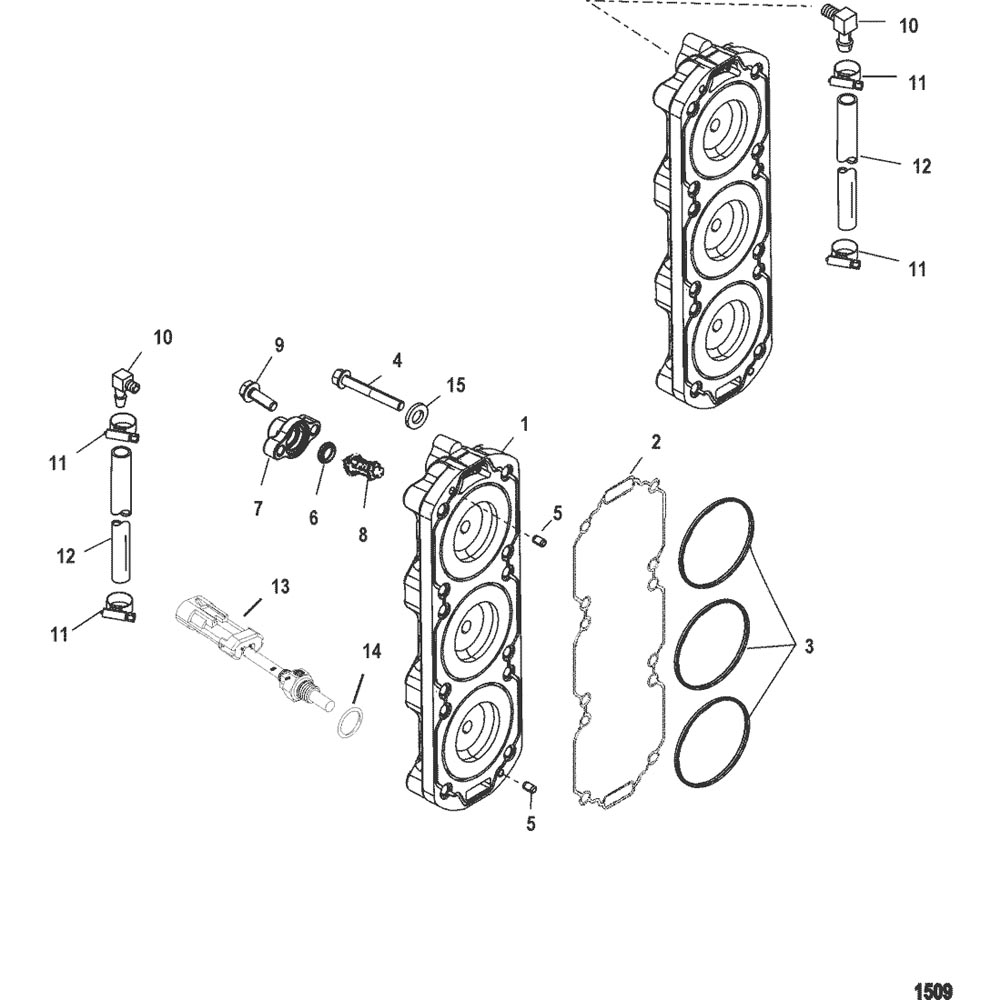

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849496T12         CYLINDER HEAD 2
2 8584521         SEAL 2
3 8597721         SEAL 6
4 10-878217         SCREW, (.375-16 x 2.750) 24
5 17-63779         PIN, Dowel (.250 x .625) 4
6 27-62386001         GASKET 2 62386
7 90390A1         COVER KIT 2
8 14586         THERMOSTAT 2
9 10-40011149         SCREW, (M8 x 25) Stainless Steel 4
10 22-687271         FITTING, (.250-18) 90 Degree - Brass 2
11 54-815504104         CLAMP, Worm Gear 4
12 32-774572         HOSE, (48.00 Inches Bulk) (Cut to 2.00 Inch Length)(To Telltail) 1
12 32-774572         HOSE, (48.00 Inches Bulk) (Cut to 2.00 Inch Length)(To Exhaust Plate) 1
13 885342002         SENSOR ASSEMBLY 2 885342001
14 25-627021         O-RING, (.301 x .070) 2
14 25-896699         O-RING, (.351 x .072) 2 888814
15 12-822838         WASHER, (.401 x .745 x .097) 24
- 27-813859A02         GASKET SET 1
- 809430T02         POWERHEAD ASSEMBLY 1
