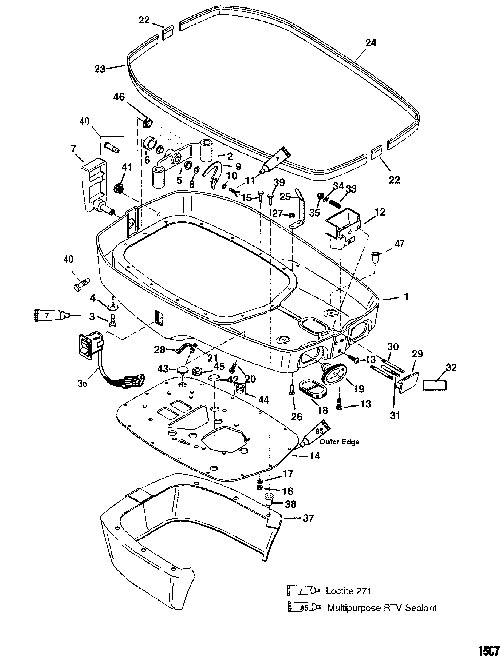

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
107-849479A8 |
|
|
|
|
BOTTOM PAN |
1 |
|
No Longer Available |
| 1 |
107-849479T5 |
|
|
|
|
BOTTOM PAN |
1 |
|
|
| 2 |
848810 |
|
|
|
|
BRACKET, Latch |
1 |
|
|
| 3 |
10-28782 |
|
|
|
|
SCREW, (.312-18 x .880) Stainless Steel |
2 |
|
|
| 4 |
12-814806 |
|
|
|
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 5 |
23-812707 |
|
|
|
|
BUSHING |
2 |
|
|
| 6 |
848985 |
|
|
|
|
SEAL |
1 |
|
|
| 7 |
848815T1 |
|
|
|
|
HANDLE |
1 |
|
|
| 8 |
13-F2047 |
|
|
|
|
WASHER, Wave |
1 |
|
|
| 9 |
8M0001081 |
|
|
|
|
CAM |
1 |
889566 |
|
| 10 |
12-4002316 |
|
|
|
|
WASHER |
1 |
|
|
| 11 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 12 |
849830T1 |
|
|
|
|
LATCH |
1 |
|
|
| 13 |
10-849011 |
|
|
|
|
SCREW, (.250-20 x .750) |
2 |
|
|
| 14 |
849480T2 |
|
|
|
|
PLATE |
1 |
|
No Longer Available |
| 14 |
849480T |
|
|
|
|
PLATE |
1 |
|
|
| 15 |
10-38601 |
|
|
|
|
SCREW, (.250-28 x 1.250) |
14 |
|
|
| 16 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
14 |
|
|
| 17 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
14 |
|
|
| 18 |
25-849750 |
|
|
|
|
GROMMET |
1 |
|
|
| 19 |
25-8177133 |
|
|
|
|
GROMMET |
2 |
|
|
| 20 |
10-690201 |
|
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 21 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 22 |
8M0043399 |
|
|
|
|
SEAL |
2 |
849767 |
|
| 23 |
8M0043398 |
|
|
|
|
SEAL |
1 |
849766 |
|
| 24 |
8M0043397 |
|
|
|
|
SEAL |
1 |
849765 |
|
| 25 |
8496191 |
|
|
|
|
BRACE |
2 |
|
|
| 26 |
10-849011 |
|
|
|
|
SCREW, (.250-20 x .750) |
4 |
|
|
| 27 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
4 |
|
|
| 28 |
88621 |
|
|
|
|
RETAINER |
1 |
|
No Longer Available |
| 29 |
849831A1 |
|
|
|
|
LATCH HANDLE ASSEMBLY |
1 |
|
|
| 30 |
16-843118 |
|
|
|
|
STUD, (.250-20 x 3.310) |
2 |
849833 |
|
| 30 |
16-843118 |
|
|
|
|
STUD, (.250-20 x 3.45) |
2 |
|
|
| 31 |
849832 |
|
|
|
|
PIN |
1 |
|
|
| 32 |
NSS |
|
|
|
|
Decal |
1 |
|
Not Sold Separate |
| 33 |
24-849837 |
|
|
|
|
SPRING, (.360 Outside Diameter) |
2 |
|
No Longer Available |
| 33 |
24-842776 |
|
|
|
|
SPRING, (.420 Outside Diameter) |
2 |
|
|
| 34 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
2 |
|
|
| 35 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
2 |
|
|
| 36 |
87-8M0042300 |
|
|
|
|
SWITCH, Trim |
1 |
8569901 |
|
| 37 |
108-849534A1 |
|
|
|
|
SKIRT |
1 |
|
|
| 38 |
11-849000 |
|
|
|
|
NUT |
6 |
|
|
| 39 |
10-F2030 |
|
|
|
|
SCREW, (.250-20 x 1.250) Stainless Steel |
6 |
|
|
| 40 |
22-94848 |
|
|
|
|
FITTING |
1 or 2 |
|
|
| 41 |
19-32298 |
|
|
|
|
PLUG |
2 |
|
|
| 42 |
19-817362 |
|
|
|
|
CAP |
1 |
|
|
| 43 |
19-89774 |
|
|
|
|
PLUG |
1 |
|
|
| 44 |
25-12602002 |
|
|
|
|
GROMMET |
1 |
126021 |
|
| 45 |
25-57009001 |
|
|
|
|
GROMMET |
1 |
57009 |
|
| 46 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 47 |
19-849751 |
|
|
|
|
PLUG |
2 |
|
|
