| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

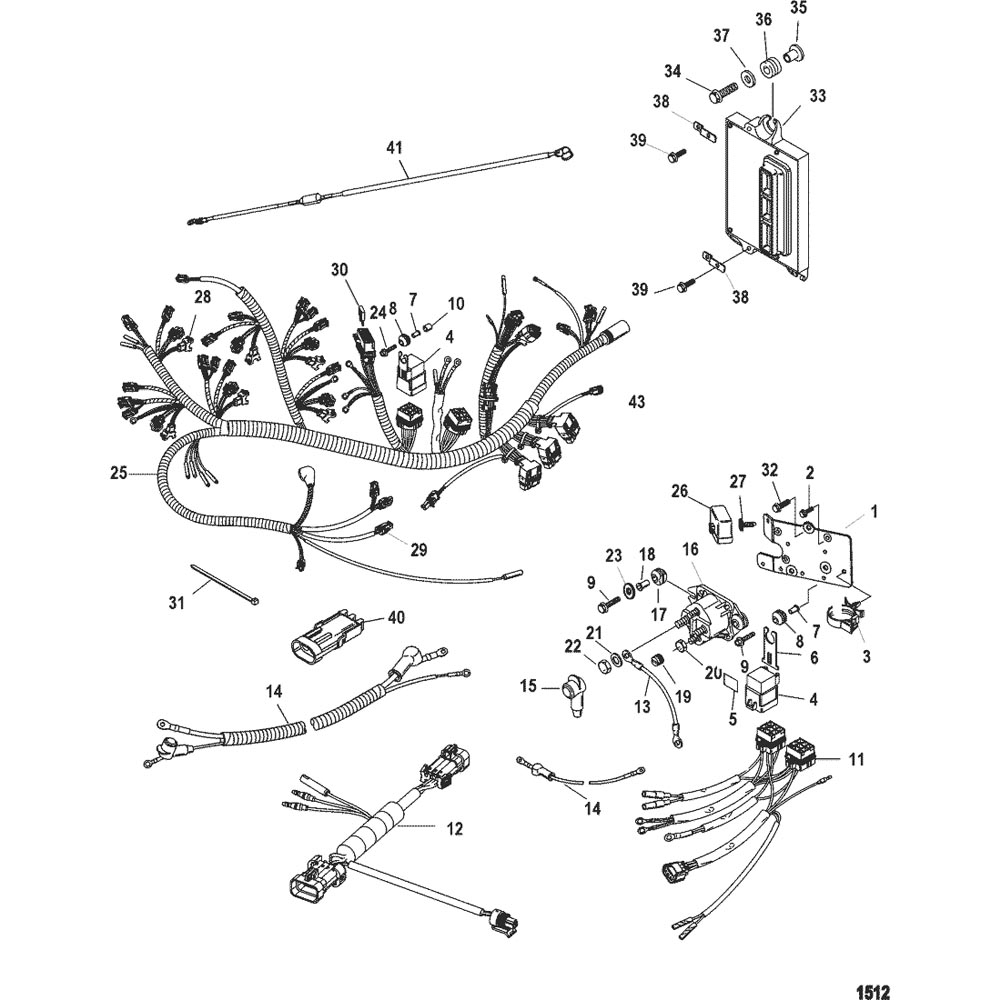

| 1 |
833137F1 |
|
|
|
|
PLATE |
1 |
|
|
| 2 |
10-82129110 |
|
|
|
|
SCREW, (M6 x 10) |
3 |
|
|
| 3 |
54-858755 |
|
|
|
|
CLIP, (1.00) |
1 |
|
|
| 4 |
882751A1 |
|
|
|
|
RELAY ASSEMBLY |
3 |
|
|
| 5 |
NSS |
|
|
|
|
Decal - Trim Relay |
3 |
|
Not Sold Separate |
| 6 |
828102 |
|
|
|
|
BRACKET |
3 |
|
|
| 7 |
23-818968 |
|
|
|
|
BUSHING |
3 |
|
|
| 8 |
25-818967 |
|
|
|
|
GROMMET |
3 |
|
|
| 9 |
10-82129125 |
|
|
|
|
SCREW, (M6 x 25 MM) |
4 |
|
|
| 10 |
23-91912 |
|
|
|
|
BUSHING |
1 |
|
|
| 11 |
84-819514T16 |
|
|
|
|
HARNESS ASSEMBLY, Trim |
1 |
|
|
| 12 |
84-859244A2 |
|
|
|
|
HARNESS ASSEMBLY |
1 |
859244T2 |
|
| 13 |
84-88807A16 |
|
|
|
|
CABLE ASSEMBLY, (4.00 Inches) Black, Black |
1 |
|
|
| 14 |
84-882830A1 |
|
|
|
|
CABLE ASSEMBLY |
1 |
|
|
| 15 |
85-8500671 |
|
|
|
|
BOOT, Insulator - Red |
1 |
|
|
| 16 |
89-817109A2 |
|
|
|
|
SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) |
1 |
|
|
| 17 |
25-822179 |
|
|
|
|
GROMMET |
2 |
|
|
| 18 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 19 |
11-813938 |
|
|
|
|
CAP NUT, (#10-32) |
1 |
|
|
| 20 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
2 |
|
|
| 21 |
13-53166 |
|
|
|
|
LOCKWASHER, (.312) |
2 |
|
|
| 22 |
11-68292 |
|
|
|
|
NUT, (.312-18) |
2 |
|
|
| 23 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
1 |
|
|
| 24 |
10-82129135 |
|
|
|
|
SCREW, (M6 x 35) |
1 |
|
|
| 25 |
84-880186T1 |
|
|
|
|
HARNESS ASSEMBLY, Engine Wiring |
1 |
|
|
| 25 |
84-880186T3 |
|
|
|
|
HARNESS ASSEMBLY, Engine Wiring |
1 |
|
|
| 26 |
858754 |
|
|
|
|
COVER, Fuse |
1 |
|
|
| 27 |
54-828991T |
|
|
|
|
CLIP |
2 |
828991 |
|
| 28 |
84-879346A50 |
|
|
|
|
HARNESS ASSEMBLY, Fuel Injector |
1 |
858780A2 |
|
| 29 |
84-879346A41 |
|
|
|
|
HARNESS ASSEMBLY, TPS |
1 |
878073A2 |
|
| 30 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
4 |
83296920 |
|
| 30 |
88-832969T05 |
|
|
|
|
FUSE, Mini - Tan - 5 Ampere |
1 |
8329695 |
|
| 30 |
88-832969T15 |
|
|
|
|
FUSE, Mini - Blue - 15 Ampere |
1 |
83296915 |
|
| 31 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 32 |
10-82130012 |
|
|
|
|
SCREW, (M6 x 12) |
3 |
|
|
| 33 |
885557T19 |
|
|
|
|
ECM, Engine Control Module |
1 |
85961010 |
|
| 33 |
885557T19 |
|
|
|
|
ECM, Engine Control Module |
1 |
8596109S |
|
| 33 |
885557T19 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
88555719S |
|
| 34 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
| 35 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 36 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 37 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 38 |
858953 |
|
|
|
|
BRACKET |
2 |
|
|
| 39 |
10-82129114 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 40 |
832948A1 |
|
|
|
|
CONNECTOR ASSEMBLY |
1 |
|
|
| 41 |
84-878231A6 |
|
|
|
|
HARNESS ASSEMBLY, Fuse - 100 Ampere |
1 |
|
|
