| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

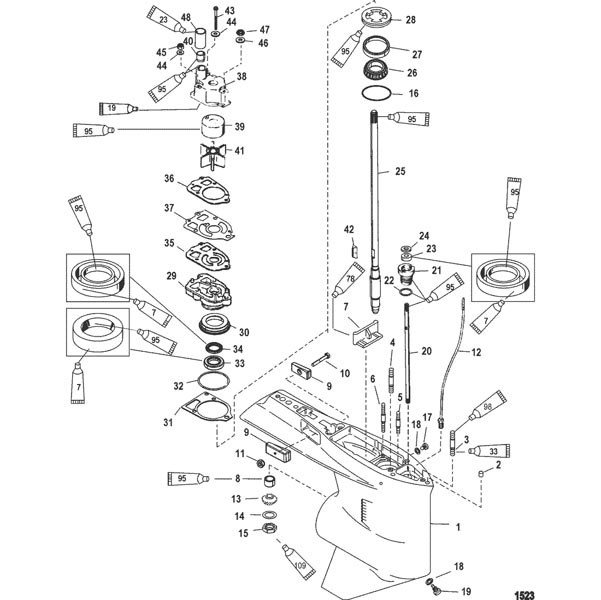

1686-827214T23 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
No Longer Available |
| 1 |
1686-827214T25 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
|
|
| 2 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 3 |
16-786382 |
|
|
|
|
STUD, (.437-14/.437-20 x 3.120) |
1 |
|
|
| 4 |
16-579203 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.060) |
2 |
|
|
| 5 |
16-8M0034463 |
|
|
|
|
STUD, (.312-18/.324-24 x 3.380) |
1 |
562972 |
|
| 6 |
16-30667 |
|
|
|
|
STUD, (.250-20/.250-28 x 3.125) |
2 |
|
|
| 7 |
8M0039169 |
|
|
|
|
FILLER BLOCK |
1 |
67891 |
|
| 8 |
31-42647A1 |
|
|
|
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 9 |
97-826134Q |
|
|
|
|
ANODE |
2 |
|
|
| 10 |
10-4000333 |
|
|
|
|
SCREW, (M6 x 40) |
1 |
|
|
| 11 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 12 |
22-85822A10 |
|
|
|
|
CONNECTOR ASSEMBLY |
1 |
|
|
| 13 |
NSS |
|
|
|
|
Pinion Gear (Part Of 43- 44104A 7) |
1 |
|
Not Sold Separate |
| 14 |
12-92721 |
|
|
|
|
WASHER |
1 |
|
|
| 15 |
11-35921 |
|
|
|
|
NUT, (.625-18) |
1 |
|
|
| 16 |
15-42637A1 |
|
|
|
|
SHIM SET |
AR |
|
No Longer Available |
| 17 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) Drain |
1 |
79953Q2 |
|
| 18 |
12-191833 |
|
|
|
|
SEAL |
2 |
|
|
| 19 |
22-8M0058389 |
|
|
|
|
FITTING KIT, Magnetic, Plug Fill/Drain |
1 |
67892A1 |
|
| 20 |
789022 |
|
|
|
|
SHIFT SHAFT |
1 |
|
|
| 21 |
23-77631A2 |
|
|
|
|
BUSHING ASSEMBLY |
1 |
|
|
| 22 |
25-25439 |
|
|
|
|
O-RING, (.862 x .103) |
1 |
|
|
| 23 |
26-8164641 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 24 |
12-77674 |
|
|
|
|
WASHER |
1 |
|
|
| 25 |
45-848449A5 |
|
|
|
|
DRIVESHAFT ASSEMBLY |
1 |
|
|
| 26 |
31-36387A1 |
|
|
|
|
BEARING ASSEMBLY, Roller/Cup |
1 |
|
|
| 27 |
NSS |
|
|
|
|
Cup |
1 |
|
Not Sold Separate |
| 28 |
8245191 |
|
|
|
|
RETAINER |
1 |
|
|
| 29 |
46-44292A3 |
|
|
|
|
BASE ASSEMBLY, Water Pump |
1 |
|
|
| 30 |
NSS |
|
|
|
|
Retainer |
1 |
|
Not Sold Separate |
| 31 |
27-426311 |
|
|
|
|
GASKET |
1 |
|
|
| 32 |
25-896523 |
|
|
|
|
O-RING, (2.175 x .175) |
1 |
90011 |
|
| 33 |
26-89238 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 34 |
26-16977 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 35 |
27-18051 |
|
|
|
|
GASKET |
1 |
|
|
| 36 |
27-858524 |
|
|
|
|
GASKET |
1 |
|
|
| 37 |
324351 |
|
|
|
|
FACE PLATE |
1 |
32435 |
|
| 38 |
46-96148T1 |
|
|
|
|
BODY ASSEMBLY, Water Pump |
1 |
|
|
| 39 |
48752T |
|
|
|
|
INSERT |
1 |
|
|
| 40 |
26-38970 |
|
|
|
|
SEAL |
1 |
|
|
| 41 |
47-89984T4 |
|
|
|
|
IMPELLER |
1 |
|
|
| 42 |
28-8M0032834 |
|
|
|
|
KEY |
1 |
56654 |
|
| 43 |
10-96411 |
|
|
|
|
SCREW, (#14-8 x 2.25) |
1 |
|
|
| 44 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 45 |
11-8267119 |
|
|
|
|
NUT, (.250-28) |
2 |
|
|
| 46 |
12-36001 |
|
|
|
|
WASHER |
1 |
|
|
| 47 |
11-13436 |
|
|
|
|
NUT |
1 |
|
|
| 48 |
23-29804T |
|
|
|
|
SLEEVE |
1 |
|
|
| - |
46-96148A8 |
|
|
|
|
BODY ASSEMBLY, Water Pump |
1 |
|
|
| - |
26-89238A3 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
| - |
27-813859A02 |
|
|
|
|
GASKET SET |
1 |
|
|
