502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Alternator (Mando)

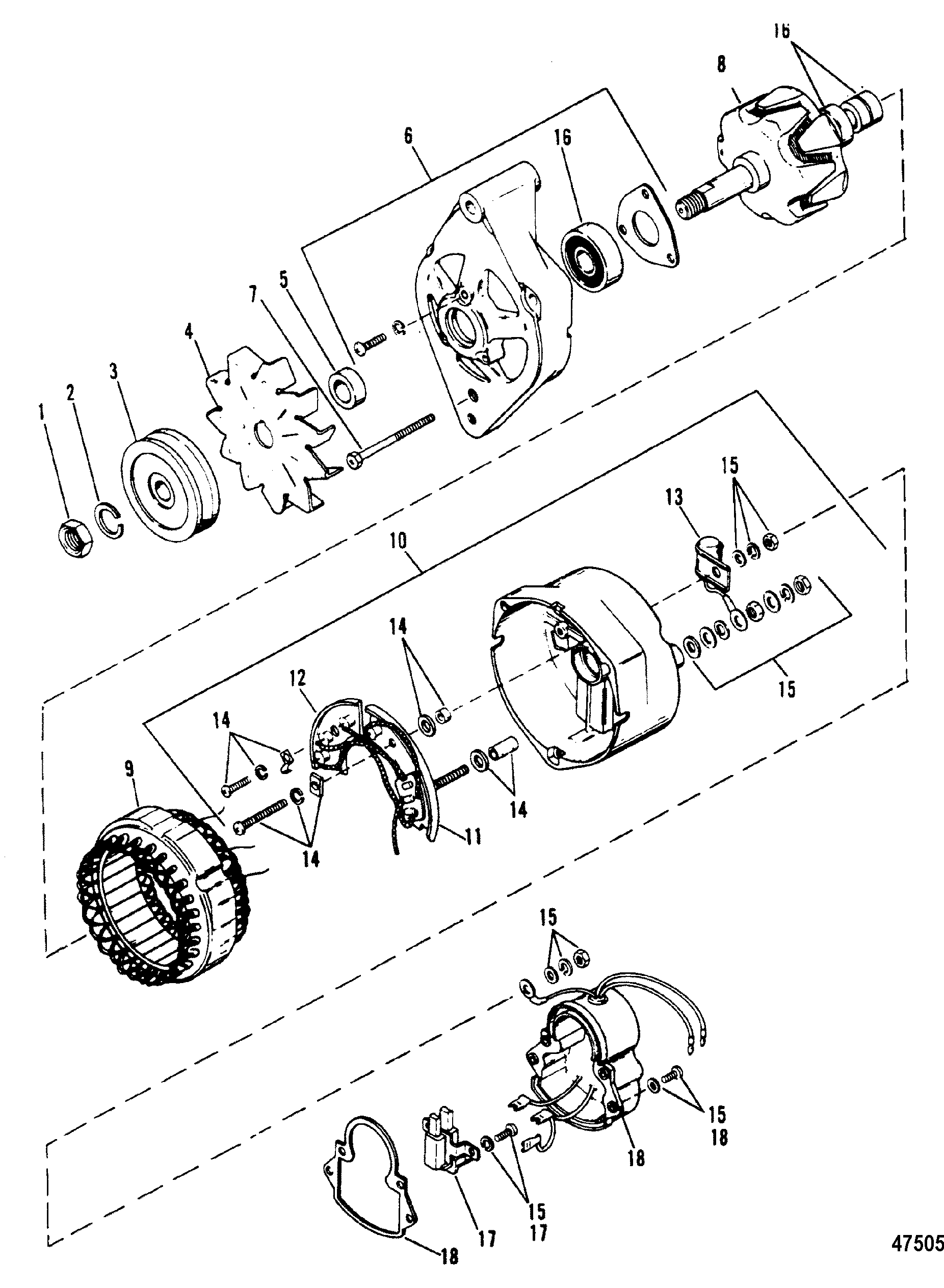

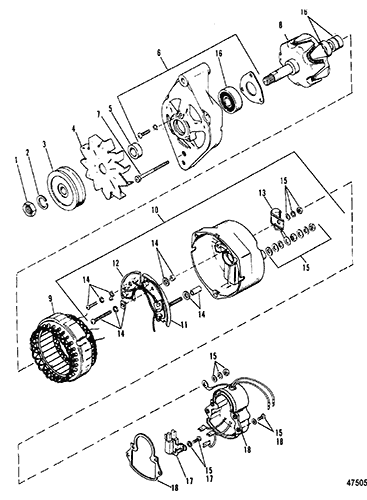

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 817119A4 620-3186M 676-9-19101

ALTERNATOR ASSEMBLY, (55 Ampere) 1 92497A3
1 11-809136



NUT 1 11-42768
2 13-42769



LOCKWASHER 1

3 809134



PULLEY 1 42770
4 42771



FAN 1
This Part is No Longer Available
5 23-42772



SPACER 1
This Part is No Longer Available
6 42774



BRACKET 1
This Part is No Longer Available
7 10-42773



THRU BOLT 3
This Part is No Longer Available
8 42775



ROTOR (INCLUDES BEARINGS) 1
This Part is No Longer Available
9 42776



STATOR 1
This Part is No Longer Available
10 42777



BRACKET 1
This Part is No Longer Available
11 42778



HEAT SINK 1
This Part is No Longer Available
12 42779



HEAT SINK 1
This Part is No Longer Available
13 2780



CONDENSER ASSEMBLY 1
This Part is No Longer Available
14 42783



HARDWARE KIT, INTERNAL 1
This Part is No Longer Available
15 42782



HARDWARE KIT, EXTERNAL 1
This Part is No Longer Available
16 42781



BEARING KIT 1
This Part is No Longer Available
17 42784



HOLDER KIT (INCLUDES SPRINGS & BRUSHES) 1

18 42785

700-72240
REGULATOR KIT 1
No longer made, limited availability
