502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Thermostat Housing(Standard Cooling)

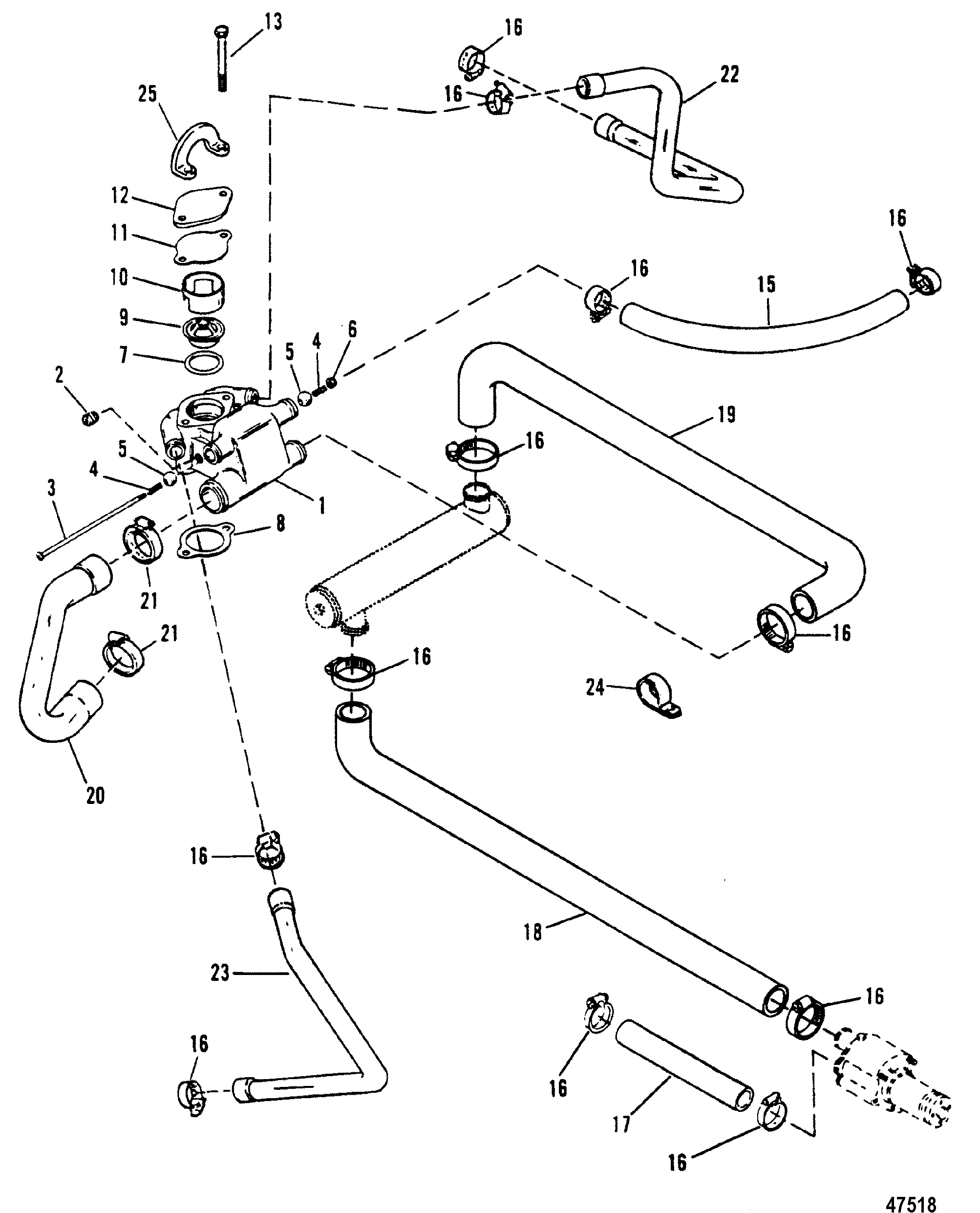

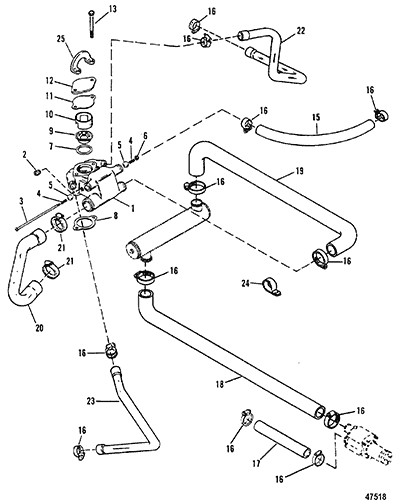

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16413A9



HOUSING ASSEMBLY, Thermostat 1
This Part is No Longer Available
2 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 1

3 10-17989



SCREW, (#10-32 x 8.600) 1

4 24-75533



SPRING 2

5 30-98475



BALL, Nylon 2

6 11-29488

700-21163
NUT, (#10-32) 1
No longer made, limited availability
7 25-30224
676-9-76501 700-82250
O-RING, (1.859 x .139) 1

8 27-530451



GASKET 1

9 807252T1



THERMOSTAT, (140 Degrees) (143DEGREES) 1 8052731
10 23-806922



SLEEVE 1 23-174951
11 27-331792



GASKET 1

12 17494A1



COVER KIT 1

13 10-60410



SCREW, (.375-16 x 4.250) (4-1/4") 2

15 32-817433



HOSE (MOLDED) 2
This Part is No Longer Available
16 54-815504220



CLAMP, Worm Gear AR

17 32-865672079



HOSE, (48.00 Inches Bulk), SEA PUMP TO DRIVE UNIT 132-1743570
18 32-805251



HOSE, OIL COOLER TO SEA PUMP 1

19 32-8162861



HOSE, OIL COOLER TO THERMOSTAT HOUSING 1
This Part is No Longer Available
20 32-897181



HOSE, THERMOSTAT HOUSING TO WATER PUMP 1

21 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2
22 32-897491



HOSE, THERMOSTAT COVER (PORT) 1
23 32-897301



HOSE, THERMOSTAT COVER (STARBOARD) 1
24 54-47715



CLIP 1
25 12552



LIFTING EYE 1
