502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Intake Manifold And Front Cover

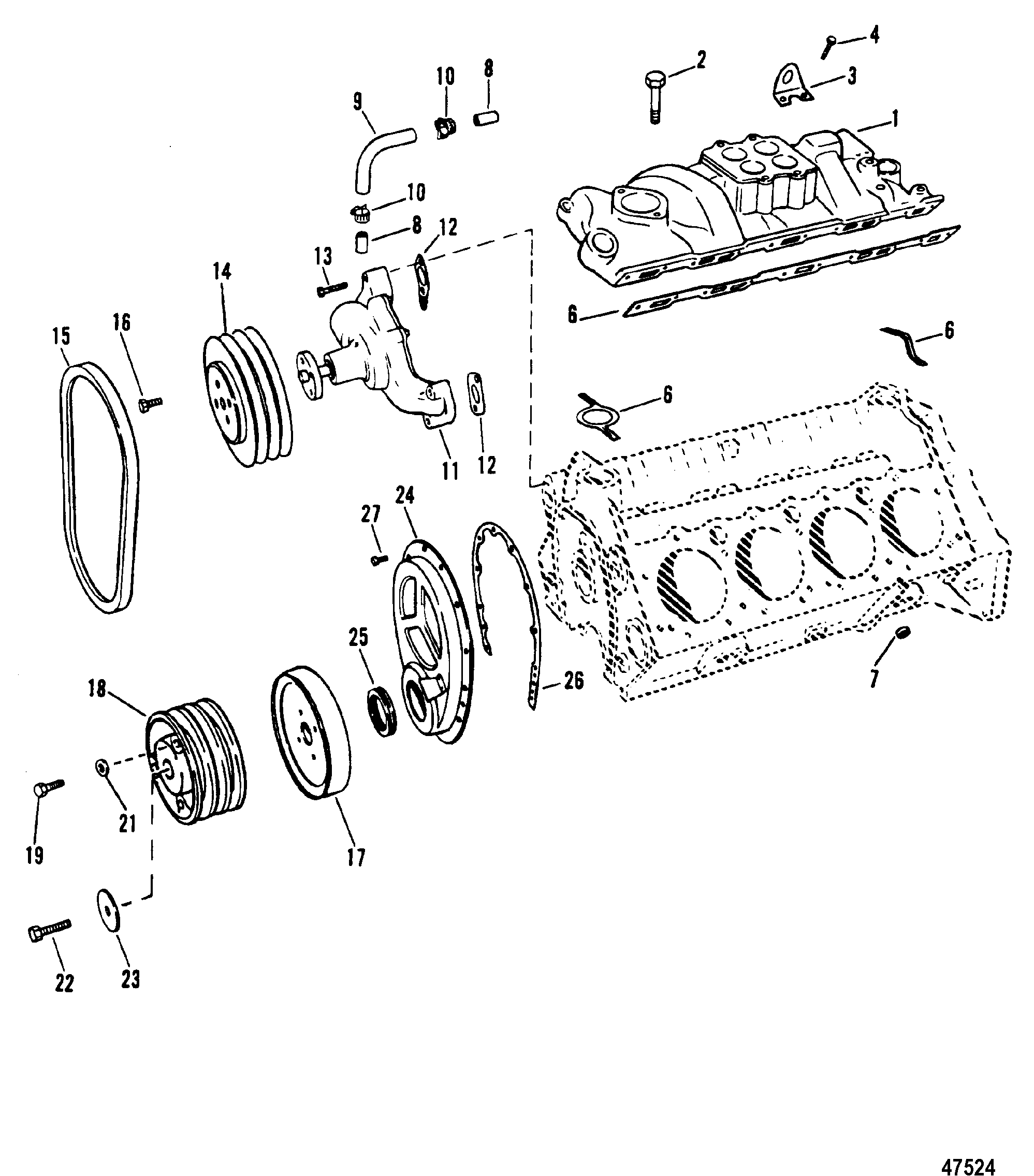

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 72608T



MANIFOLD 1 72608 This Part is No Longer Available
2 10-37510



BOLT, (1.5 In.) 12
No longer made, limited availability
2 10-805611



SCREW, (.375-16 x 1.750) 4 10-811574
3 54-64628



LIFTING EYE 1

4 10-34354



SCREW, (.375-16 x 1.50) 2

6 27-805722A1
676-9-61217

GASKET SET 1

7 34543



VALVE, Oil Bypass 2

8 22-806242



CONNECTOR 2

9 32-805987



HOSE 1

10 54-815504412



CLAMP, Worm Gear 2

11 8504541



PUMP ASSEMBLY 1 811573
12 27-49110



GASKET, Circulating Water Pump Mount 2

13 10-805611



SCREW, (.375-16 x 1.750) 4 10-811574
14 19692T01



PULLEY, (7 In. Diameter) 1 19692T
15 57-48122Q



BELT, (48 Inches) 1 57-48122
16 10-47277



SCREW, (.312-24 x .750) (3/4") 4

17 845625T2



DAMPER 1 811556
18 90081T



PULLEY 1

19 10-358701



SCREW, (.375-16 x 2.00) 3

21



WASHER 3

22



SCREW, (.500-20 x 2.500) 1 10-811559
23 12-49103



WASHER 1

24 811570



COVER ASSEMBLY 1
This Part is No Longer Available
25 26-8219471



SEAL 1

26 27-811572



GASKET 1
27 10-35366



SCREW, (.250-20 x .563) 10
