502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Carburetor And Linkage

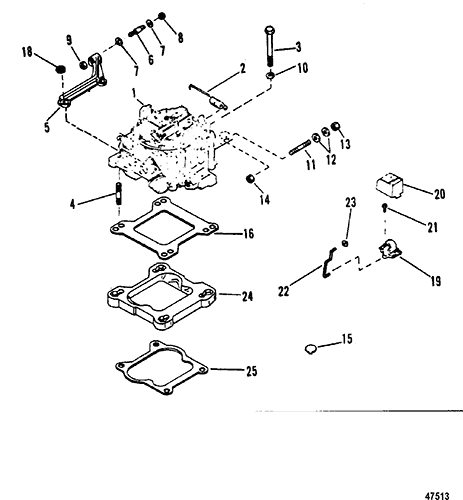

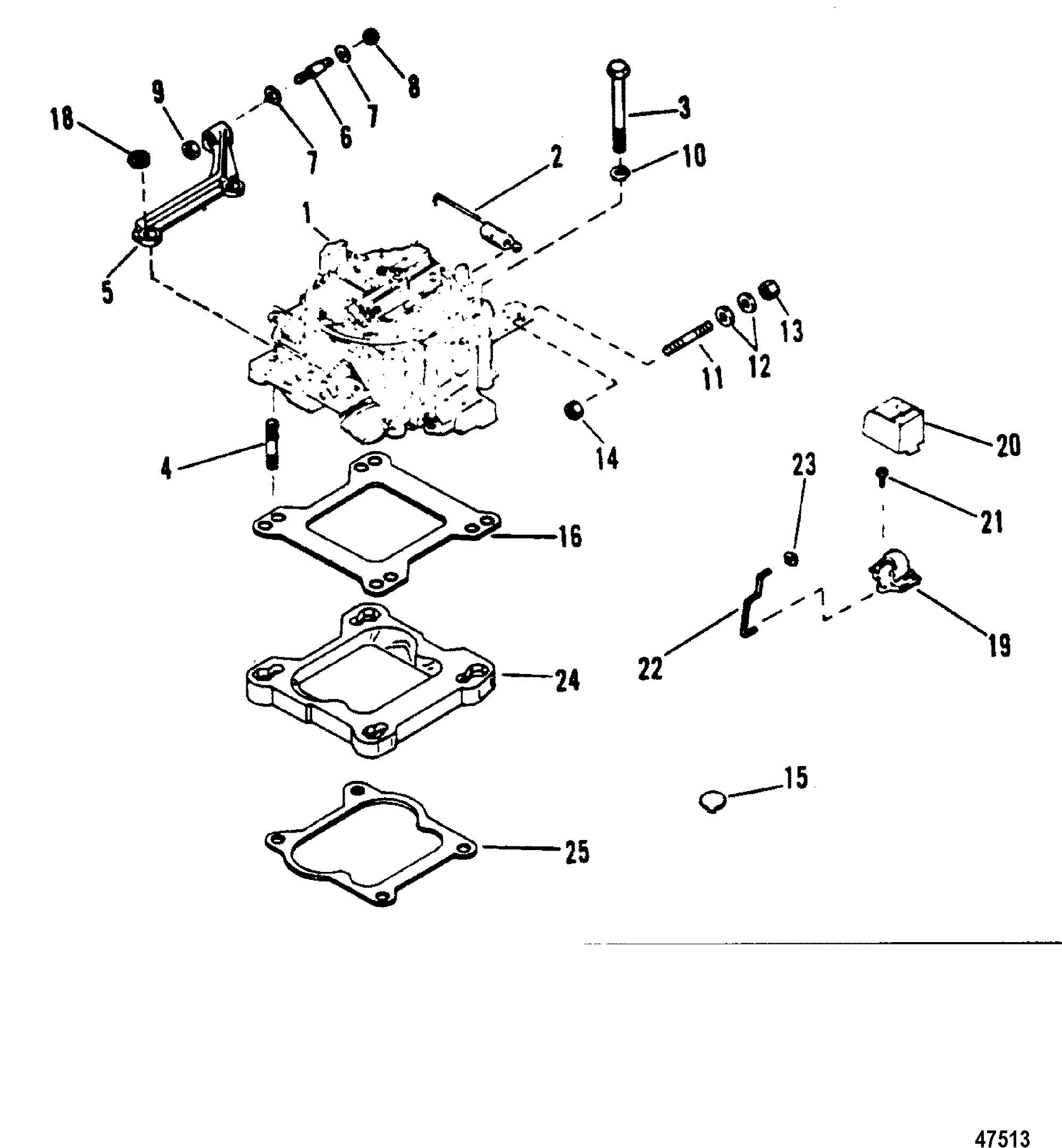

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3310-806971A1



CARBURETOR ASSEMBLY (WEBER) 1
This Part is No Longer Available
2 24-897454



SPRING 1 24-32817
3 10-35385



SCREW, (.312-18 x 1-3/4) 2

4 16-70237



STUD, (.312-18/.312-24 x 2.620) 2

5 817685T



BRACKET 1
This Part is No Longer Available
6 16-818192



STUD 1

7 12-24664



WASHER, (M4 x 20) 2

8 11-826709109



NUT, (.250-28) 1 11-35045
9 11-8267089



NUT, (.250-28) 1 11-20361
10 13-39107

700-21496
LOCKWASHER, (.312-24) 2

11 16-96112



STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

12 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 2

13 11-8267089



NUT, (.250-28) 1 11-20361
11-826709109d> 11-826709109



NUT, (.250-28) 1 11-35045
15 22-48358T



PLUG, (.375) 1 22-48358
16 27-41610
676-9-61001

GASKET 1

18 11-29250



NUT, (.312-24) 2

19 71464A01



CHOKE 1 71464
20 63922



COVER 1

21 10-69235



SCREW, (.190-24 x .500) 1

22 806939



ROD, Choke - Automatic 1
This Part is No Longer Available
23 54-89668



CLIP 1
This Part is No Longer Available
24 818568T



SPACER 1
This Part is No Longer Available
25 27-524572



GASKET 1
