502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Alternator (Mando) AC155603

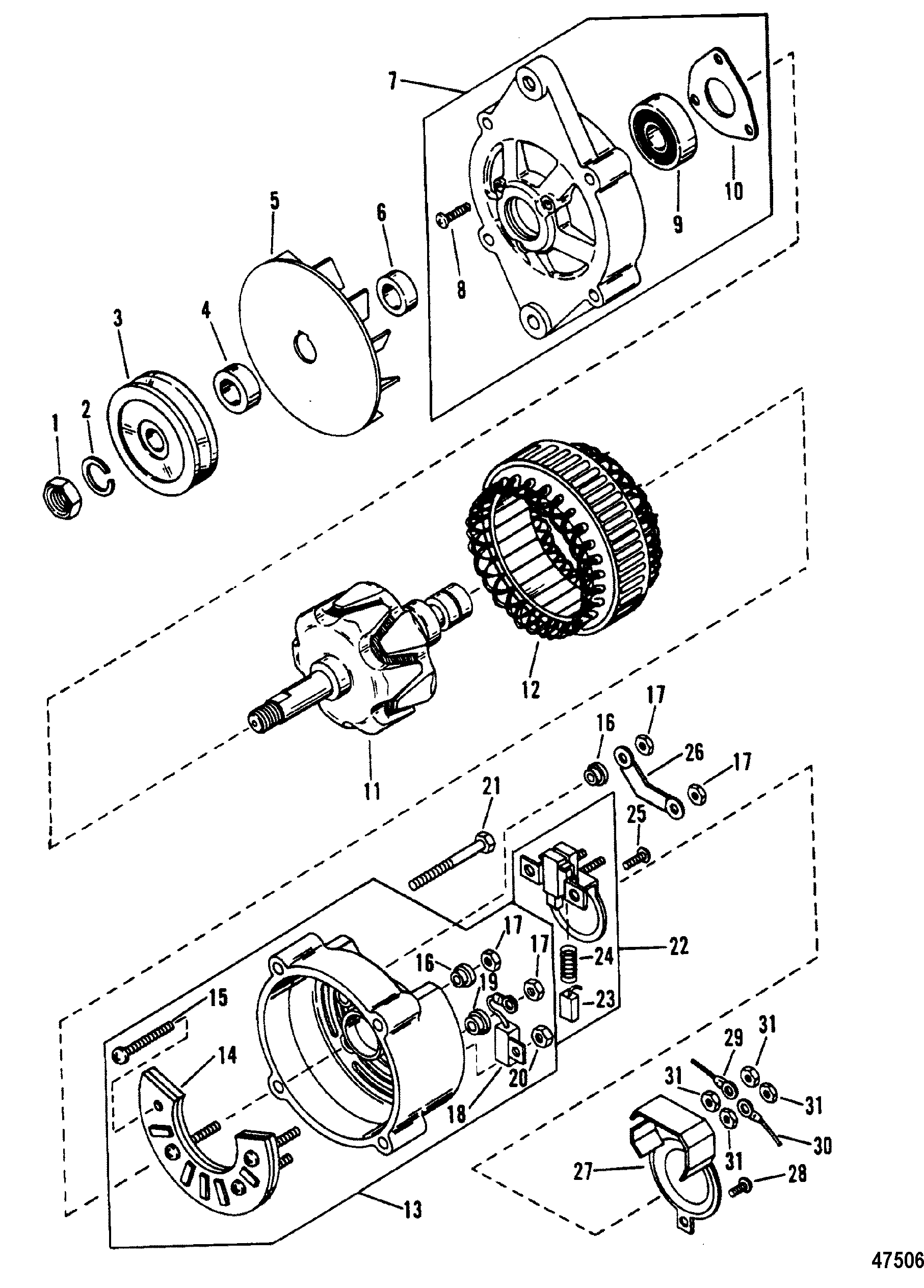

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 817119A4 620-3186M 676-9-19101

ALTERNATOR 1

1 11-809136



NUT 1 11-42768
2 13-42769



LOCKWASHER 1

3 809134



PULLEY 1 42770
4 23-811865



SPACER 1

5 811866



FAN 1   This Part is No Longer Available
6 23-811867



SPACER 1   This Part is No Longer Available
7 811868



BRACKET ASSEMBLY, Front 1

8 10-811869



SCREW 3   This Part is No Longer Available
9 30-811870



BEARING, Ball 1

10 811871



RETAINER 1   This Part is No Longer Available
11 811872



ROTOR ASSEMBLY 1   This Part is No Longer Available
12 811873T



STATOR ASSEMBLY 1 811873 This Part is No Longer Available
13 811874T



BRACKET ASSEMBLY, Rear 1 811874
14 811875T



RECTIFIER ASSEMBLY 1 811875
15 10-811876



SCREW 1   This Part is No Longer Available
16 811877



HOLD 1   This Part is No Longer Available
17 11-811878



NUT 2

18 811879



CONDENSER ASSEMBLY 1

19 811880



HOLD 1

20 11-811881



NUT 1

21 10-42773



THRU BOLT 4   This Part is No Longer Available
22 811883T



REGULATOR ASSEMBLY 1 811883
23 811884



BRUSH 2

24 24-811885



SPRING 2   This Part is No Longer Available
25 10-811886



SET SCREW 2
No longer made, limited availability
26 811887



TERMINAL 1   This Part is No Longer Available
27 811888



COVER 1   This Part is No Longer Available
28 10-811889



SET SCREW 1   This Part is No Longer Available
29 84-811890



WIRE, Red 1   This Part is No Longer Available
30 84-811891



WIRE, Purple 1   This Part is No Longer Available
31 11-811878



NUT 4
