502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Flame Arrestor

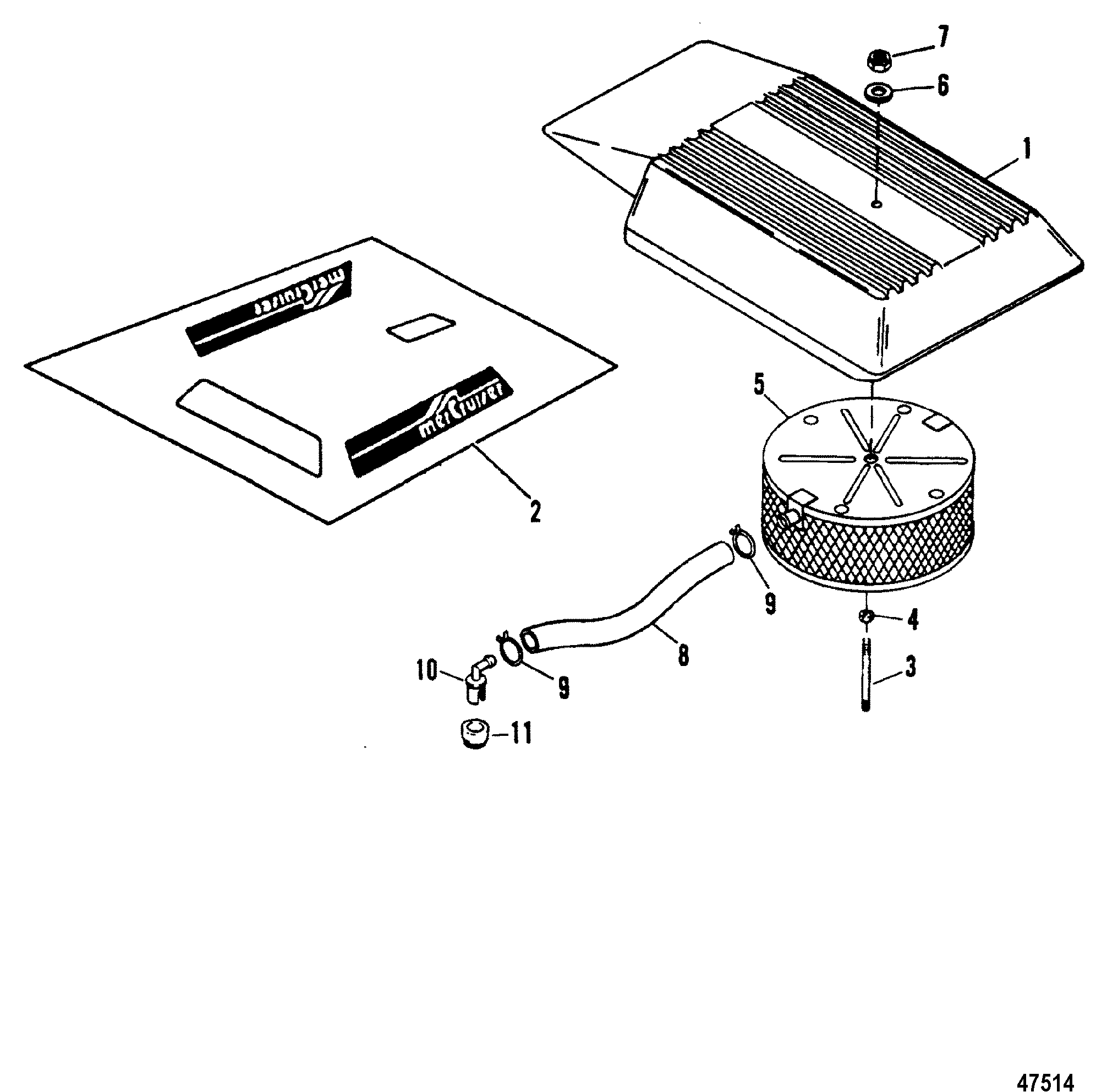

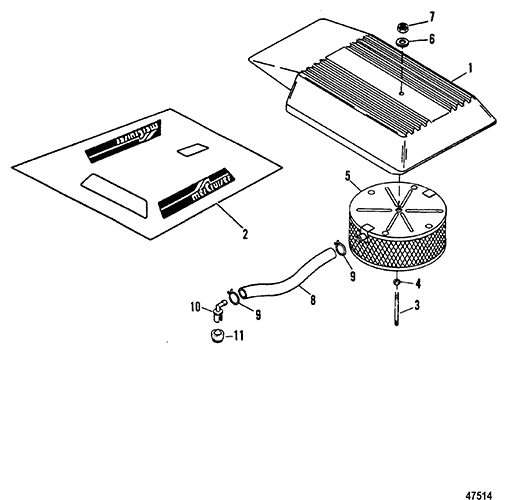

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | ||||||
| 2 | 37-812776A17 | DECAL SET | 1 | This Part is No Longer Available | |||||
| 3 | 16-814953 | STUD | 1 | This Part is No Longer Available | |||||
| 4 | 11-28941 | NUT | 1 | ||||||
| 5 | 805299A1 | FLAME ARRESTOR | 1 | ||||||
| 6 | 12-86400 | WASHER | 1 | ||||||
| 7 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 8 | 32-8M0062669 | HOSE | 2 | 32-9331512 | |||||
| 9 | 54-53101 | CLAMP | 4 | This Part is No Longer Available | |||||
| 10 | 97850T | ELBOW, 90 Degree, Breather - (90 DEGREES) | 2 | 97850 | |||||
| 11 | 25-811553 | GROMMET | 2 |
