502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Oil Pan And Oil Pump

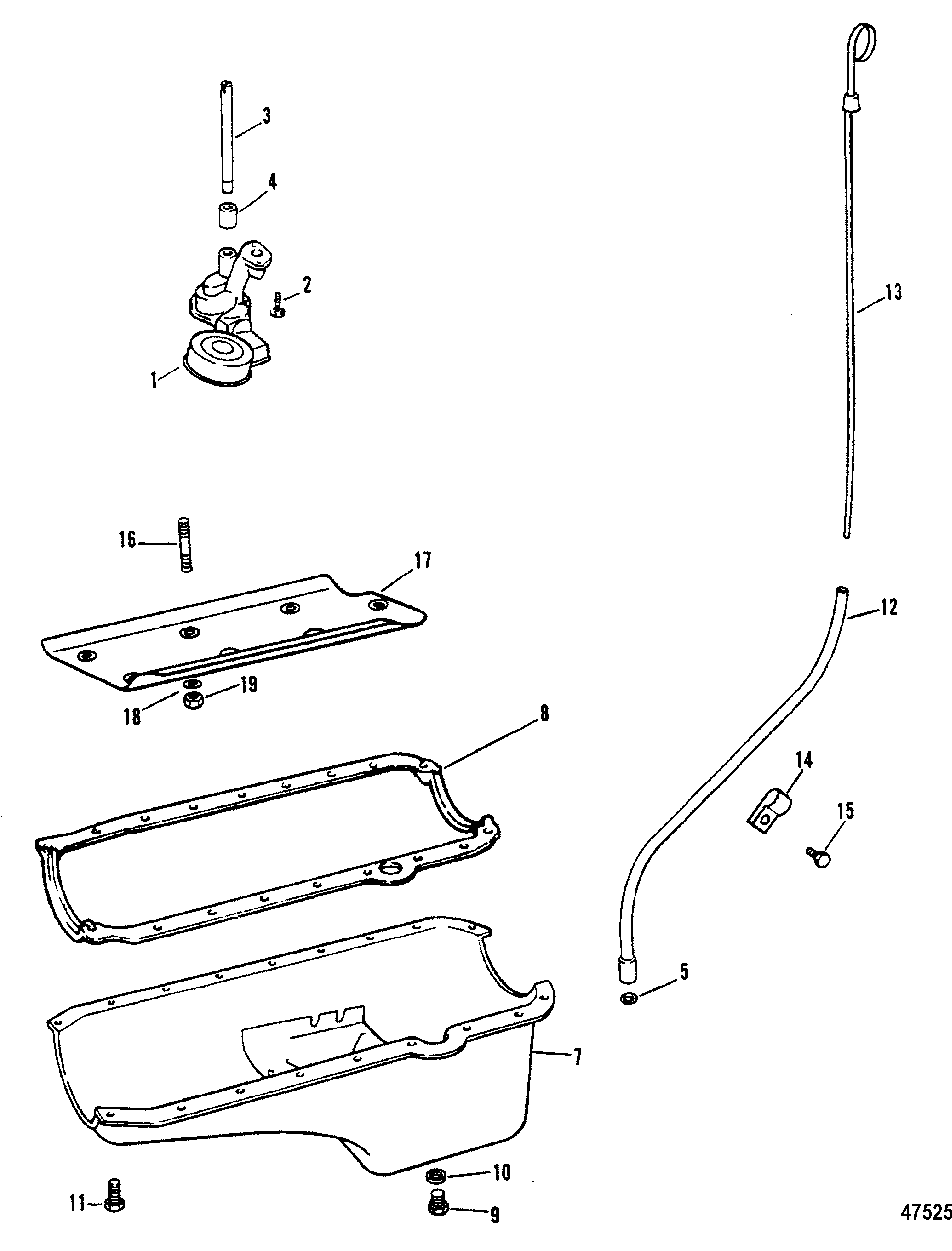

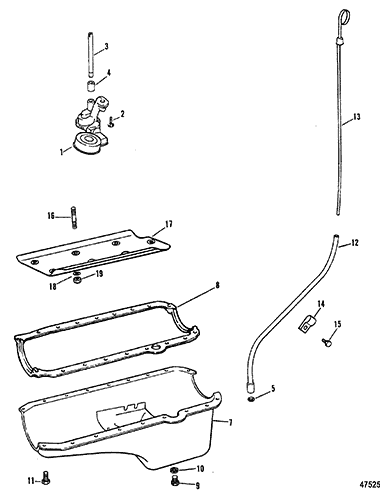

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827643 | PUMP ASSEMBLY, Oil | 1 | ||||||
| 2 | 10-813071 | SCREW | 1 | No longer made, limited availability | |||||
| 3 | 14761 | SHAFT AND RETAINER | 1 | ||||||
| 4 | 23-36183 | RETAINER | 1 | ||||||
| 5 | 26-45825 | SEAL | 1 | This Part is No Longer Available | |||||
| 7 | 845668T | PAN ASSEMBLY | 1 | 811549 | |||||
| 8 | 27-845628 | GASKET | 1 | 27-811566 | |||||
| 9 | 10-49956 | SCREW, Drain | 1 | ||||||
| 10 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 1 | ||||
| 11 | 10-34500 | SCREW, (.312-18 x .625) | 20 | ||||||
| 12 | 818631A6 | TUBE ASSEMBLY, Dipstick | 1 | ||||||
| 13 | 861942T9 | DIPSTICK (METAL) | 1 | 805567T | |||||
| 13 | 861942T9 | DIPSTICK (PLASTIC) | 1 | 818634T | |||||
| 14 | 54-42553 | J CLIP | 1 | ||||||
| 15 | 10-98253 | SCREW, (.250-20 x .500) | 1 | ||||||
| 16 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | ||||||
| 17 | 843945T | BAFFLE | 1 | 811682 | |||||
| 18 | 12-49112 | WASHER | 4 | This Part is No Longer Available | |||||
| 19 | 11-37500 | NUT, (3/8-16) | 4 |
