502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Engine Mounting

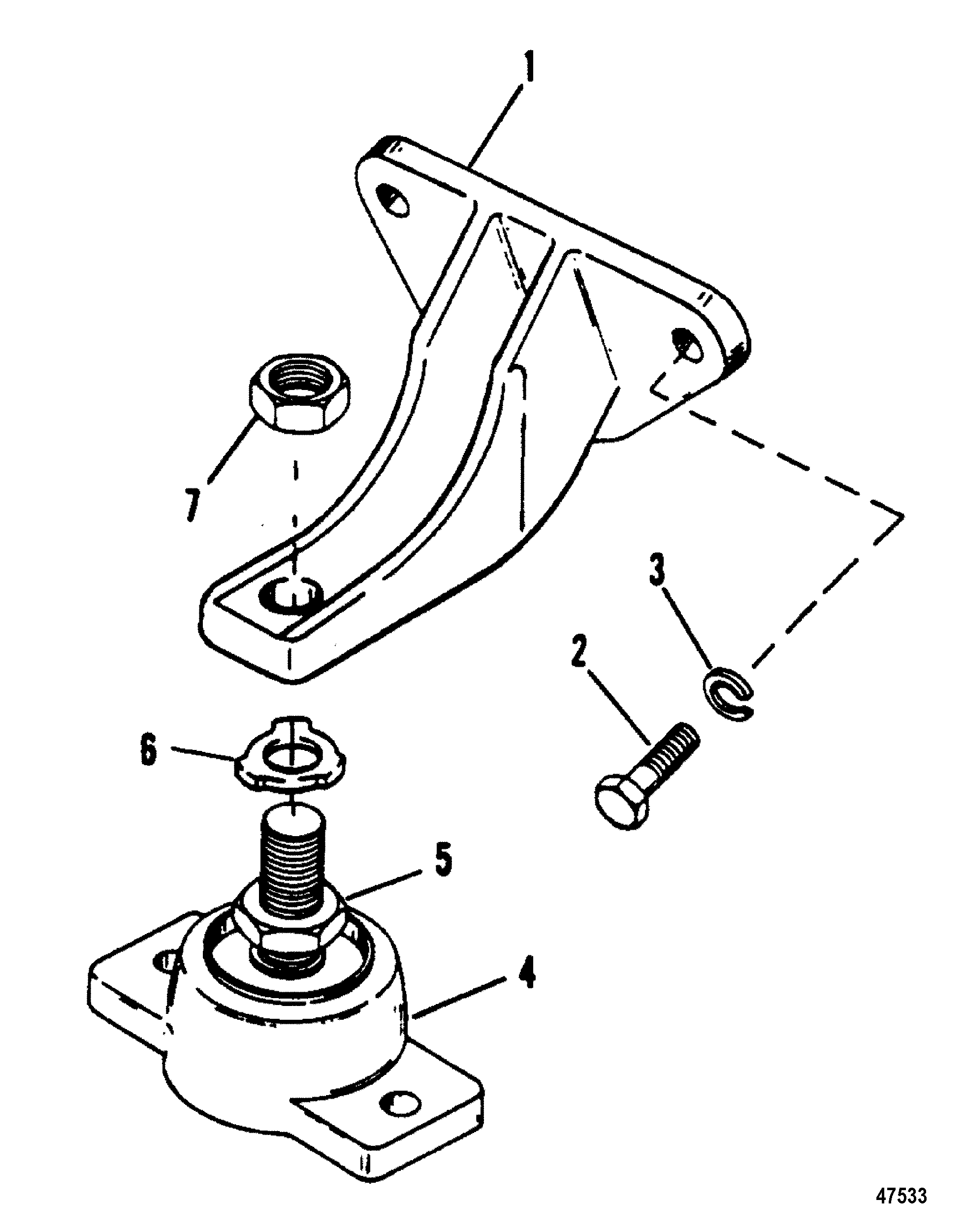

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET (FRONT) | 2 | ||||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) (1-3/8") | 6 | ||||||
| 3 | 13-35048 | LOCKWASHER, (.375) | 6 | ||||||
| 4 | 814263A1 | BASE ASSEMBLY | 2 | ||||||
| 5 | 11-816331 | NUT, (.750-16) | 2 | ||||||
| 6 | 14-12657 | TAB WASHER | 2 | ||||||
| 7 | 11-859126 | NUT | 2 | 11-49252 |
