502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Crankshaft, Pistons, And Connection Rods

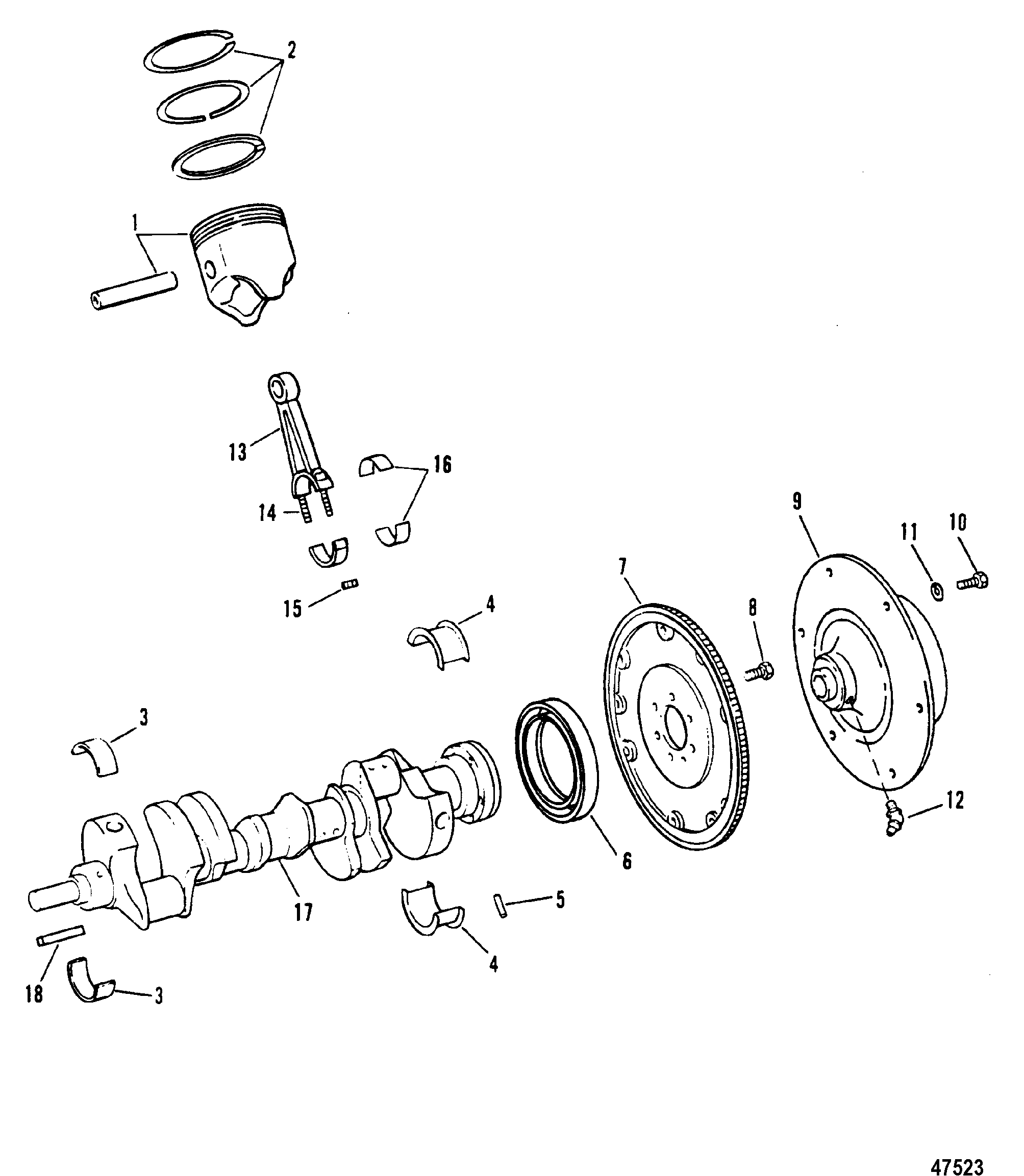

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 737-827664



PISTON ASSEMBLY (STANDARD) GM ENGINE CODE #1FJ,2FJ & 3FJ 8 737-821090
1 737-827665A1



PISTON ASSEMBLY (.032 O.S.) GM ENGINE CODE #1FJ,2FJ & 3FJ AR 737-817412 This Part is No Longer Available
2 39-827660T



RING, Piston (STANDARD) GM ENGINE CODE #1FJ,2FJ & 3FJ 8 39-821091
2 737-827665A1



RING SET (.032 O.S.) GM ENGINE CODE #1FJ,2FJ & 3FJ AR 39-817413 This Part is No Longer Available
1 737-827664



PISTON ASSEMBLY, Standard (STANDARD) GM ENGINE CODE #4FJ & 5FJ 8

1 737-827665A1



PISTON ASSEMBLY, (.030 O.S.) (.030 O.S.) GM ENGINE CODE #4FJ & 5FJ AR 737-827665 This Part is No Longer Available
2 39-827660T



RING SET, Piston - Standard (STANDARD) GM ENGINE CODE #4FJ & 5FJ 8 39-827660
2 737-827665A1



RING, Piston (.030 O.S.) GM ENGINE CODE #4FJ & 5FJ AR 39-827661 This Part is No Longer Available
3/4 23-818473001



BEARING SET, Main - Standard (STANDARD) 1 23-818473
3/4 23-818474



BEARING SET, Main - .001 Undersize (.001 USA) AR

3/4 23-818475



BEARING SET, Main - .002 Undersize (.002 USA) AR

3/4 818476001



BEARING SET, Main - .010 Undersize (.010 USA) AR 23-818476
3/4 23-818477



BEARING SET, Main - .020 Undersize (.020 USA) AR

5 17-843378



PIN, Dowel (1/4 In. Diameter) (1/4" DIA.) 1 17-35312
6 26-811554



SEAL 1

7 230-843374T1



FLYWHEEL 1 230-811561
8 10-845757



SCREW, (.437-20 x 1.00) 6 10-49845
9 861523A9



COUPLER ASSEMBLY, Engine 1 18311A17
10 10-14883



SCREW, (.375-16 x 1.12) 6

11 12-20572



WASHER, (.390 x .750 x .093) 6

12 22-49099



FITTING 2

13 614-9641T



CONNECTING ROD ASSEMBLY 8 614-9641
14 10-19234



SCREW, (.437-20) 16

15 11-58056



NUT 16
No longer made, limited availability
16 23-85726001



BEARING SET, Connecting Rod - Standard (STANDARD) 8 23-85726
16 23-85727



BEARING SET, Connecting Rod - (.001 Undersize) (PAIR - .001 USA) AR

16 23-85728



BEARING SET, Connecting Rod - (.002 Undersize) (PAIR - .002 USA) AR
This Part is No Longer Available
16 23-85691



BEARING SET, Connecting Rod - (.010 Undersize) (PAIR - .010 USA) AR

16 23-85729



BEARING SET, Connecting Rod - (.020 Undersize) (PAIR - .020 USA) AR

17 429-843083T



CRANKSHAFT 1 429-811550
18 28-845607



KEY 1 28-811558
