502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Wiring Harness And Electrical Components (Exhaust Below)

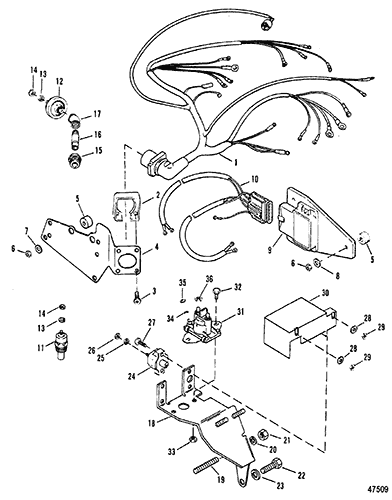

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-96020A6



HARNESS ASSEMBLY 1

2 26079A2



PLATE KIT, Wire Harness Mount 1

3 10-15001



SCREW, (#8-16 x .875) 4

4 98493A2



BRACKET 1
This Part is No Longer Available
5 23-92152T



SPACER, (.27 x .75 x .38) 6 23-92152
6 11-64015



NUT, (.250-20) 6

7 23-806981



SPACER 3 23-821302
8 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

9 817509T



IGNITION AMPLIFIER 1
This Part is No Longer Available
10 84-15275A1



HARNESS ASSEMBLY 1
This Part is No Longer Available We have 1 available
11 806490T
676-9-42400

SENDER ASSEMBLY, Water Temperature 1 97257A1
11 49734



SENDER ASSEMBLY, Water Temperature (DUAL) OPT. 49734A1
12 8M0068784



SENDER ASSEMBLY, Oil Pressure 1 815425
12 37293T



SENDER ASSEMBLY, Oil Pressure (DUAL) OPT. 37293
13 13-26996



LOCKWASHER, (#10) Stainless Steel 2

14 11-68219



NUT, (#10-32) Stainless Steel 2

15 22-48556



BUSHING , Reducer (.250 To .125) 1

16 22-885153



NIPPLE 1 22-42554
17 22-46932



ELBOW 1
This Part is No Longer Available
18 818384T1



BRACKET 1 818384T This Part is No Longer Available
19 16-64281



STUD, (.375-16/.375-24 x 1.880) 1
This Part is No Longer Available
20 13-35048

700-21495
LOCKWASHER, (.375) 1

21 11-46335



NUT, (.375-24) 1

22 10-47462



SCREW, (.437-14 x 1.250) 1

23 13-32993



LOCKWASHER, (.437) 1

24 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
25 13-26996



LOCKWASHER, (#10) Stainless Steel 2

26 11-68219



NUT, (#10-32) Stainless Steel 2

27 10-45862



SCREW, (#10-32 x .875) (7/8") 2

28 12-56681



WASHER, (.203 x .500 x .032) 2

29 11-61356



NUT, (#10-32) Reduced Hex 2

30 85-96819T



INSULATOR 1

31 89-96054T

700-72390
SOLENOID ASSEMBLY, Starter 1 89-96054
32 10-96138



SCREW, (1/4-28 x 5/8) (5/8") 2 10-47910
33 11-20088



NUT 2
This Part is No Longer Available
34 13-26992



LOCKWASHER, (.250) Stainless Steel 2

35 11-26419



NUT, (#8-32) Brass (8-32) 2
36 11-94330



NUT, (.250-20) Brass (1/4-20) 2
