502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Shift Bracket

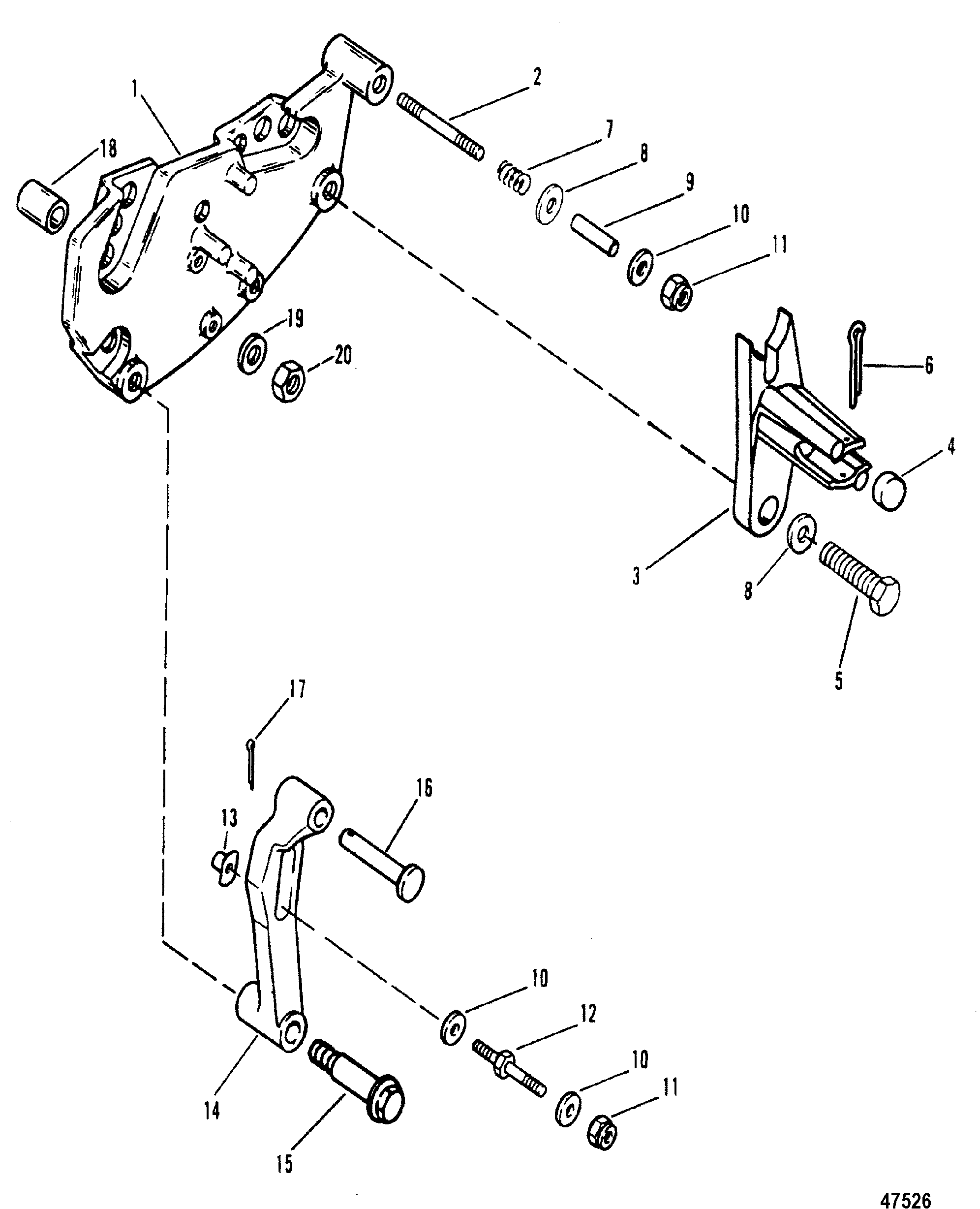

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15



BRACKET ASSEMBLY 1 99237A10
2 16-865154A02



STUD, (.250-20/.250-28 x 2.120) 1 16-987981
3 865434A02



RETAINER 1 123811
4 23-98828



SPACER 1

5 10-53167



SCREW, (.312-18 x .880) 1

6 18-328571



COTTER PIN 1 18-32857
7 24-98880



SPRING 1

8 12-56720



WASHER, (.330 x .750 x .060) Stainless Steel 2

9 N.S.S.



Not Sold Separate (ORDER REF. #2) 1

10 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 4

11 11-8267119



NUT, (.250-28) 2 11-13438
12 16-96112



STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

13 11-63341



TEE NUT 1

14 863911A12



LEVER 1 138981
15 10-13743



SCREW, (.312-18 x 1.843), Shoulder 1

16 17-68402



PIN, (.250 x 1.13) 1

17 18-210711



COTTER PIN 1 18-21071
18 23-806981



SPACER 3 23-821302
19 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

20 11-64015



NUT, (.250-20) 3
