502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Power Steering Components

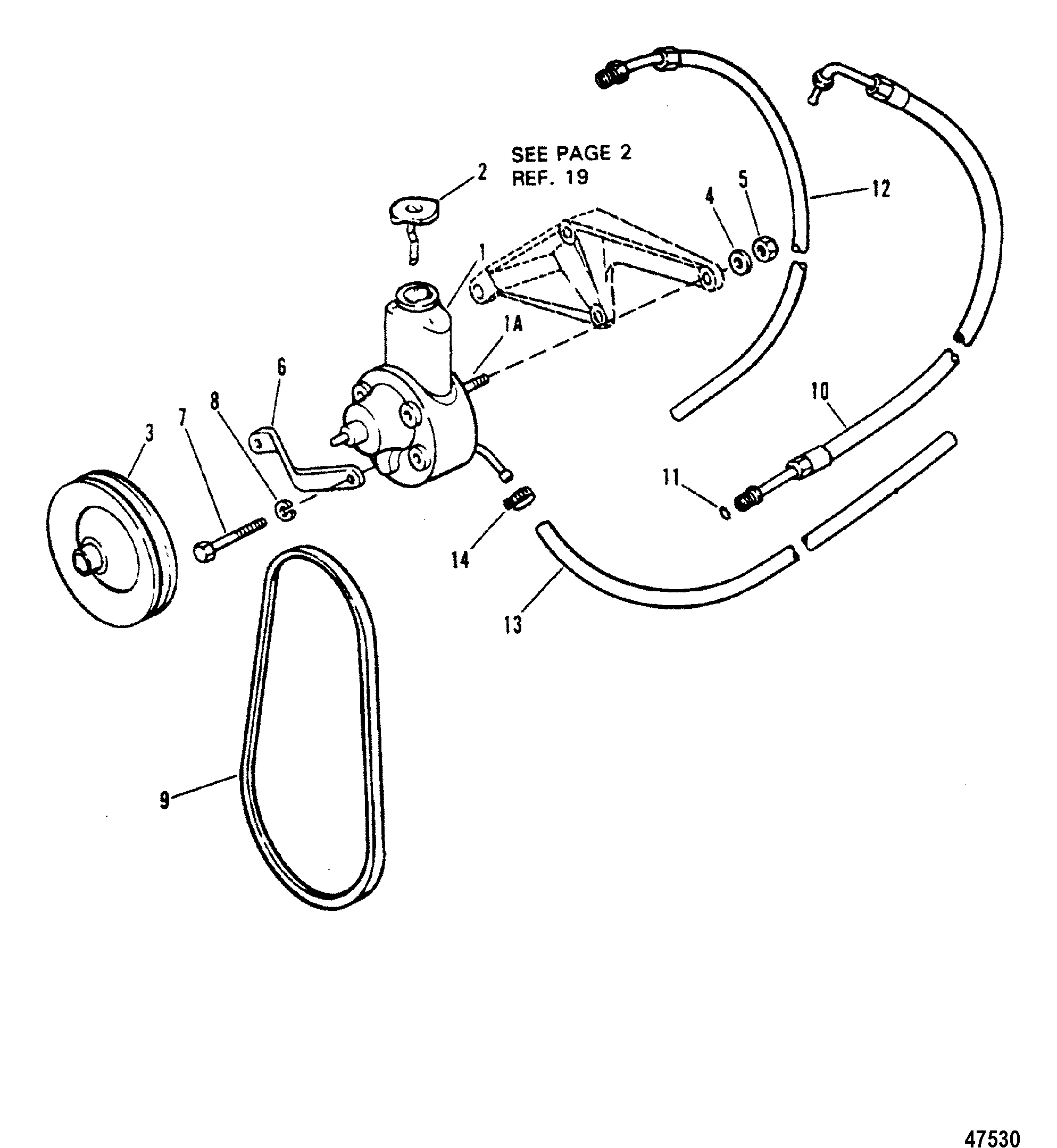

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Mando) AC155603
- Alternator (Prestolite)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft, Pistons, And Connection Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhasut Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 2, 7-8" Diameter End Cap
- Starter Motor 3, 1-4" Diameter End Cap
- Thermostat Housing(Standard Cooling)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components (Distributor)
- Wiring Harness And Electrical Components (Exhaust Below)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD, (M10) | 2 | ||||||
| 2 | 36-95805 | CAP | 1 | ||||||
| 3 | 73873A1 | PULLEY | 1 | ||||||
| 4 | 23-72057 | SPACER, (1.00 Outside Diameter x .125 x Thick) | 2 | ||||||
| 5 | 11-90517 | NUT, (M10) | 2 | ||||||
| 6 | 98813F1 | BRACE | 1 | 98813A1 | |||||
| 7 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 9 | 57-812427Q | V BELT | 1 | 57-812427T | |||||
| 10 | 32-90494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 12 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk) (FITTINGS ON ONE END) | 1 | ||||||
| 13 | 32-8M0062341 | HOSE, (216.00 Inches Bulk), PUMP TO OIL COOLER | 1 | 32-5251915 | |||||
| 14 | 54-815504206 | CLAMP, Worm Gear | 3 |
