502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Alternator (Prestolite)

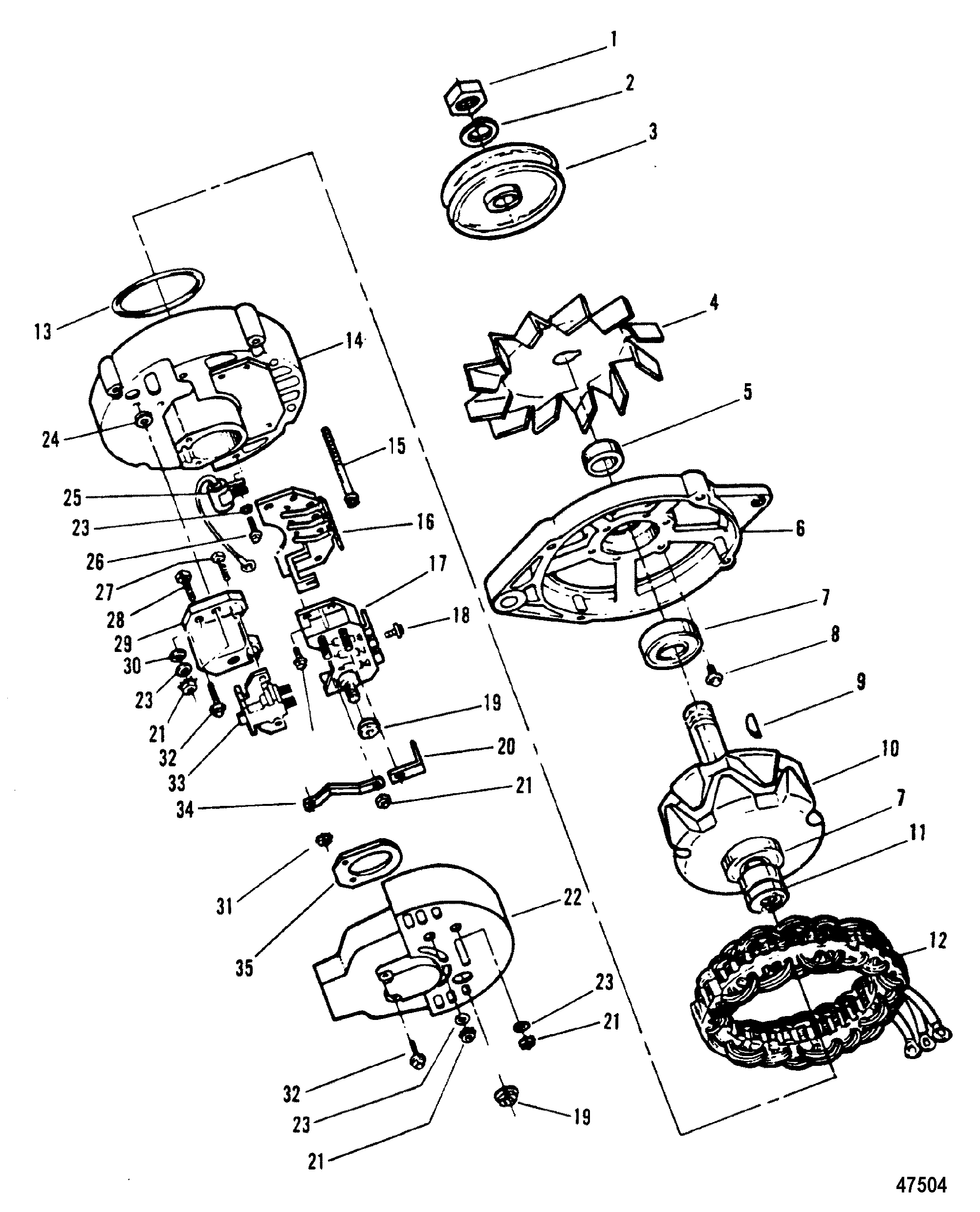

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 817119A4 620-3186M 676-9-19101

ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP) 1 92497A3
1 390-7027



NUT 1
This Part is No Longer Available
2 390-7033



LOCKWASHER 1
This Part is No Longer Available
3 390-8637



PULLEY 1
This Part is No Longer Available
4 390-7004



FAN 1

5 813969



SPACER 1
This Part is No Longer Available
6 813961



HOUSING, Front 1
This Part is No Longer Available
7 390-7005



BEARING, Ball 2
This Part is No Longer Available
8 10-813978A1



SCREW 4
This Part is No Longer Available
9 390-7034



KEY 1
This Part is No Longer Available
10 813962



ROTOR 1
This Part is No Longer Available
11 390-7014



SLIP RING 1
This Part is No Longer Available
12 813963



STATOR 1
This Part is No Longer Available
13 390-7007



RETAINER 1
This Part is No Longer Available
14 813964



HOUSING, Rear 1
This Part is No Longer Available
15 10-813975



THRU BOLT 4
This Part is No Longer Available
16 813966



DIODE BRIDGE 1
This Part is No Longer Available
17 813965



DIODE FIELD 1
This Part is No Longer Available
18 10-813981



SCREW 3
This Part is No Longer Available
19 11-813976



NUT 2
This Part is No Longer Available
20 813973



STRAP 1
This Part is No Longer Available
21 390-7021



NUT 5
This Part is No Longer Available
22 813971



COVER 1
This Part is No Longer Available
23 12-813984



WASHER 5
This Part is No Longer Available
24 390-7022



WASHER 2
This Part is No Longer Available
25 813972



CAPACITOR 1
This Part is No Longer Available
26 10-813982



SCREW 1
This Part is No Longer Available
27 10-813979



SCREW 2
This Part is No Longer Available
28 10-813983



SCREW 2
This Part is No Longer Available
29 813974



REGULATOR, Voltage 1
This Part is No Longer Available
30 12-813985



WASHER 2
This Part is No Longer Available
31 11-813977



NUT 2
This Part is No Longer Available
32 10-813980



SCREW 8
This Part is No Longer Available
33 813968



BRUSH ASSEMBLY 1
This Part is No Longer Available
34 813967



STRAP (D+) 1
This Part is No Longer Available
35 27-813970



GASKET 1    This Part is No Longer Available
