454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Audio Waring System

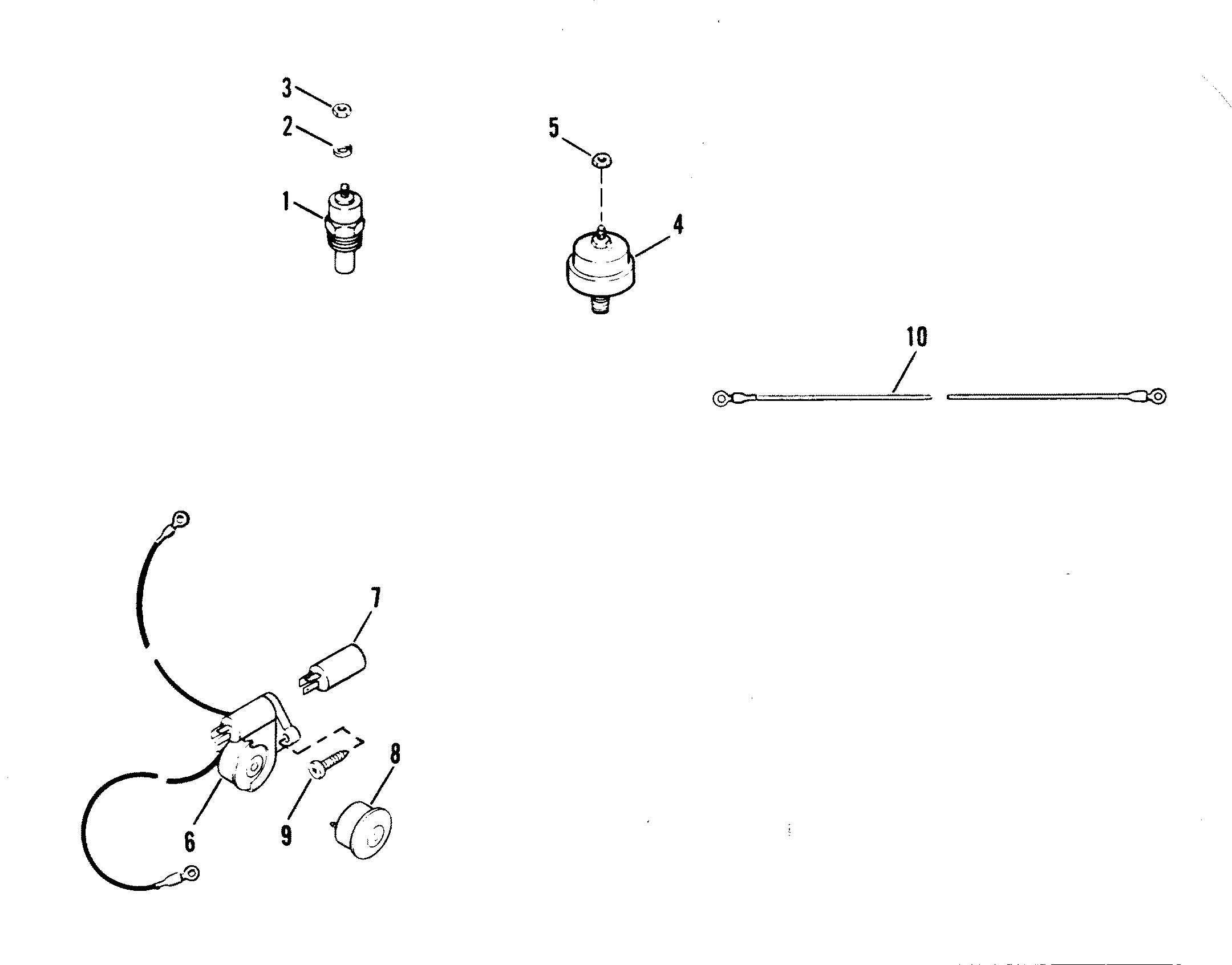

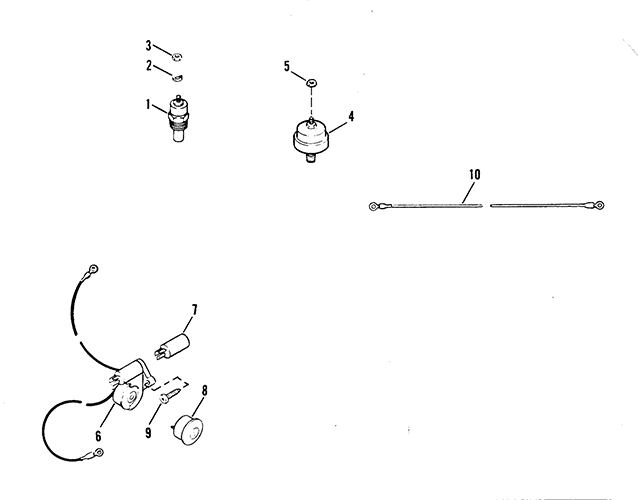

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | WATER TEMPERATURE SWITCH | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER | 1 | ||||||
| 3 | 11-45076 | NUT | 1 | ||||||
| 4 | 87-805605A1 | PRESSURE SWITCH | 1 | 38559 | |||||
| 5 | 11-45076 | NUT | 1 | ||||||
| 6 | 816492A14 | BUZZER HOUSING | 1 | 86047A11 | Please note - this is the new style buzzer, not horn & timer | ||||
| 7 | 816492A14 | TIMER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 68878A6 | HORN | 1 | ||||||
| 9 | 10-69013 | SCREW | 2 | ||||||
| 10 | 84-86044A4 | WIRE (TAN/BLUE - 36") | 1 | This Part is No Longer Available |
