454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Shift Bracket

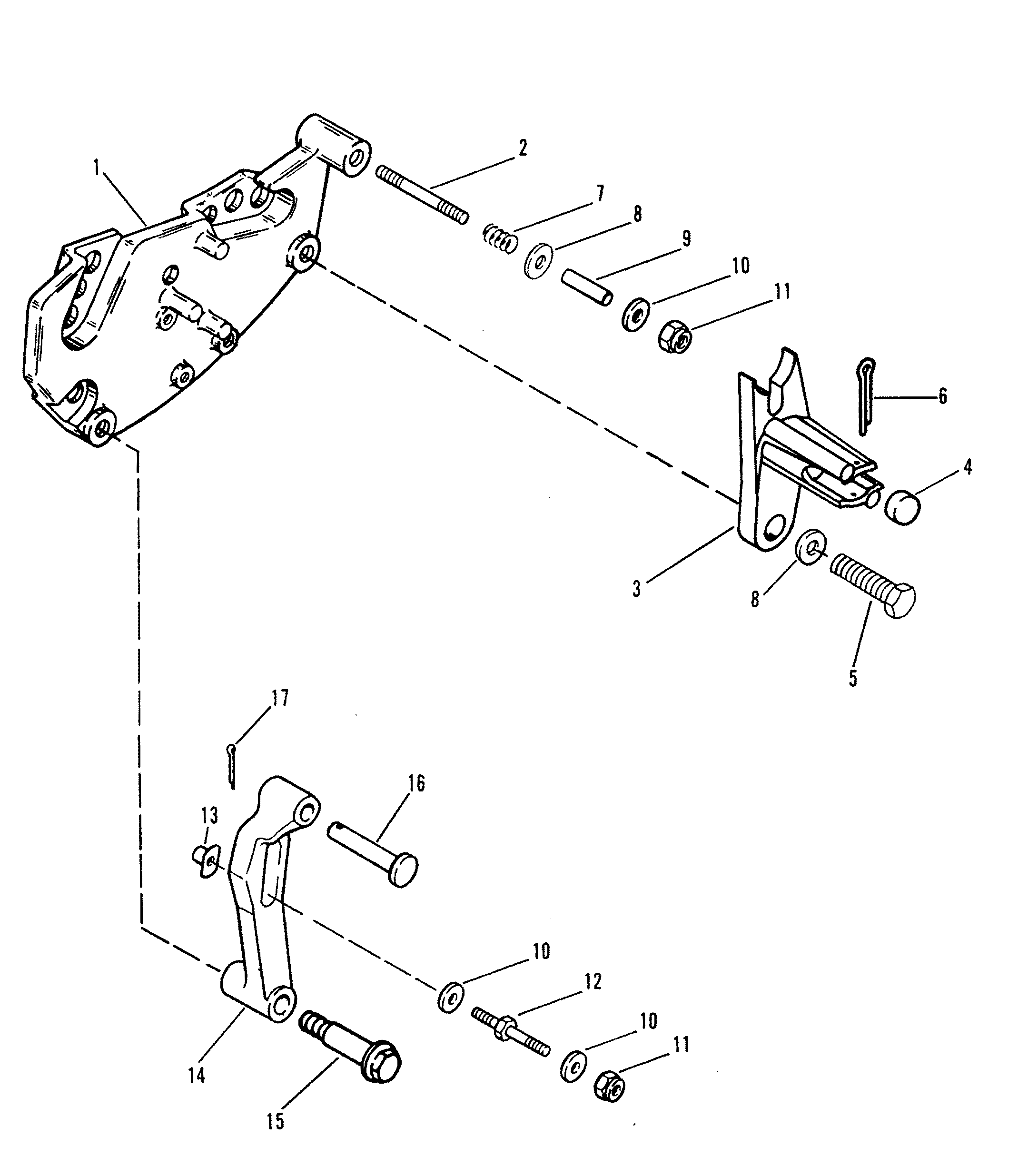

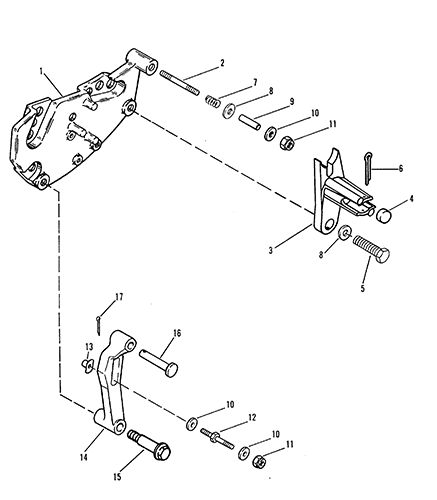

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | SHIFT BRACKET | 1 | 99237A10 | |||||
| 2 | 16-865154A02 | STUD | 1 | 16-98798 | |||||
| 3 | 865434A02 | RETAINER | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER | 2 | ||||||
| 9 | 16-987981 | SPACER | 1 | 23-98820 | |||||
| 10 | 12-35462 | WASHER | 4 | ||||||
| 11 | 11-8267119 | NUT | 2 | 11-13438 | |||||
| 12 | 16-96112 | STUD | 1 | ||||||
| 13 | 11-63341 | TEE NUT | 1 | ||||||
| 14 | 863911A12 | SHIFT LEVER | 1 | 138981 | |||||
| 15 | 10-13743 | SHOULDER SCREW | 1 | ||||||
| 16 | 17-68402 | SHOULDER PIN | 1 | ||||||
| 17 | 18-210711 | COTTER PIN | 1 | 18-21071 |
