454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Oil Pan And Oil Pump Castoil Pan

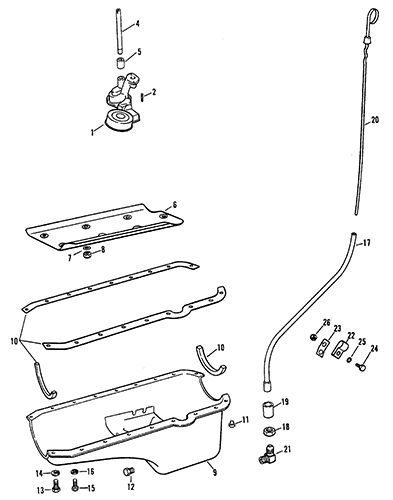

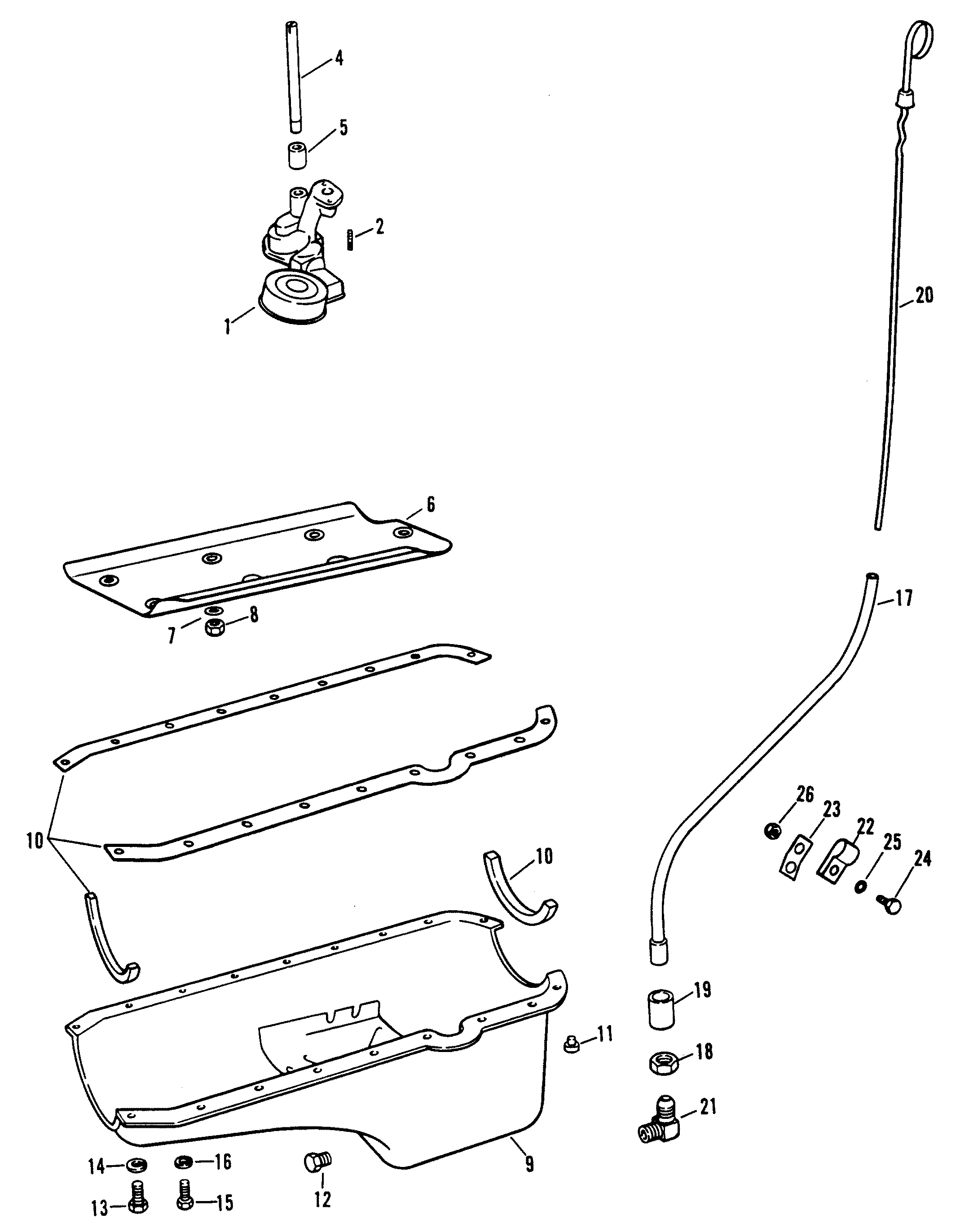

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 808698A1         OIL PUMP 1 19379 4 = [27-19315A88] GASKET SET, ENGINE OVERHAUL
2 16-845599         STUD, OIL PUMP TO CYLINDER BLOCK 1 16-49108
4 848511         SHAFT, OIL PUMP TO DISTRIBUTOR 1 49149
5 23-52193         RETAINER, OIL PUMP SHAFT 1   This Part is No Longer Available
6 49198         BAFFLE, OIL PAN (CYLINDER BLOCK) 1   This Part is No Longer Available
7 12-49112         WSHER, OIL PAN BAFFLE/OIL PUMP STUD 5   This Part is No Longer Available
8 11-37500         NUT, OIL PAN BAFFLE/OIL PUMP STUD 5

9 47552A5         OIL PAN 1   This Part is No Longer Available
10 27-52550         GASKET SET, OIL PAN 1

11 19-47815         PLUG, RUBBER - OIL PAN 2   This Part is No Longer Available
12 22-32803     700-21894   PLUG, PIPE - OIL PAN DRAIN 1 22-87543
13 10-55714         SCREW, OIL PAN (5/16-18 X 7/8") 10

14 13-26993         LOCKWASHER, OIL PAN SCREW 10

15 10-55715         SCREW, OIL PAN (1/4-20 X 7/8") 2

16 13-26992         LOCKWASHER, OIL PAN SCREW 2

17 86890A2         TUBE, OIL LEVEL GAUGE 1

18 11-47626         NUT, OIL LEVEL GAUGE TUBE 1
No longer made, limited availability
19 22-78039         COUPLING, OIL LEVER GAUGE TUBE 1
No longer made, limited availability
20 49661T         GAUGE, OIL LEVEL (DIPSTICK) 1   This Part is No Longer Available
21 22-47625         ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN 1   This Part is No Longer Available No longer made, limited availability
22 54-92338         CLIP, OIL LEVEL TUBE 1

23 48134         BRACKET, OIL LEVEL TUBE CLIP 1

24 10-54630         SCREW, CLIP TO BRACKET (5/8") 1
No longer made, limited availability
25 13-39107     700-21496   LOCKWASHER, CLIP SCREW 1

26 11-22053         NUT, CLIP SCREW 1
