454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Muffler Kit

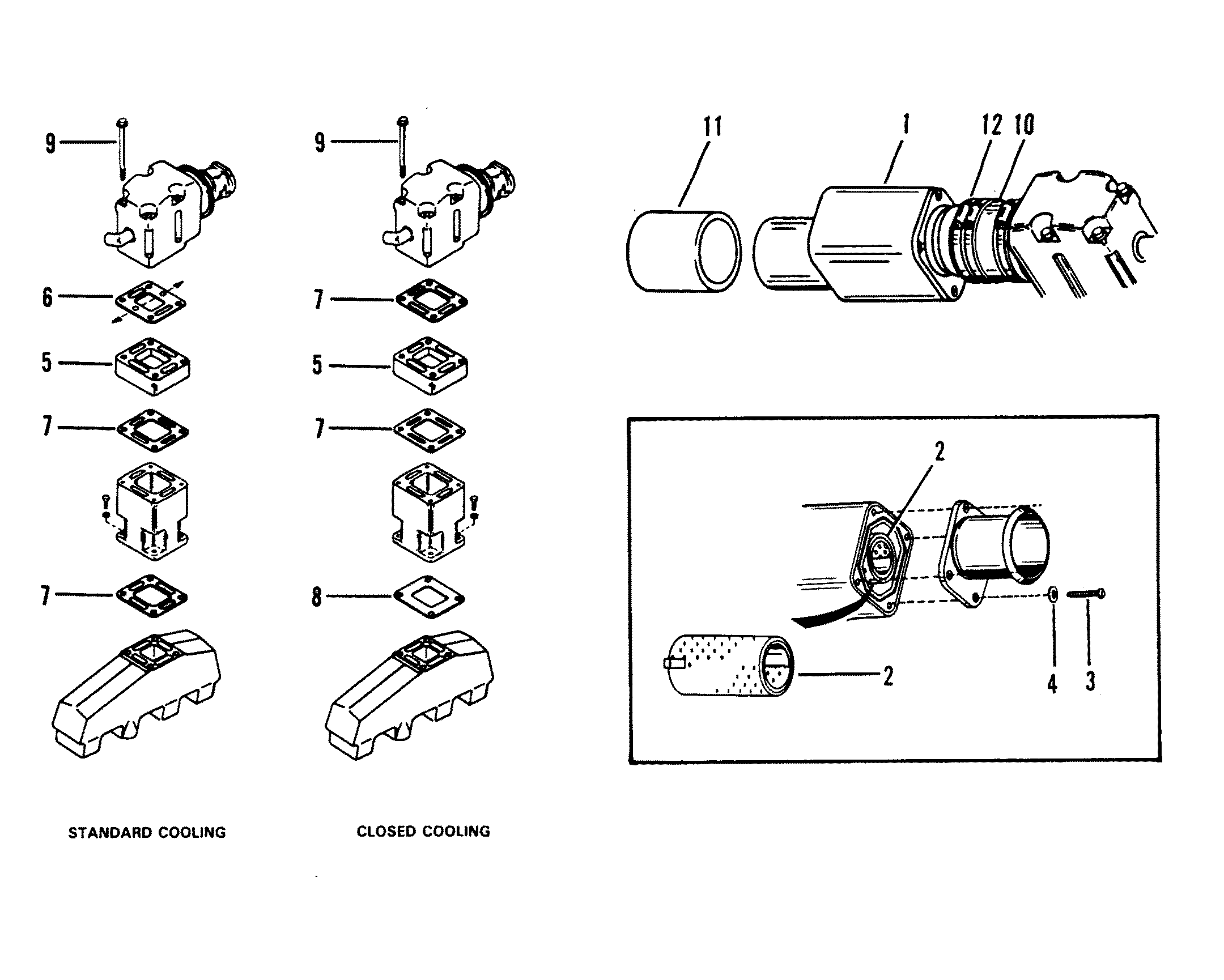

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 42-17705A3         MUFFLER KIT 1   This Part is No Longer Available
1 42-17705A1         MUFFLER 2   This Part is No Longer Available
2 42-17820A1         ELEMENT ASSEMBLY 2   This Part is No Longer Available
3 10-28667         SCREW 8

4 13-26992         LOCKWASHER 8

5 8M0063742         RISER ASSEMBLY 2 17833A1
6 27-863724         GASKET 2 27-41813
7 27-863726         GASKET 4 27-871051
8 27-8637251         GASKET 2 27-41811
9 10-813722         SCREW (7") 8   This Part is No Longer Available
9 10-813721         SCREW (8") 2   This Part is No Longer Available
- 42-17705A4         INSTALLATION KIT 1   This Part is No Longer Available
10 32-44348001         EXHAUST TUBE 2 32-44348
11 32-486594         EXHAUST HOSE 2   This Part is No Longer Available
12 54-815504372     700-01100   CLAMP 16 54-31765
