454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Flame Arrestor Old Design

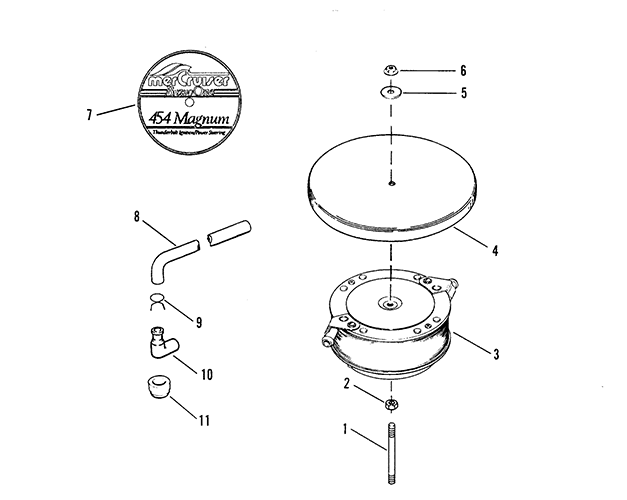

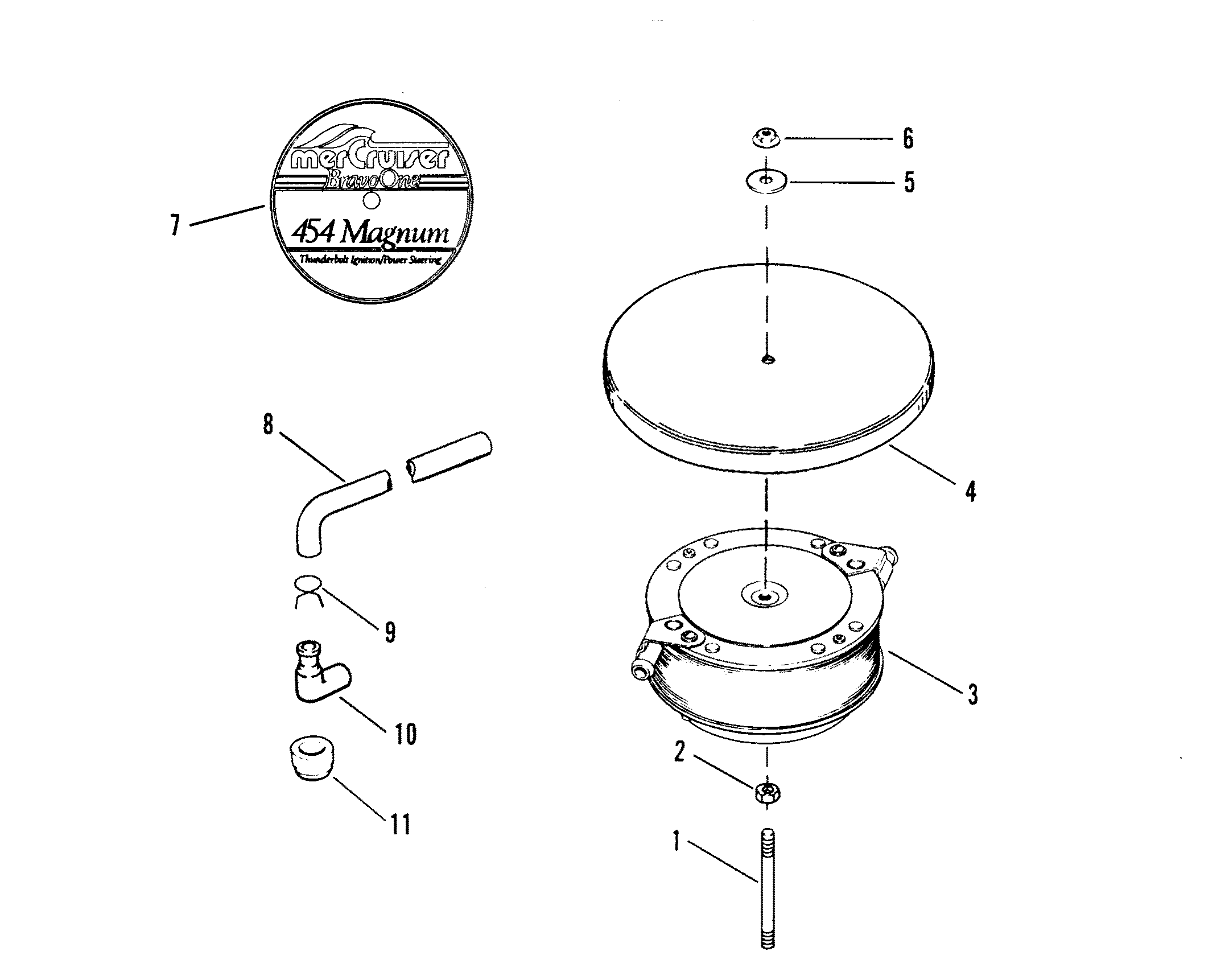

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16-805161 | STUD, FLAME ARRESTOR | 1 | 16-578351 | This Part is No Longer Available | ||||
| 2 | 37-28641 | NUT, JAM - FLAME ARRESTOR | 1 | This Part is No Longer Available | |||||
| 3 | 805298A1 | FLAME ARRESTOR | 1 | 57882T1 | |||||
| 4 | 14605T1 | COVER, CARBURETOR | 1 | 14605T | This Part is No Longer Available | ||||
| 5 | 12-86400 | WASHER, SEALING | 1 | ||||||
| 6 | 11-826709109 | NUT, FLAME ARRESTOR STUD | 1 | 11-35045 | |||||
| 7 | 37-1372328 | DECAL, HORSEPOWER | 1 | This Part is No Longer Available | |||||
| 8 | 32-8M0062669 | HOSE, VENT - CARBURETOR | 2 | 32-9331512 | |||||
| 9 | 54-53101 | CLAMP, VENT HOSE | 4 | This Part is No Longer Available | |||||
| 10 | 97850T | ELBOW, VENT HOSE (90 ) | 2 | 97850 | |||||
| 11 | 25-59987 | GROMMET, ROCKER COVER | 2 | No longer made, limited availability |
