454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Thermostat Housing Old Design

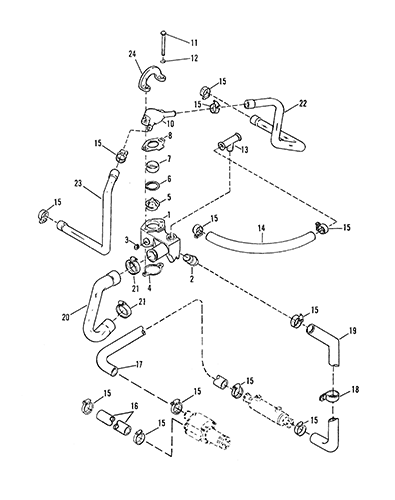

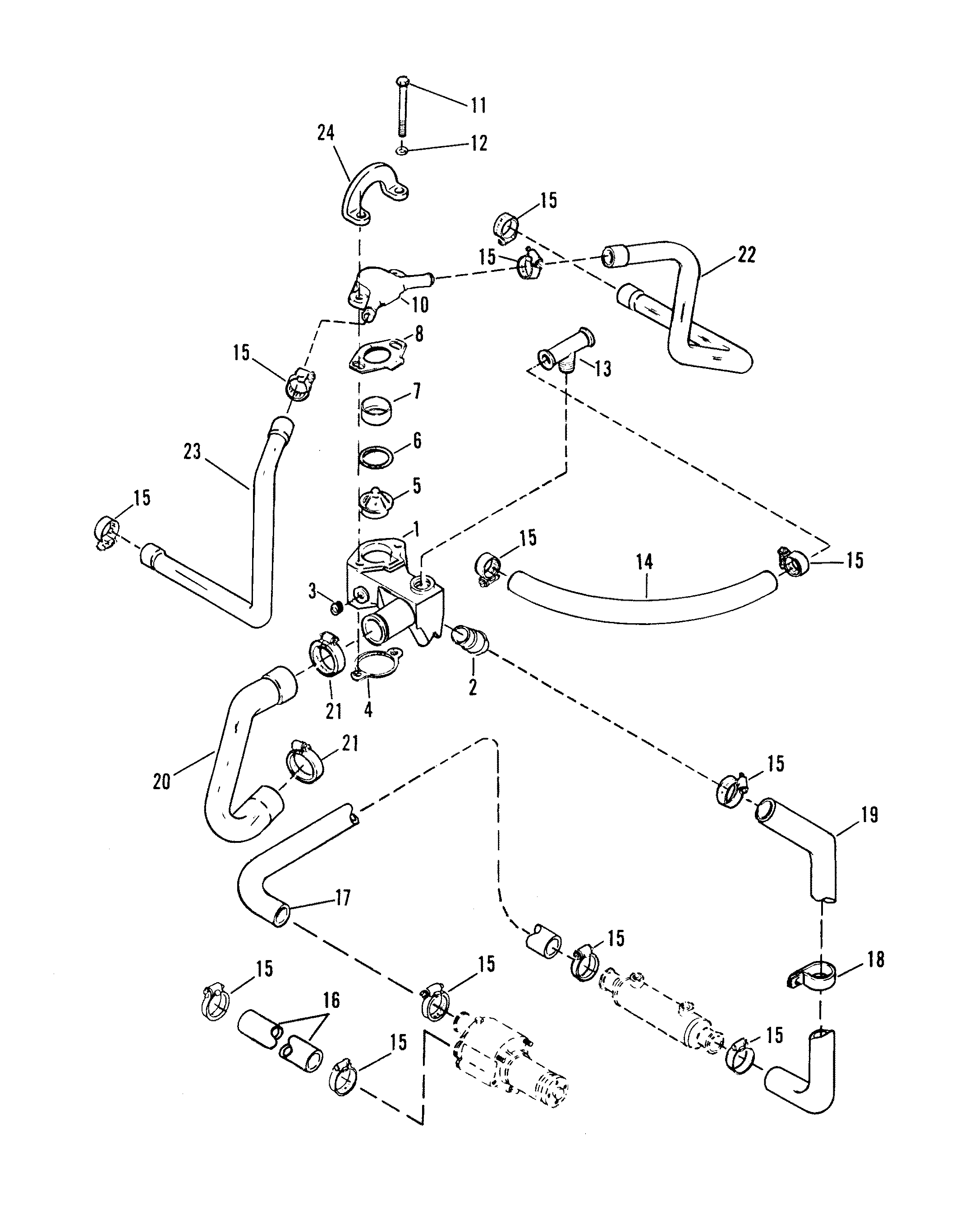

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 90736A18         THERMOSTAT HOUSING ASSEMBLY 1
4= [27-19315A88] GASKET SET, ENGINE OVERHAUL
2 23-47511         SLEEVE, THERMOSTAT HOUSING 1

3 22-32803     700-21894   PIPE PLUG 2

4 27-530451         GASKET, THERMOSTAT HOUSING 1
4
5 807252T1         THERMOSTAT (143°) 1 59137
6 27-47510
676-9-60005 700-31460   GASKET, THERMOSTAT 1
4
7 23-47508T         SLEEVE, THERMOSTAT 1 23-47508
8 27-41812   676-9-60006
700-31630
  GASKET, THERMOSTAT COVER 2
4
10 8M0061068         COVER, THERMOSTAT 1 47442A1
11 10-48130         SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD 2   This Part is No Longer Available
12 13-35048         LOCKWASHER, THERMOSTAT HOUSING SCREW 2

13 22-98477A2         TEE/VALVE 1

14 32-8M0062614         HOSE, TEE TO EXHAUST ELBOWS (19') 2 32-3322070
15 54-815504220         CLAMP, HOSE ATTACHING AR 54-32780
16 32-865672079         HOSE, SEA PUMP TO DRIVE UNIT 132-1743570
17 32-856706         HOSE, OIL COOLER TO SEA PUMP 1 32-804441
18 54-47715         CLIP, HOSE ATTACHING 2

19 32-897142         HOSE, THERMOSTAT HOUSING TO OIL COOLER 1 32-11011
20 32-897181         HOSE, THERMOSTAT HOUSING TO WATER PUMP 1 32-89718
21 54-815504232         CLAMP, HOSE ATTACHING 2 54-87268
22 32-897491         HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) 1 32-89749
23 32-897301         HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.) 1 32-89730
24 12552         LIFTING EYE 1
