454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Oil Filter And Adaptor

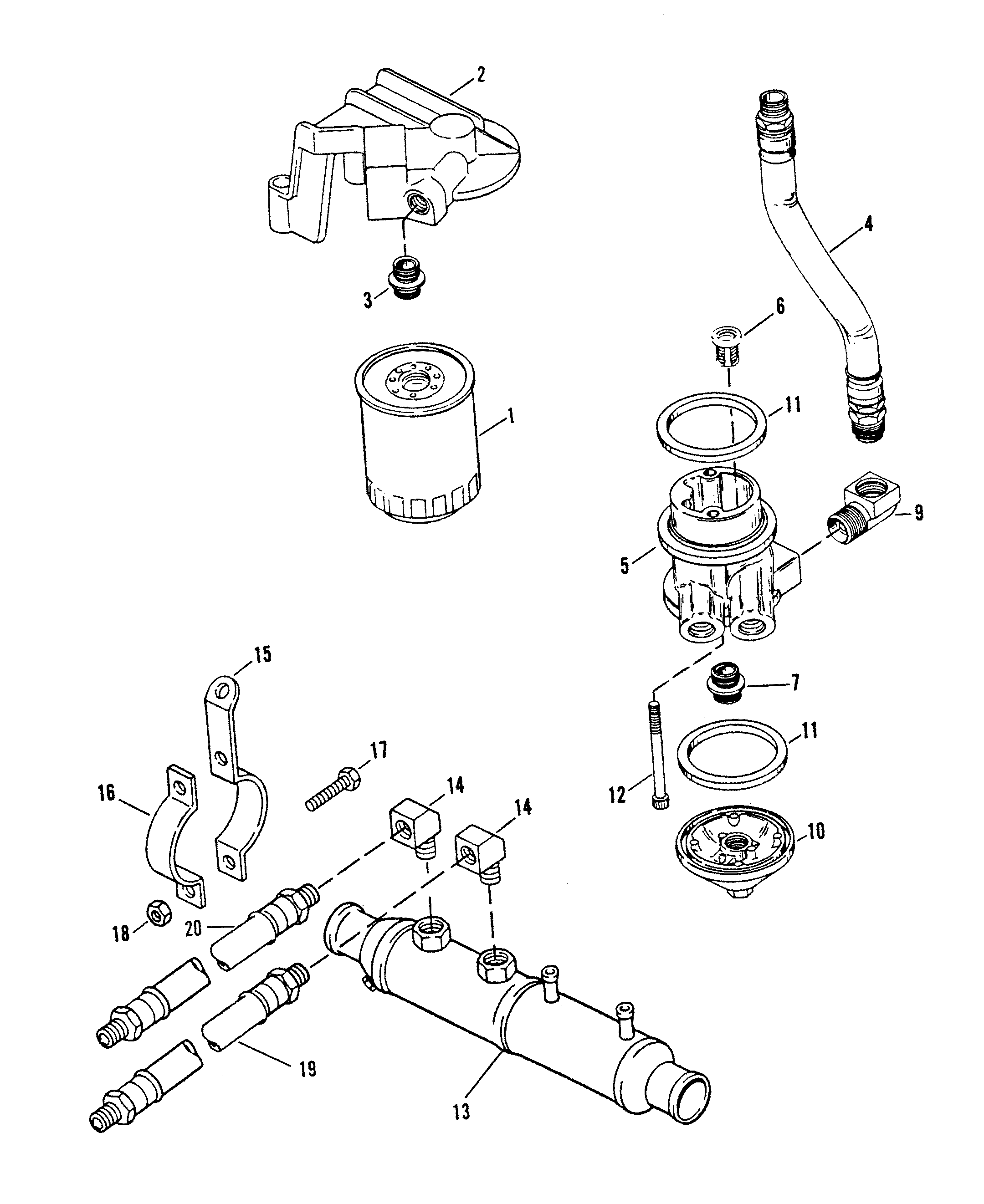

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-866340Q03         OIL FILTER 1 14957 8 = USE WITH CAST IRON EXHAUST ELBOW
2 44393A2         BRACKET OLD DESIGN 1   This Part is No Longer Available 1 = USE WITH STAINLESS STEEL EXHAUST ELBOW 8
3 22-805632         ADAPTOR (1-12 THREAD) OLD DESIGN 1 32720 4 = [27-19315A88] GASKET SET, ENGINE OVERHAUL 8
2 814420A5         BRACKET NEW DESIGN 1
8
3 22-814822         ADAPTOR (13/16-16 THREAD) NEW DESIGN 1
8
2 817403A4         BRACKET 1 817403A2 This Part is No Longer Available 1
3 22-814822         ADAPTOR 1
1
4 32-9235761         OIL HOSE (36") 1

5 90783A22         ADAPTOR ASSEMBLY 1

6 99889         BY-PASS VALVE 1

7 22-805632         ADAPTOR 1 32720
9 22-63825         ELBOW (90 ) 1

10 91830         COVER 1

11 27-91892         GASKET 2
4
12 10-91966         SCREW (4") 1
No longer made, limited availability
12 10-91967         SCREW (3-1/4") 1   This Part is No Longer Available No longer made, limited availability
13 85152T         OIL COOLER 1

14 22-63825         ELBOW (90 ) 1

14 22-48872         ELBOW (45 ) 1

15 63820T1         BRACKET (LONG - OLD DESIGN) 1 638204 This Part is No Longer Available
15 18728         BRACKET (LONG - NEW DESIGN) 1   This Part is No Longer Available
16 56328A1         BRACKET (SHORT) 1

17 10-60300         SCREW (3/4") 2

18 11-826709109         NUT 2 11-35045
19 32-9235773         HOSE (48") 1

20 32-9235715         HOSE (8-1/2") 1
