454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Intake Manifold And Front Cover

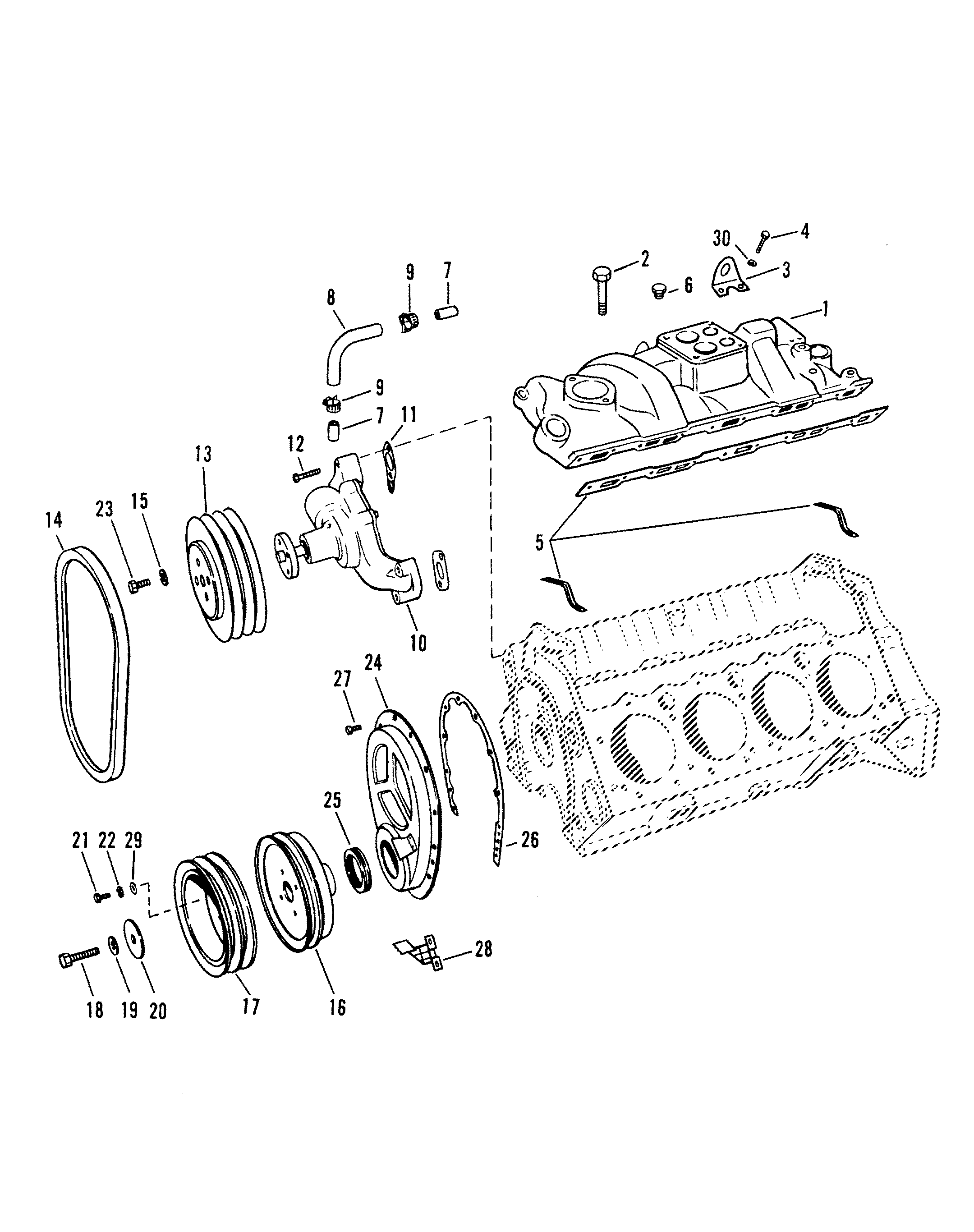

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 72608T         INTAKE MANIFOLD 1 72608 This Part is No Longer Available 4 = [27-19315A88] GASKET SET, ENGINE OVERHAUL
2 10-37510         BOLT, INTAKE MANIFOLD 12
No longer made, limited availability
2 NSS         BOLT, INTAKE MANIFOLD (GM #9439637) 4

3 54-64628         LIFTING EYE 1

4 10-34354         BOLT, LIFTING EYE 2

5 27-805722A1   676-9-61217     GASKET SET, INTAKE MANIFOLD 1 27-812712 4
6 10-49011         SCREW, INTAKE MANIFOLD 4   This Part is No Longer Available
7 22-806242         CONNECTOR, INTAKE PUMP/INTAKE MANIFOLD 2 22-66201
8 32-99520         HOSE, BY-PASS - WATER PUMP/INTAKE MANIFOLD 1 32-66206
9 54-815504412         CLAMP, BY-PASS HOSE 2 54-43510
10 8504541         WATER PUMP 1 17670
11 27-49110         GASKET, WATER PUMP MOUNTING 2
4
12 10-32132         SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4") 4

13 15120T         PULLEY, WATER PUMP 5-1/2" O.D. PULLEY 1   This Part is No Longer Available
14 57-78200Q1         BELT, ALTERNATOR DRIVE 5-1/2" O.D. PULLEY 1 57-78200A1
13 19692T01         PULLEY, WATER PUMP 7" O.D. PULLEY 1 19692T
14 57-48122Q         BELT, ATERNATOR DRIVE 7" O.D. PULLEY 1 57-48122
15 13-39107     700-21496   LOCKWASHER, WATER PUMP PULLEY SCREW 4

16 72605T1         BALANCER, HARMONIC -CRANKSHAFT 1 726051 This Part is No Longer Available
17 90081T         PULLEY, HARMONIC BALANCER 1

18 10-14758         BOLT, PULLEY AND HARMONIC BALANCER 1
No longer made, limited availability
19 13-14759         LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT 1   This Part is No Longer Available
20 12-49103         WASHER, PULLEY AND BALANCER BOLT 1

21 10-358701         BOLT, PULLEY (1") 3 10-64900
22 13-35048         LOCKWASHER, PULLEY BOLT 3

23 10-47277         SCREW, PULLEY TO WATER PUMP (3/4") 4

24 66215         COVER, CRANKCASE 1   This Part is No Longer Available
25 26-8219471         OIL SEAL, CRANKCASE COVER 1 26-49154 4
26 27-54529   676-9-61601 700-30440   GASKET, CRANKCASE COVER 1
4
27 10-35366         SCREW, CRANKCASE COVER TO BLOCK 10

28 59966         POINTER, TIMING (L.H. ROTATION) 1

29         WASHER, PULLEY BOLT 3

30 13-35048         LOCKWASHER, LIFTING EYE SCREW 2
