454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Carburetor

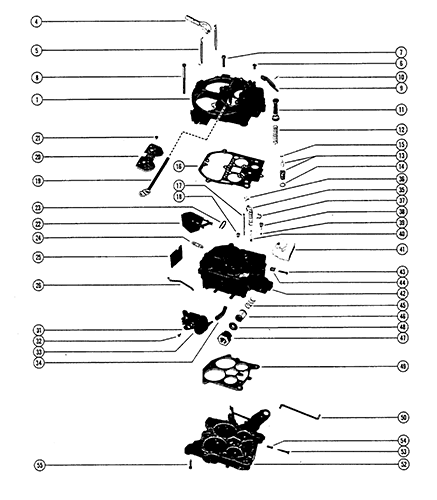

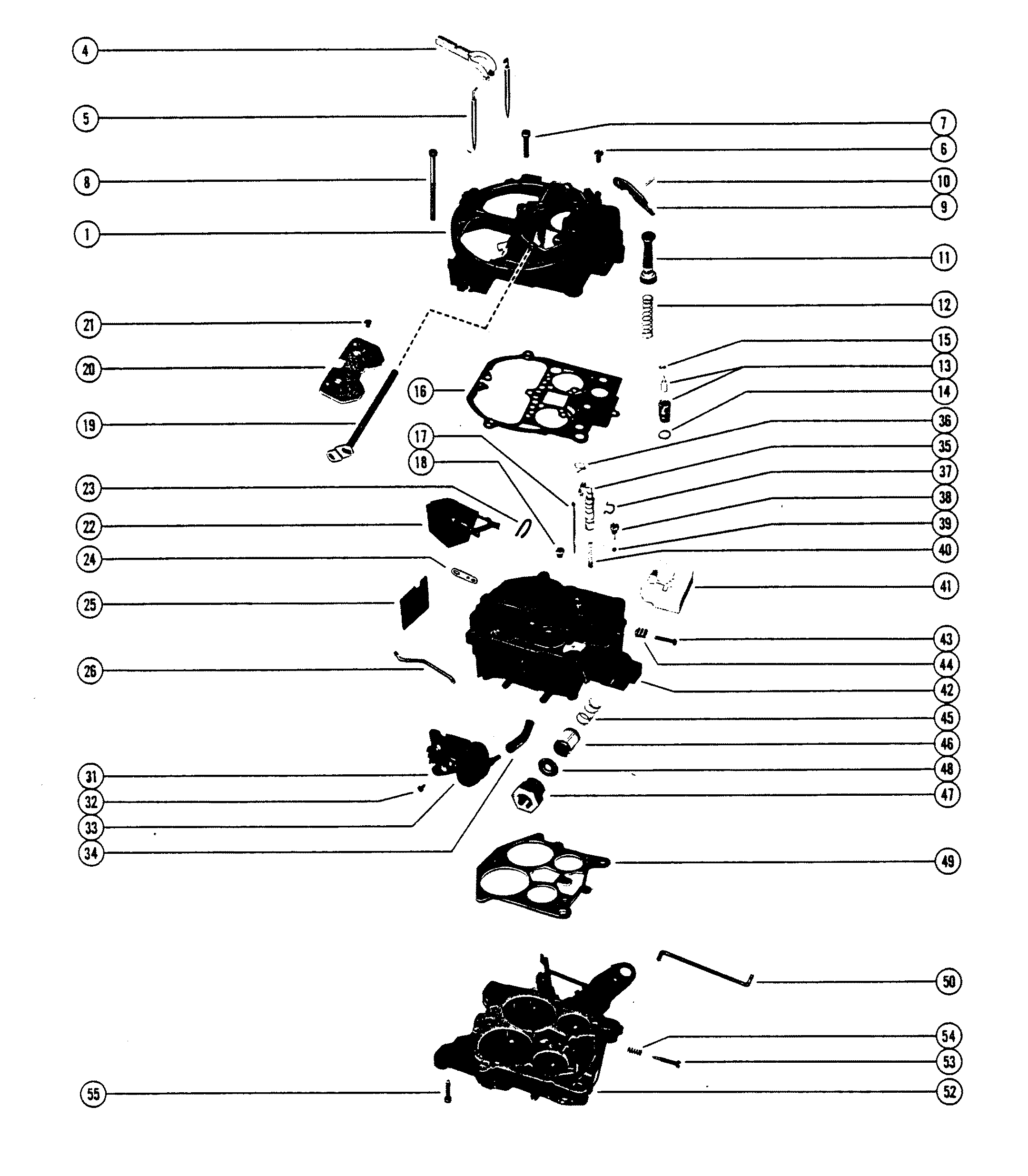

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1347-804625R1         CARBURETOR ASSEMBLY, COMPLETE 1 1347-9863A3
1 NSS         NOT SOLD SEPARATE, AIR HORN ASSEMBLY 1
This Part is not sold separately
4 NSS         NOT SOLD SEPARATE, HOLDER KIT, SEC. METERING ROD (ROCHESTER #7034522) 1
This Part is not sold separately
5 NSS         NOT SOLD SEPARATE, METERING ROD, SECONDARY (ROCHESTER #7046010) 2
This Part is not sold separately 0 = PARTS INCLUDED WITH [1397-9723] OVERHAUL KIT.
6 1397-8557         SCREW, AIR HORN TO FLOAT BOWL (3/8") 2   This Part is No Longer Available
7 1397-8557         SCREW, AIR HORN TO FLOAT BOWL (1" 5   This Part is No Longer Available
8 1397-8557         SCREW, AIR HORN TO FLOAT BOWL (3") 2   This Part is No Longer Available
9 NSS         NOT SOLD SEPARATE, LEVER, ACTUATING - PUMP (ROCHESTER #7048169) 1
 This Part is not sold separately
10 NSS         NOT SOLD SEPARATE, ROLL PIN, HINGE - PUMP LEVER (ROCHESTER #9428787) 1
 This Part is not sold separately
11 1397-9669         PUMP ASSEMBLY 1

12 NSS         NOT SOLD SEPARATE, SPRING, PUMP RETURN (ROCHESTER #7042979) 1
 This Part is not sold separately
13 NSS         NOT SOLD SEPARATE, NEEDLE AND SEAT ASSEMBLY 1
This Part is not sold separately Does not include pulley or sensor
14 NSS         NOT SOLD SEPARATE, GASKET, NEEDLE AND SEAT 1
This Part is not sold separately Does not include pulley or sensor
15 NSS         NOT SOLD SEPARATE, PULL CLIP, FLOAT NEEDLE 1
This Part is not sold separately Does not include pulley or sensor
16 NSS         NOT SOLD SEPARATE, GASKET, AIR HORN 1
This Part is not sold separately Does not include pulley or sensor
17 NSS         NOT SOLD SEPARATE, METERING ROD, PRIMARY (ROCHESTER #7031841) 2
 This Part is not sold separately
18 NSS         NOT SOLD SEPARATE, JET, PRIMARY (ROCHESTER #7031968) 2
 This Part is not sold separately
19 NSS         NOT SOLD SEPARATE, CHOKE SHAFT & LEVER ASS'Y (ROCHESTER #7036059) 1
 This Part is not sold separately
20 NSS         NOT SOLD SEPARATE, VALVE, CHOKE - CHOKE SHAFT (ROCHESTER #7036021) 1
 This Part is not sold separately
21 NSS         NOT SOLD SEPARATE, SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866) 2
 This Part is not sold separately
22 NSS         NOT SOLD SEPARATE, FLOAT ASSEMBLY (ROCHESTER #7046301) 1
 This Part is not sold separately
23 NSS         NOT SOLD SEPARATE, PIN, HINGE - FLOAT (ROCHESTER #7029856) 1
 This Part is not sold separately
24 NSS         NOT SOLD SEPARATE, LEVER, IMTERMEDIATE CHOKE (ROCHESTER #7031231) 1
 This Part is not sold separately
25 NSS         NOT SOLD SEPARATE, BAFFLE, FLOAT BOWL (ROCHESTER #7031365) 1
 This Part is not sold separately
26 NSS         NOT SOLD SEPARATE, ROD, CHOKE (ROCHESTER #7037557) 1
 This Part is not sold separately
31 1397-8582         BRACKET ASS'Y, VACUUM CONTROL 1   This Part is No Longer Available
32 1397-8582         SCREW, VAC. CONT. BRCK./FLOAT BOWL 1   This Part is No Longer Available
33 1397-8582         CONTROL ASSEMBLY, VACUUM 1   This Part is No Longer Available
34 1397-8582         HOSE, VACUUM 1   This Part is No Longer Available
35 NSS         NOT SOLD SEPARATE, POWER PISTON ASSEMBLY (RICHESTER #7034637) 1
 This Part is not sold separately
36 NSS         NOT SOLD SEPARATE, SPRING, METERING ROD - PRIMARY (ROCHESTER #7029862) 1
 This Part is not sold separately
37 NSS         NOT SOLD SEPARATE, RETAINER, POWER PISTON (ROCHESTER #7034339) 1
 This Part is not sold separately
38 NSS         NOT SOLD SEPARATE, RETAINER, PUMP DISCHARGE BALL (ROCHESTER #7029849) 1
 This Part is not sold separately
39 NSS         NOT SOLD SEPARATE, BALL, PUMP DISCHARGE 1
This Part is not sold separately Does not include pulley or sensor
40 NSS         NOT SOLD SEPARATE, SPRING, POWER PISTON (ROCHESTER #7029529) 1
 This Part is not sold separately
41 NSS         NOT SOLD SEPARATE, INSERT, FLOAT BOWL (ROCHESTER #7034361) 1
 This Part is not sold separately
42 NSS         NOT SOLD SEPARATE, FLOAT BOWL ASSEMBLY 1
 This Part is not sold separately
43 NSS         NOT SOLD SEPARATE, SCREW, IDLE STOP (ROCHESTER #17071461) 1
 This Part is not sold separately
44 NSS         NOT SOLD SEPARATE, SPRING, IDLE STOP SCREW (ROCHESTER #7003176) 1
 This Part is not sold separately
45 24-48143         SPRING, FILTER NUT 1

46 35-53336Q         FILTER, FUEL INLET 1 35-53336
47 1397-3330         NUT, FILTER - FUEL INLET 1   This Part is No Longer Available
48 NSS         NOT SOLD SEPARATE, GASKET, FILTER NUT 1
This Part is not sold separately Does not include pulley or sensor
49 NSS         NOT SOLD SEPARATE, GASKET, THROTTLE BODY 1
This Part is not sold separately Does not include pulley or sensor
50 NSS         NOT SOLD SEPARATE, ROD, PUMP (ROCHESTER #7026138) 1
 This Part is not sold separately
52 NSS         NOT SOLD SEPARATE, THROTTLE BODY ASSEMBLY 1
 This Part is not sold separately
53 NSS         NOT SOLD SEPARATE, IDLE NEEDLE, THROTTLE BODY (ROCHESTER #17062906) 2
 This Part is not sold separately
54 NSS         NOT SOLD SEPARATE, SPRING, IDLE NEEDLE (ROCHESTER #17062907) 2
 This Part is not sold separately
55 1397-8557         SCREW, THROTTLE BODY TO FLOAT BOWL 3   This Part is No Longer Available
-- NSS         NOT SOLD SEPARATE, SPRING AND CAM KIT, AIR VALVE (ROCHESTER #7035344) 1
 This Part is not sold separately
-- 823426A1         CARB KIT 1 1397-9723
