| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

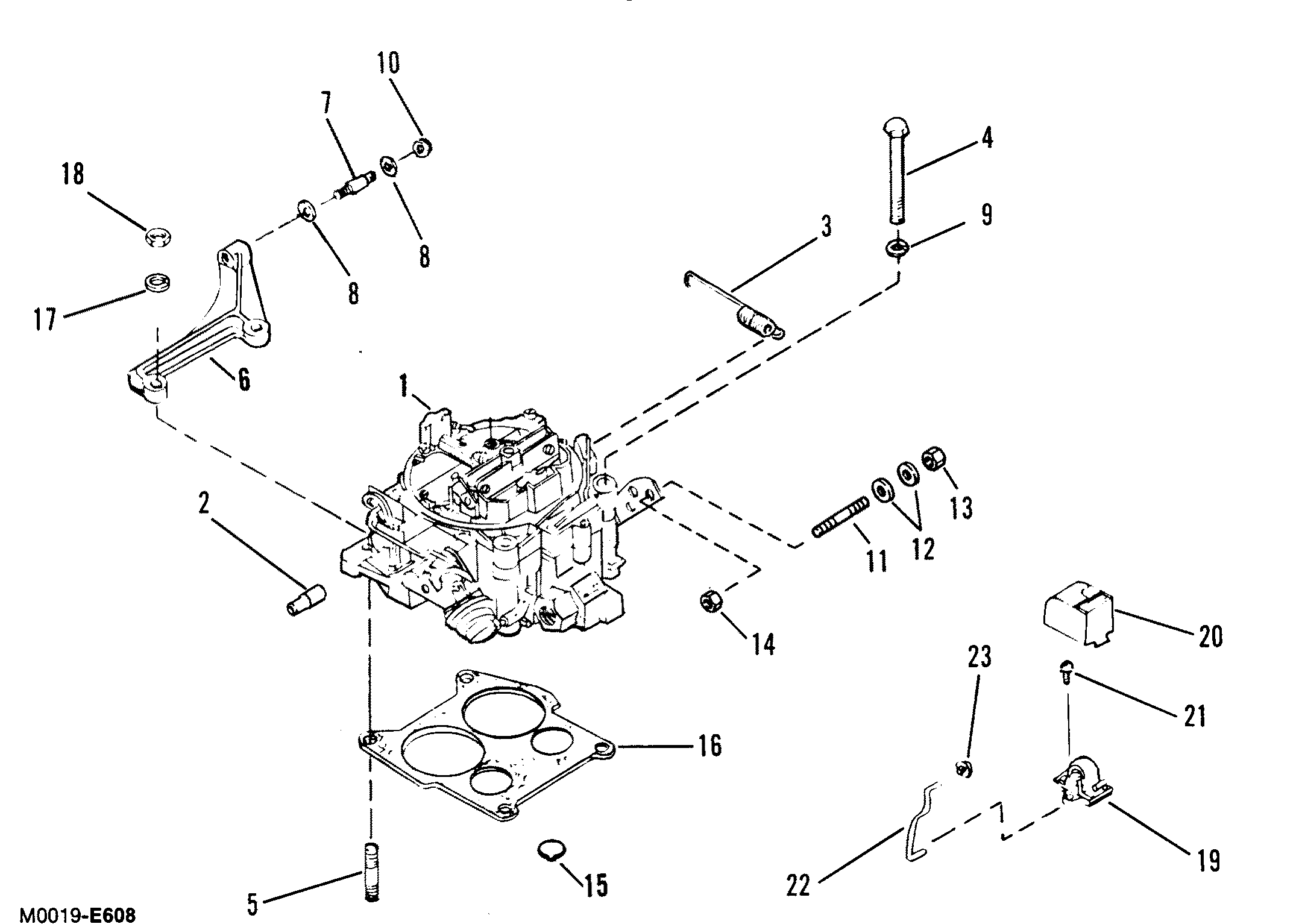

| 1 |
1347-804625R1 |
|
|
|
|
CARBURETOR ASSEMBLY |
1 |
1347-9863A3 |
4= [27-19315A88 ] GASKET SET, ENGINE OVERHAUL |
| 2 |
22-97282 |
|
|
|
|
CONNECTOR, CARBURETOR |
1 |
|
This Part is No Longer Available |
| 3 |
24-897454 |
|
|
|
|
SPRING, THROTTLE RETURN |
1 |
24-32817 |
|
| 4 |
10-74822 |
|
|
|
|
SCREW, CARBURETOR (3-1/2") |
2 |
|
|
| 5 |
16-46857 |
|
|
|
|
STUD, CARBURETOR (1-7/8") |
2 |
|
|
| 6 |
805359A02 |
|
|
|
|
BRACKET, THROTTLE CABLE |
1 |
41329A3 |
|
| 7 |
16-38525 |
|
|
|
|
STUD, THROTTLE CABLE |
1 |
|
|
| 8 |
12-24664 |
|
|
|
|
WASHER, THROTTLE CABLE STUD |
2 |
|
|
| 9 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, CARBURETOR SCREW |
2 |
|
|
| 10 |
11-826709109 |
|
|
|
|
NUT, THROTTLE CABLE STUD |
1 |
11-35045 |
|
| 11 |
16-96112 |
|
|
|
|
STUD, THROTTLE CABLE |
1 |
|
|
| 12 |
12-29245 |
|
|
|
|
WASHER, THROTTLE CABLE STUD |
2 |
|
|
| 13 |
11-8267089 |
|
|
|
|
NUT, THROTTLE CABLE STUD |
1 |
11-20361 |
|
| 14 |
11-826709109 |
|
|
|
|
NUT, THROTTLE CABLE STUD |
1 |
11-35045 |
|
| 15 |
22-48358T |
|
|
|
|
PLUG, INTAKE MANIFOLD VACUUM HOLE |
1 |
22-48358 |
|
| 16 |
27-524572 |
|
|
|
|
GASKET, CARBURETOR |
1 |
|
4 |
| 17 |
12-20084 |
|
|
|
|
WASHER, CARBURETOR STUD |
2 |
|
|
| 18 |
11-29250 |
|
|
|
|
NUT, CARBURETOR TUD |
2 |
|
|
| 19 |
66205 |
|
|
|
|
CHOKE, AUTOMATIC - CARBURETOR |
1 |
|
This Part is No Longer Available |
| 20 |
63922 |
|
|
|
|
COVER, AUTOMATIC CHOKE |
1 |
66198 |
|
| 21 |
10-69235 |
|
|
|
|
SCREW, AUTOMATIC CHOKE THERMOSTAT |
1 |
|
|
| 22 |
72468 |
|
|
|
|
LEVER, CHOKE |
1 |
|
This Part is No Longer Available |
| 23 |
54-49290 |
|
|
|
|
CLIP, AUTOMATIC CHOKE ROD |
1 |
|
This Part is No Longer Available |
