454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Engine Mounting

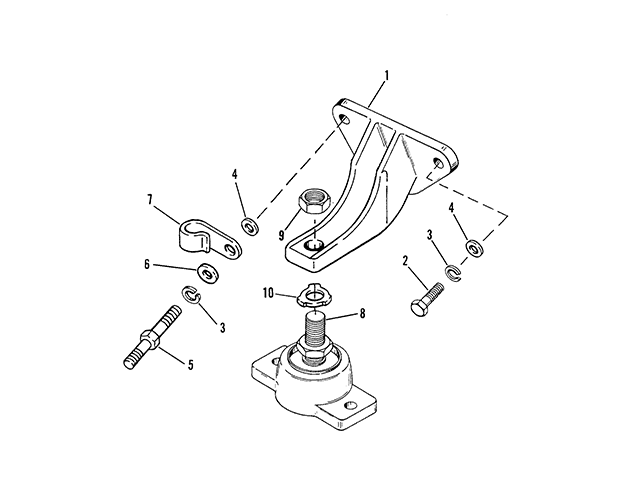

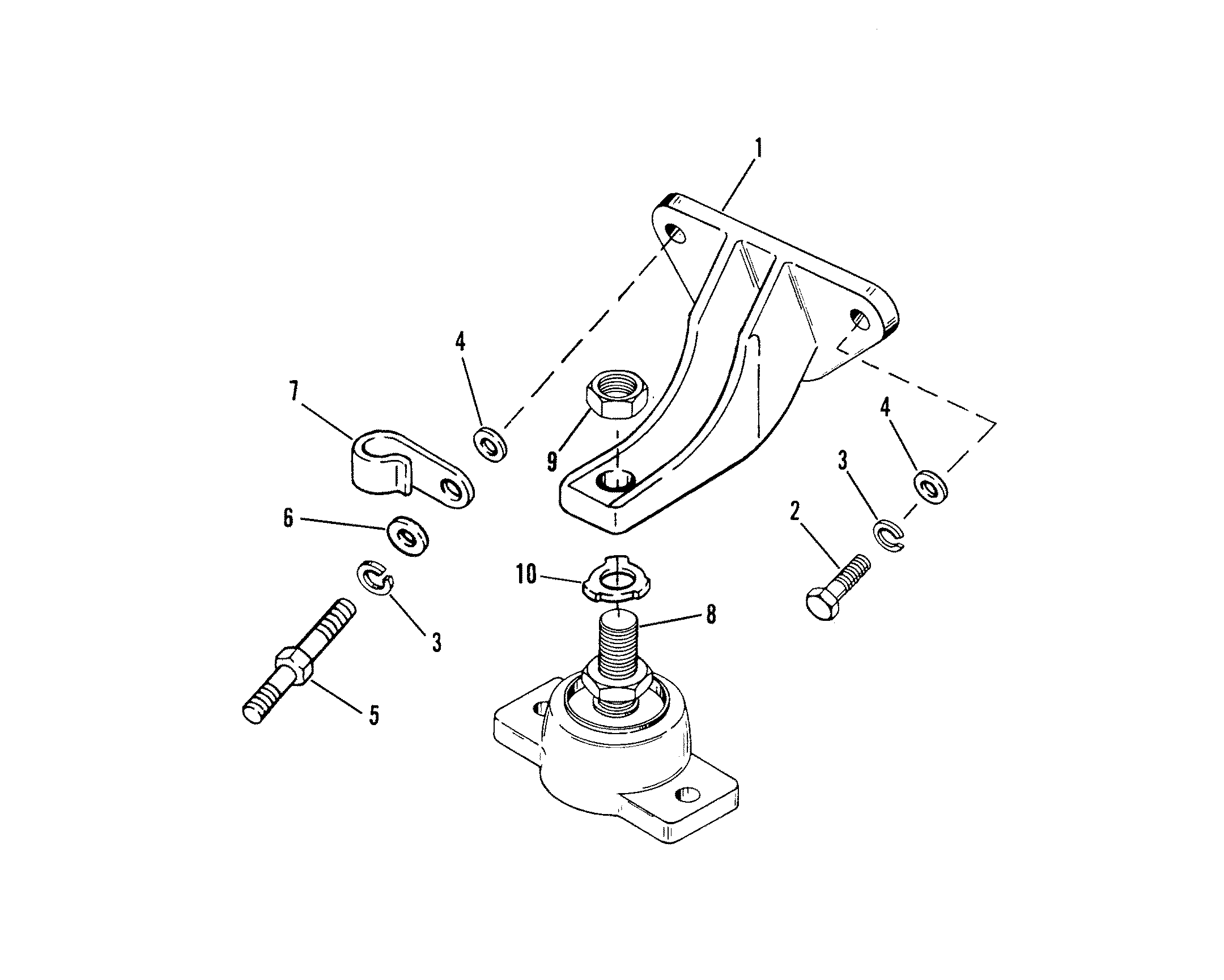

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET, MOUNTING - ENGINE (FRONT) 2

2 10-68101



SCREW, BRACKET TO ENGINE (1-3/8") PORT 2

2 10-358701



SCREW, BRACKET TO ENGINE (2") PORT 1 10-64900
3 13-35048



LOCKWASHER, BRACKET STUD PORT 2

4 12-46132



WASHER, BRACKET SCREW PORT 2

2 10-68101



SCREW, BRACKET TO ENGINE (1-3/8") STARBOARD 2

3 13-35048



LOCKWASHER, BRACKET SCREW/STUD STARBOARD 2

4 12-46132



WASHER, BRACKET SCREW STARBOARD 2

5 16-64066



STUD, BRACKET TO ENGINE STARBOARD 1

6 12-46132



WASHER, BRACKET STUD STARBOARD 1

7 54-78945



CLAMP STARBOARD 1

8 814263A1



BASE, ENGINE MOUNT 2

9 11-859126



NUT, JAM - ENGINE MOUNT BASE 4 11-49252
10 14-12657



TAB WASHER 2
