454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Cylinder Head And Rocker Cover

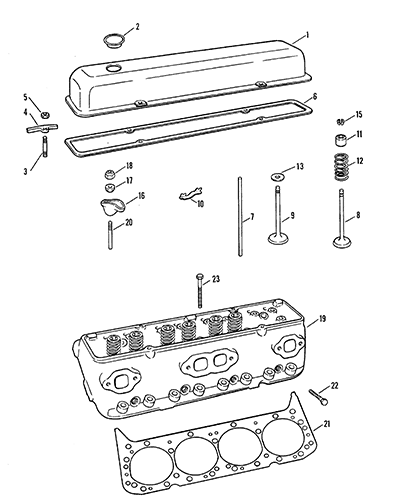

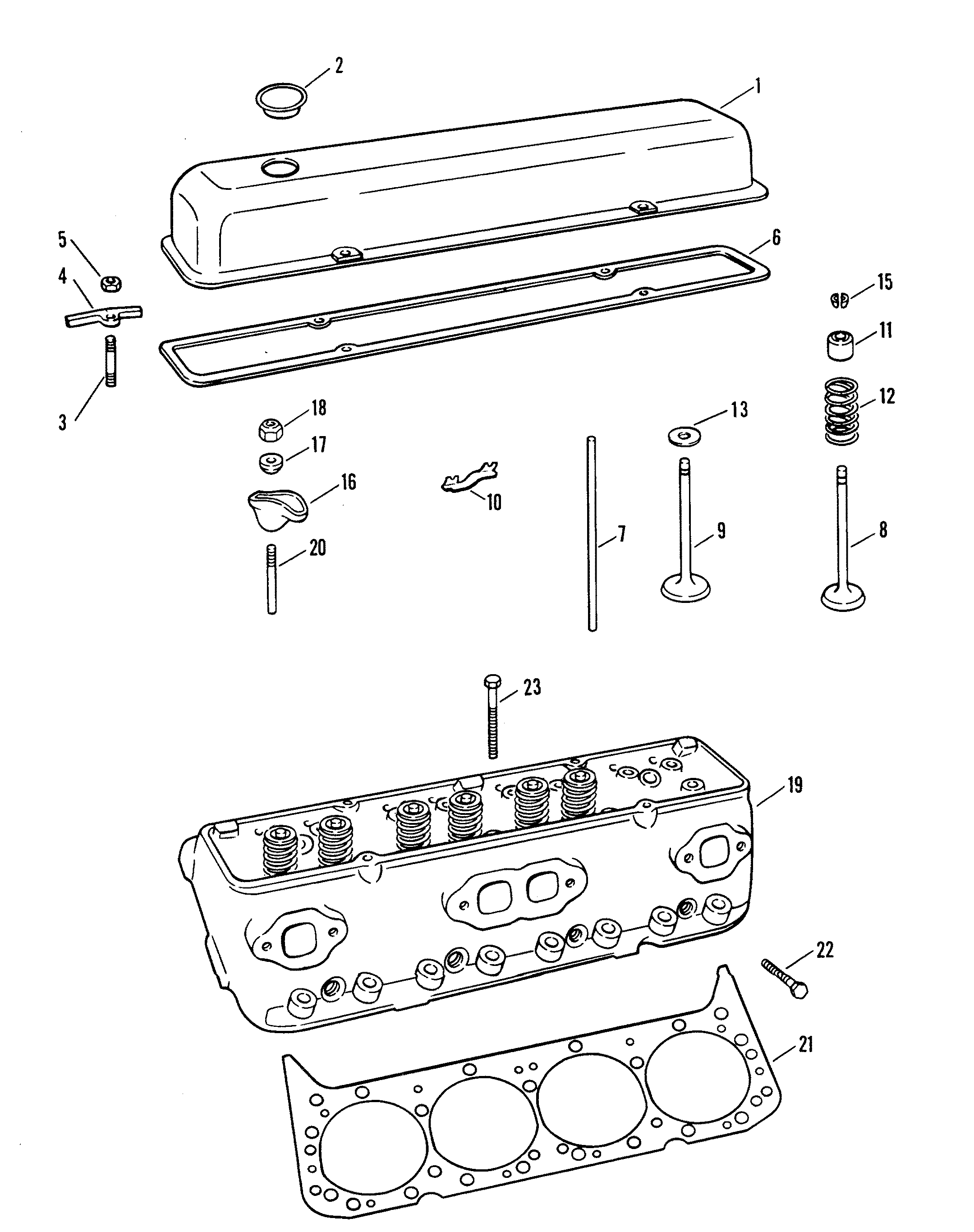

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17671         COVER, ROCKER 2   This Part is No Longer Available 4= [27-19315A88] GASKET SET, ENGINE OVERHAUL
2 36-807152         CAP, OIL FILTER 2 36-75336 This Part is No Longer Available NO LONGER AVAIL FROM MERCURY MARINE
3 16-11995         STUD, ROCKER COVER 14   This Part is No Longer Available
4 14763         REINFORCEMENT, ROCKER COVER STUD 8
No longer made, limited availability
4 14764         REINFORCEMENT, ROCKER COVER STUD 6
No longer made, limited availability
5 11-8167301         NUT, ROCKER COVER STUD 14 11-816730
6 27-49121         GASKET, ROCKER COVER 2
4
7 49115         ROD, VALVE PUSH (INLET) 8   This Part is No Longer Available
7 49116         ROD, VALVE PUSH (EXHAUST) 8   This Part is No Longer Available
8 816962         VALVE, EXHAUST (STANDARD) 8

8 816963T         VALVE, EXHAUST (.015 O.S.) AR 816963 This Part is No Longer Available
9 801877         VALVE, INLET (STANDARD) 8 17056
9 801878         VALVE, INLET (.015 O.S.) AR 1705615 This Part is No Longer Available
10 49132         GUIDE, PUSH ROD 8

11 827644A1         SEAL AND CAP 16 19325
12 24-801879T         SPRING, VALVE (INLET AND EXHAUST) 16 24-17057A1
13 15-845669         SHIM, VALVE SPRING 16 15-54531
15 28-54530         KEY, VALVE STEM 32

16 19241         ARM, ROCKER VALVE 16   This Part is No Longer Available
17 58041         BALL UNIT, ROCKER VALVE ARM 16

18 11-49119         NUT, ROCKER VALVE ARM STUD 16
No longer made, limited availability
19 938-5924         CYLINDER HEAD ASSEMBLY 2 938-814512 This Part is No Longer Available
20 16-49133         STUD, ROCKER VALVE ARM AR   This Part is No Longer Available
21 8M0049045         GASKET, CYLINDER HEAD 2 27-13687 4
22 10-8M0000463         BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2") 8 10-49106
23 10-8M0000482         BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4-1/8") 24 10-49105
