454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Oil Pan And Oil Pump Stamped Oil Pan

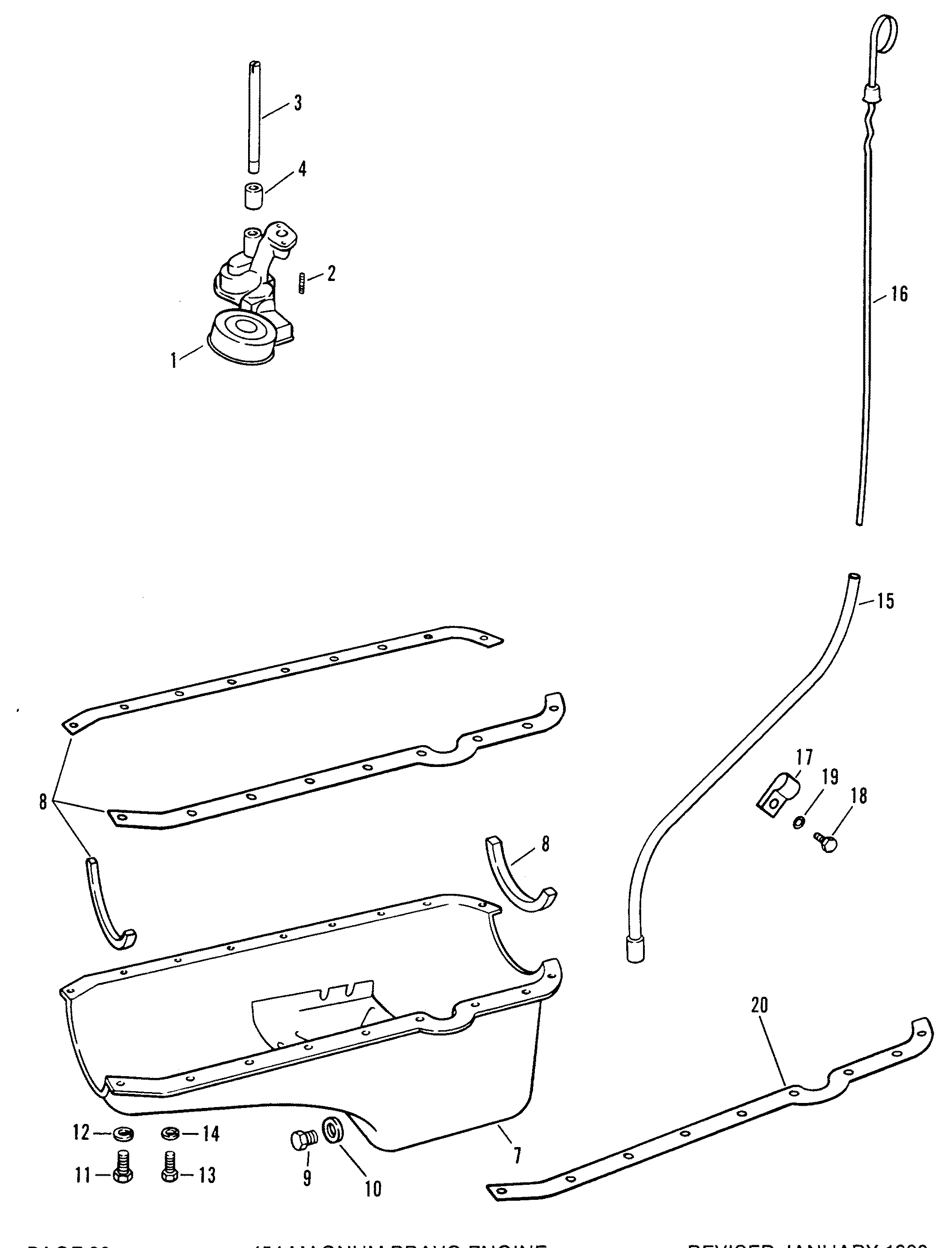

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827643 | OIL PUMP | 1 | 816496 | 4 = [27-19315A88] GASKET SET, ENGINE OVERHAUL | ||||
| 2 | 16-845599 | STUD, OIL PUMP TO CYLINDER BLOCK | 1 | 16-49108 | |||||
| 3 | 848511 | SHAFT, OIL PUMP TO DISTRIBUTOR | 1 | 49149 | |||||
| 4 | 23-52193 | RETAINER, OIL PUMP SHAFT | 1 | This Part is No Longer Available | |||||
| 7 | 19221T | OIL PAN (8 QUART) | 1 | 19221 | This Part is No Longer Available | ||||
| 8 | 27-52550 | GASKET SET, OIL PAN | 1 | 4 | |||||
| 9 | 10-49956 | SCREW, OIL PAN DRAIN | 1 | 4 | |||||
| 10 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, DRAIN SCREW | 1 | ||||
| 11 | 10-34500 | SCREW, OIL PAN (5/16-18) | 20 | ||||||
| 13 | 10-14070 | SCREW, OIL PAN | 2 | ||||||
| 15 | 32-816200A2 | TUBE, OIL LEVEL GAUGE | 1 | 14606T | |||||
| 16 | 86194218 | GAUGE, OIL LEVEL (DIPSTICK) | 1 | 14607 | |||||
| 17 | 54-90309 | CLIP, OIL LEVEL TUBE | 1 | This Part is No Longer Available | |||||
| 18 | 10-76926 | SCREW, CLIP TO BRACKET | 1 | ||||||
| 19 | 13-35048 | LOCKWASHER, CLIP SCREW | 1 | ||||||
| 20 | 814510 | REINFORCEMENT, OIL PAN (PORT) | 1 | This Part is No Longer Available | |||||
| 20 | 814511 | REINFORCEMENT, OIL PAN (STARBOARD) | 1 | This Part is No Longer Available |
