525 EFI - Serial 0M900146 Thru 0M953619 - Driveshaft And Tailstock (Driveline)

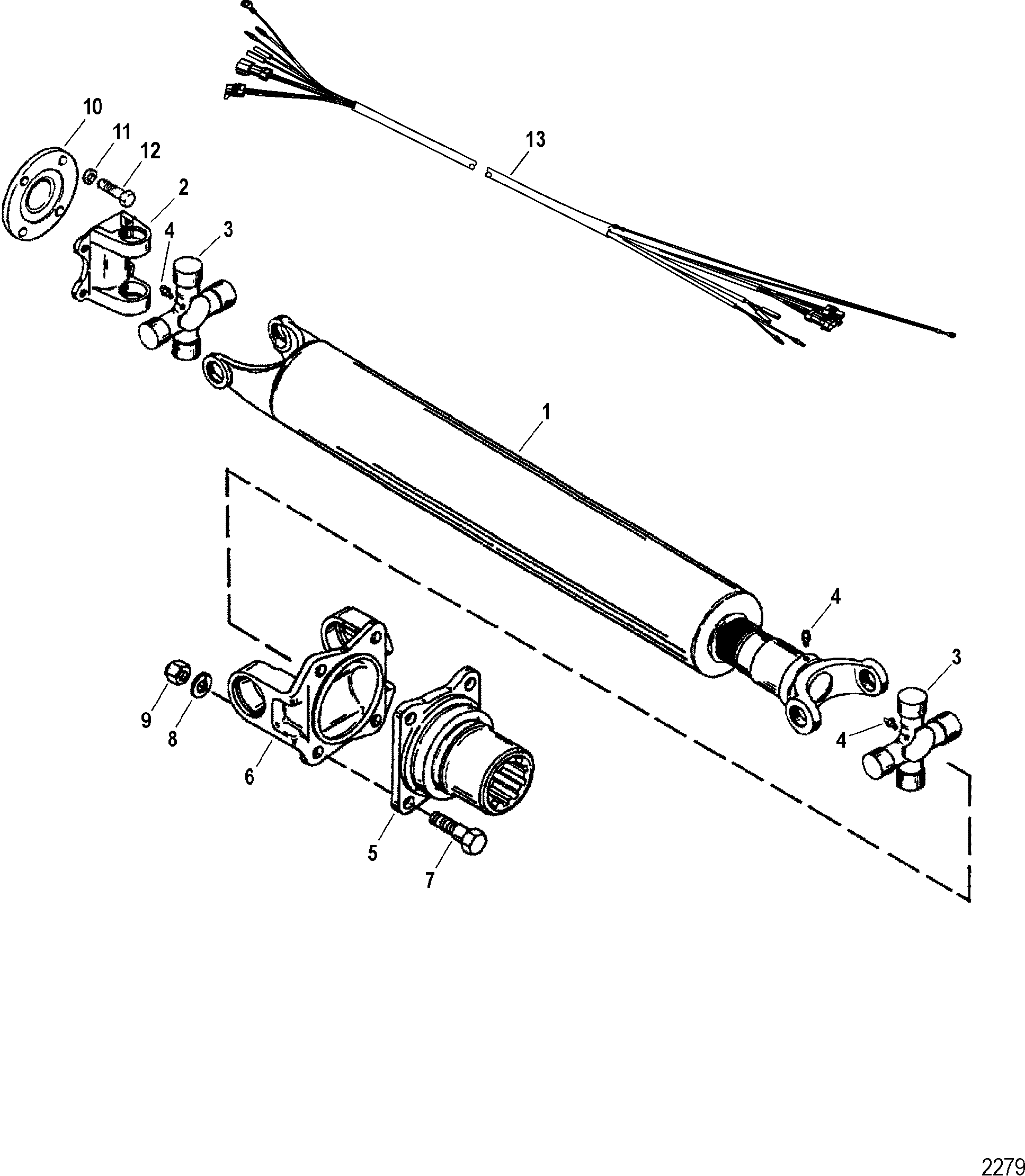

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-86978A3 | DRIVESHAFT ASSEMBLY, (36.940 Inches) | 1 | ||||||
| 2 | 61218 | FLANGE, Driveshaft | 1 | ||||||
| 3 | 61221T | CROSS AND BEARING, With Clips | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 96276T4 | FLANGE/YOKE ASSEMBLY | 1 | ||||||
| 6 | 61218 | FLANGE, Driveshaft | 1 | ||||||
| 7 | 10-68743 | SCREW, (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 7 | 10-840249 | SCREW, (.437-20 x 1.380) | OPT | ||||||
| 8 | 13-47659 | LOCKWASHER, (.437) | 4 | ||||||
| 9 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 4 | |||||
| 10 | 847759 | ADAPTOR, Flange Yoke To Drive | 1 | ||||||
| 11 | 11-82670815 | NUT, (.437-20) | 4 | ||||||
| 12 | 10-805159 | SCREW, (.437-20 x 1.500) | 4 | ||||||
| 13 | 84-843203T01 | HARNESS ASSEMBLY, Extension | 1 |
