| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

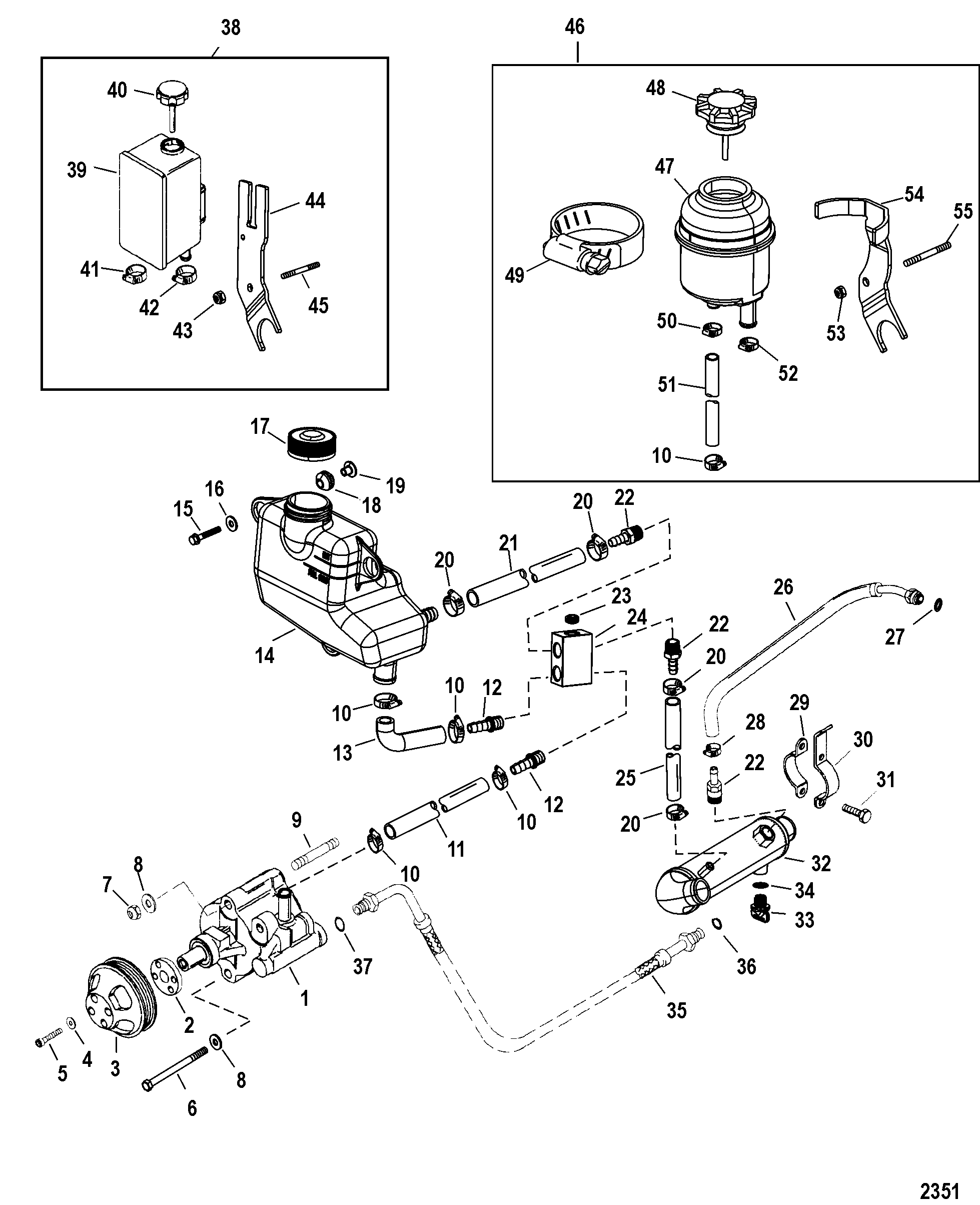

| 1 |
849906A15 |
|
|
|
|
PUMP KIT, Power-Assisted Steering - Complete |
1 |
849906T9 |
This Part is No Longer Available |
| 1 |
849906A28 |
|
|
|
|
PUMP ASSEMBLY, Power-Assisted Steering - Black |
1 |
|
|
| 2 |
47530 |
|
|
|
|
HUB, Pump Pulley |
1 |
|
|
| 3 |
842445T |
|
|
|
|
PULLEY, Blue |
1 |
|
|
| 4 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
4 |
|
|
| 5 |
10-849377 |
|
|
|
|
SCREW, (.312-24 x .750) Stainless Steel |
4 |
|
|
| 6 |
10-843575 |
|
|
|
|
SCREW, (.375-16 x 4.00) Stainless Steel |
1 |
|
|
| 7 |
11-82671013 |
|
|
|
525-11-82671013 |
NUT, (.375-24) Stainless Steel |
1 |
|
|
| 8 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 9 |
16-849375 |
|
|
|
|
STUD, (.375-24 x 3.750) |
1 |
|
|
| 10 |
54-815504406 |
|
|
|
|
CLAMP, Worm Gear |
4 |
|
|
| 11 |
32-843451 |
|
|
|
|
HOSE, (18.50 Inches) |
1 |
|
|
| 12 |
22-806837 |
|
|
|
|
CONNECTOR, (.375-18) |
2 |
|
|
| 13 |
32-843450 |
|
|
|
|
HOSE, Molded, Reservoir To Pump |
1 |
|
|
| 14 |
865264A04 |
|
|
|
|
RESERVOIR, Power Steering Oil |
1 |
841158T |
Version I |
| 15 |
10-28667 |
|
|
700-22360 |
|
SCREW, (.250-20 x 1.00) Stainless Steel |
3 |
|
|
| 16 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 17 |
841218 |
|
|
|
|
CAP, Oil Reservoir |
1 |
|
|
| 18 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 19 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 20 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
4 |
|
|
| 21 |
32-8M0062341 |
|
|
|
|
HOSE, (53.00 Inches Bulk), Cut 3.00 Inches |
1 |
32-5251914 |
|
| 22 |
22-70834 |
|
|
|
|
CONNECTOR, (.375-18) Straight - Brass |
3 |
|
|
| 23 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
1 |
|
|
| 24 |
22-843191 |
|
|
|
|
FITTING, H Block |
1 |
|
|
| 25 |
32-8M0062341 |
|
|
|
|
HOSE, (53.00 Inches Bulk), Cut 30.00 Inches |
1 |
32-5251914 |
|
| 26 |
32-80622142 |
|
|
|
|
HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches |
1 |
|
|
| 27 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
2 |
| 28 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
1 |
|
|
| 29 |
563281 |
|
|
|
|
BRACKET, Oil Cooler - Short Style With Weldnut |
1 |
|
|
| 30 |
63820F3 |
|
|
|
|
BRACKET, Oil Cooler - Long Style |
1 |
638203 |
|
| 31 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
2 |
|
|
| 32 |
899745T02 |
|
|
|
|
COOLER, Power Steering Oil |
1 |
841064T01 |
|
| 33 |
22-806608A02 |
|
|
700-13992 |
|
PLUG KIT, (.500-13) Royal Blue |
1 |
22-806608A1 |
|
| 34 |
25-831985 |
|
|
|
|
O-RING, (.468 x .078) |
1 |
|
2 |
| 35 |
32-84243550 |
|
|
|
|
HOSE ASSEMBLY, Hi Pressure - Pump To Booster |
1 |
|
|
| 36 |
25-806232 |
|
|
|
|
O-RING, (.239 x .064) |
1 |
|
2 |
| 37 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
2 |
| 38 |
865264A04 |
|
|
|
|
RESERVOIR KIT, Power Steering Oil |
1 |
891557A01 |
Version II |
| 39 |
862752T1 |
|
|
|
|
RESERVOIR ASSEMBLY, Power Steering Oil |
1 |
|
|
| 40 |
806216 |
|
|
|
|
CAP, Oil Reservoir |
1 |
|
|
| 41 |
54-815504406 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 42 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
1 |
|
|
| 43 |
11-82671013 |
|
|
|
525-11-82671013 |
NUT, (.375-24) |
1 |
11-34932 |
|
| 44 |
891557001 |
|
|
|
|
BRACKET, Reservoir Mount |
1 |
|
|
| 45 |
16-818824 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.590) |
1 |
|
|
| 46 |
865264A04 |
|
|
|
|
RESERVOIR KIT, Power Steering Oil |
1 |
|
Version III |
| 47 |
865264T |
|
|
|
|
RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering |
1 |
|
|
| 48 |
19-865263 |
|
|
|
|
CAP, Oil Reservoir - Brown |
1 |
|
|
| 49 |
54-18076016 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 50 |
54-815504406 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 51 |
32-891599002 |
|
|
|
|
HOSE, (10.62 Inches) |
1 |
|
|
| 52 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
1 |
|
|
| 53 |
11-82671013 |
|
|
|
525-11-82671013 |
NUT, (.375-24) |
1 |
11-34932 |
|
| 54 |
8M0050830 |
|
|
|
|
BRACKET, Reservoir Mount |
1 |
844160 |
|
| 55 |
16-818824 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.590) |
1 |
|
|
| - |
27-843073A06 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
27-843073A03 |
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
