525 EFI - Serial 0M900146 Thru 0M953619 - Engine Components (Water Pump And Front Cover)

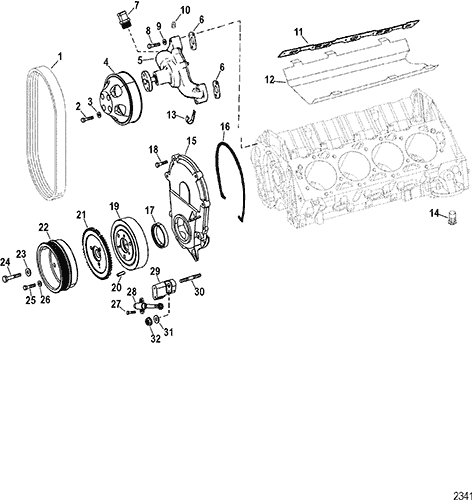

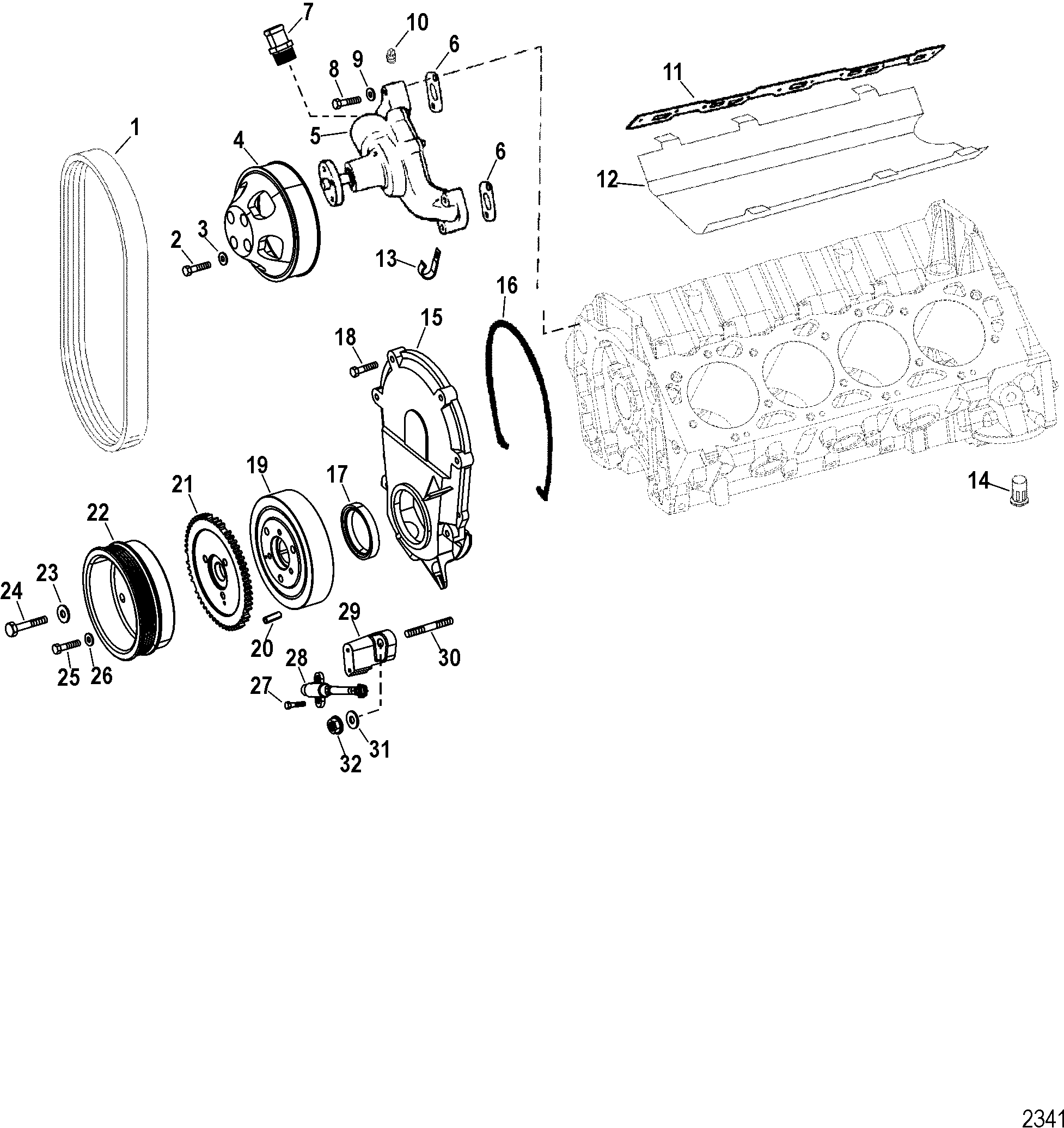

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 57-865615Q02



BELT, Serpentine 1 57-8638762 Design I - Belt Center Distance 992.5 mm SN# 0M900146 THRU 0M951500
1 57-865615Q12



BELT, Serpentine 1 57-865615012 Design II - Belt Center Distance 983.0 mm SN# 0M953031 THRU 0M953619
2 10-849377



SCREW, (.312-24 x .750) Stainless Steel 4

3 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

4 842444T



PULLEY, Circulating Water Pump - Blue 1

5 811573A04



PUMP ASSEMBLY, Circulating Water 1 811573A03 5
6 27-49110
676-9-60066 700-31770
GASKET, Circulating Water Pump Mount 2
2,5
7 22-806242



CONNECTOR, Hose 1
5
8 10-842787



SCREW, (.375-16 x 2.00) Stainless Steel 3
5
9 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3
5
10 22-845174



PLUG, (.500-14 x .610) Brass 1
5
11 27-843073



GASKET, Intake Manifold Mount 2 27-843134 2,5
12 845756T



SHIELD, Oil Intake, Heat 1 816073 5
13 54-78945



J CLAMP, Harness Support 1
5
14



VALVE, Relief, Oil By Pass - 30 PSI 1
5
15 845610T



COVER ASSEMBLY, Cylinder Front 1
5
16 27-850456



GASKET, Front Cover Mount 1
2,5
17 26-8219471
676-9-61612

SEAL, Oil 1
2,5
18 10-F2030



SCREW, (.250-20 x 1.250) Stainless Steel 6
5
19 845625T03



DAMPER 1
5
20 17-58997



PIN, Roll (.164 x .750) 1

21 8M0050961



WHEEL, Sensor Target 1 841225001 5
22 843119T



PULLEY, Blue 1
5
23 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 3
5
24 10-8431471



SCREW, (.375-16 x 1.750) 3
5
25



SCREW, (.500-20 x 2.500) 1 10-811559 5
26 12-8413901



WASHER, (.520 x 2.063 x .280) 1
5
27 10-4010516



SCREW, (M5 x 16) Stainless Steel 2

28 8283582



SENSOR, Crankshaft 1

29 8412241



BRACKET, Sensor Mount 1

30 16-59579



STUD, (.437-14/.437-20 x 2.812) 1

31 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 1

32 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 1

- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841178A1



PARTIAL ENGINE ASSEMBLY 1
