525 EFI - Serial 0M900146 Thru 0M953619 - Fuel Pump And Fuel Cooler

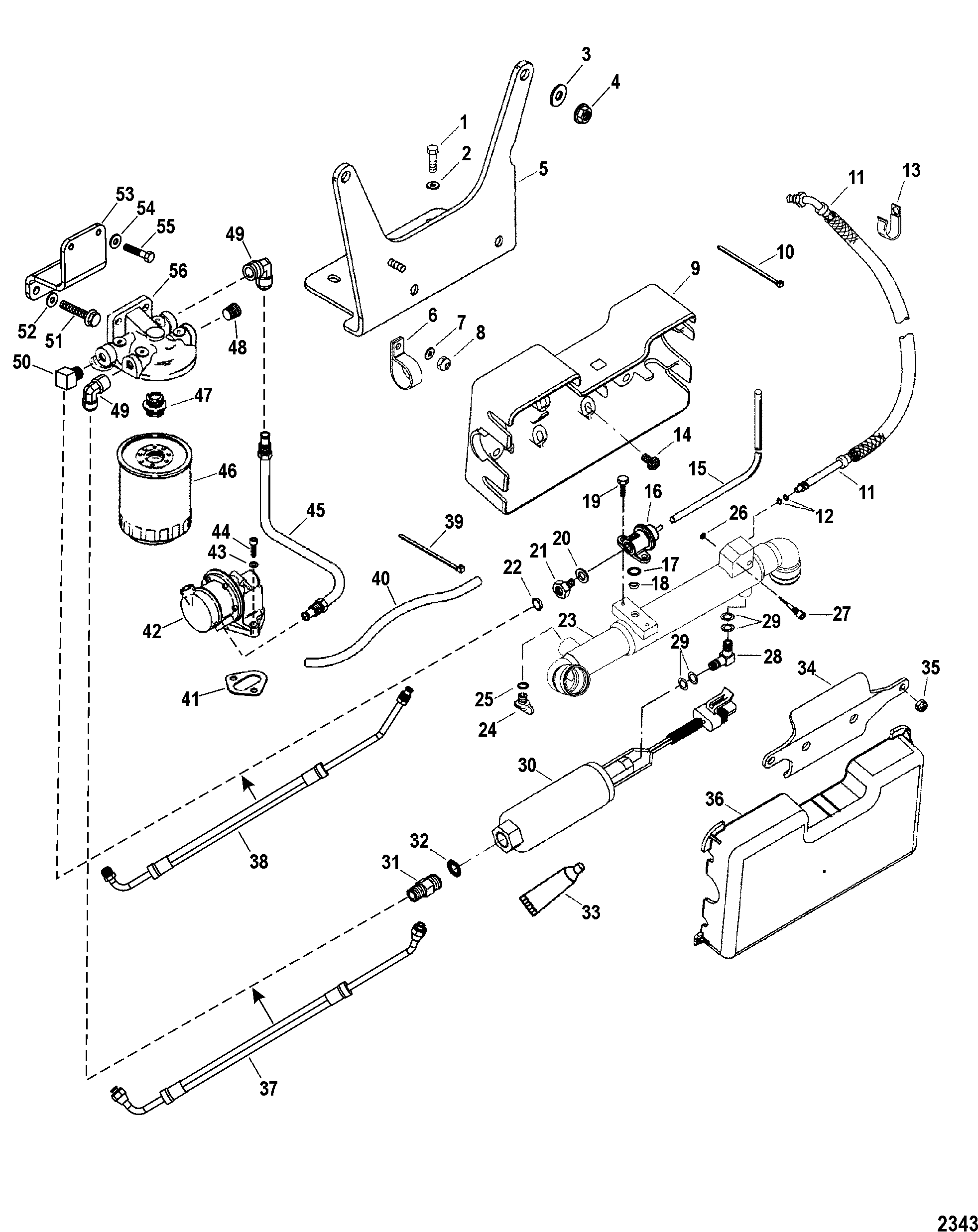

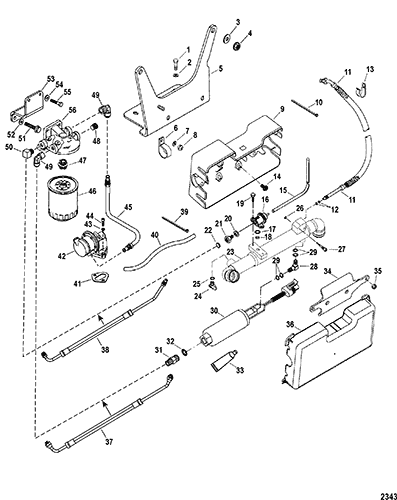

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 10-64014



SCREW, (.250-28 x .500) 4

2 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 4

3 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 3

4 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 3

5 8M0050909



BRACKET, Fuel Cooler 1 849904
6 54-62494



CLIP, Hose Support 1

7 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

8 11-82670912



NUT, (.375-16) Stainless Steel 1

9 807685T3



INSULATOR, Base 1

10 54-816311T

700-21465
TIE STRAP, (8.00 Inches) AR

11 32-841150T



LINE ASSEMBLY, Fuel, Cooler To Fuel Rail 1
SN# 0M900146 THRU 0M900741
11 32-843454T



LINE ASSEMBLY, Fuel, Cooler To Fuel Rail 1
SN# 0M900742 THRU 0M953619
12 25-805063



O-RING, (.301 x .070) 2
2
13 54-848183



J CLIP, Fuel Line To Port Mount 2

14 269011



BUMPER, Rubber 8

15 32-8M0063567



HOSE, (58.00 Inches Bulk), Cut 52.00 Inches - To Rear TBI 1 32-80617382
16 861126A1
676-9-33206

REGULATOR KIT, (43 PSI), Fuel Pressure 1

17 25-805531



O-RING, (.476 x .075) 1
2
18 35-805406



FILTER, Fuel Pressure Regulator 1

19 10-852368



SCREW, (#10-24 x .750) 2

20 12-36533



WASHER, (.328 x .562 x .0312) Copper 1
2
21 22-8080021



FITTING, Stainless Steel 1

22 27-848438



GASKET, Flare 1
2
23 849929A02



COOLER KIT, Fuel 1 849929A1
24 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
25 25-831985



O-RING, (.468 x .078) 1
2
26 53-861414



RING, Retaining, Design I - Used With Screw 10-861414 1

27 10-866114



SCREW, (.250-28) Special 1 10-861303 Design I - Used With Retaining Ring
27 10-866114



SCREW, (.250-28) Special 1
Design II - No Retaining Ring
28 22-807783A1



FITTING ASSEMBLY, 90 Degree 1

29 25-805063



O-RING, (.301 x .070) 4
2
30 841080T01



PUMP ASSEMBLY, Fuel, With Ref Numbers 29 And 32 1 841080T
31 22-808001A1



FITTING ASSEMBLY 1

32 25-805062



O-RING, (.530 x .082) 1
2
33 92-805701



COMPOUND, Heat Transfer (6 Grams) AR

34 807979T



BRACKET 1

35 11-29598



NUT, (.250-28) Stainless Steel 2

36 807930T01



INSULATOR, Fuel Cooler Cover 1 807930
37 32-897345T60



LINE ASSEMBLY, Fuel, Seperator To Pump 1 32-841146T
38 32-897345T61



LINE ASSEMBLY, Fuel, Regulator To Seperator 1 32-841148T
39 56762



TIE STRAP, (4.00 Inches) 2

40 32-8M8023638



TUBING, (54.00 Inches Bulk), Cut 48.00 Inches 1 32-84862872
41 27-34213
676-9-61041 700-31360
GASKET, Fuel Pump 1
2
42 889275T



PUMP ASSEMBLY, Fuel 1 842429T
43 12-34931



WASHER, (.406 x .734 x .063) Stainless Steel 2

44 10-34354

700-22447
SCREW, (.375-16 x 1.50) 2

45 32-841153T



LINE ASSEMBLY, Fuel, Pump To Seperator 1

46 35-802893TT



FILTER, Fuel/Water Separating - Mercury Brand 1

47 22-816133



FITTING 1

48 22-36373



PLUG, (.375-18) Hex - Steel 1

49 22-841079



CONNECTOR 2

50 22-19697



ELBOW 1

51 10-805559



SCREW, (.375-16 x .875) Stainless Steel 2

52 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 2

53 841050



BRACKET, Fuel Seperator Mount 1

54 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 2

55 10-849377



SCREW, (.312-24 x .750) Stainless Steel 1

55 10-843144



SCREW, (.312-24 x .880) Stainless Steel 1

56 805373005



BASE, Seperator/Filter 1 8053734
- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
