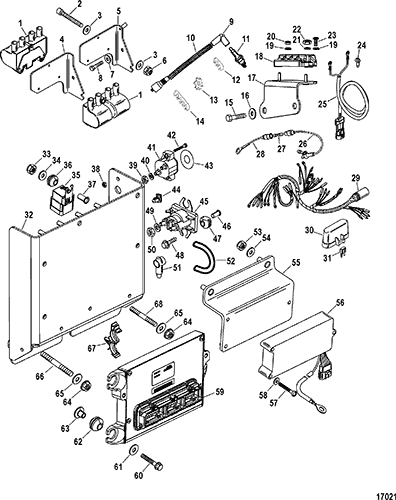

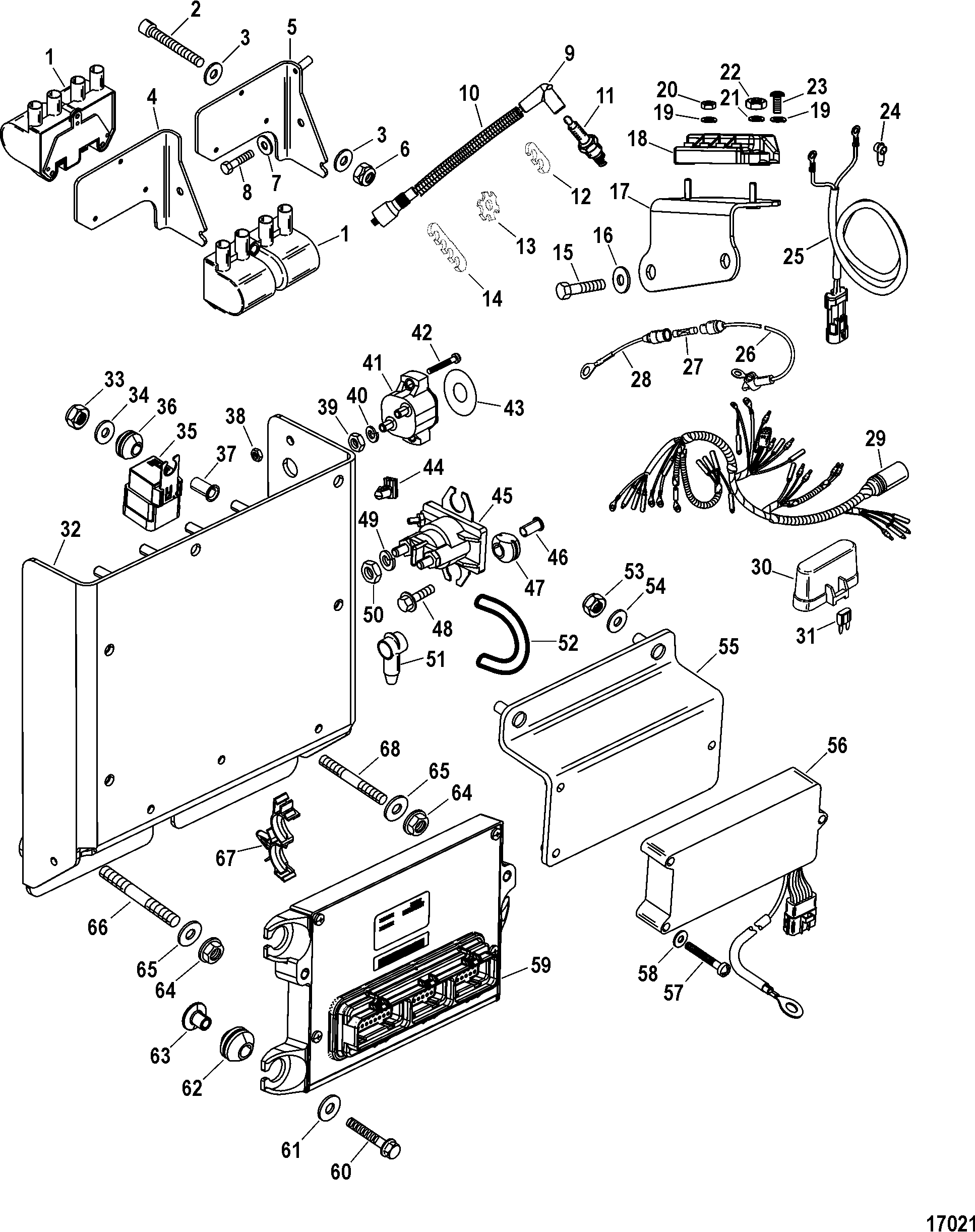

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
841203T |
|
|
|
|
COIL, Ignition |
2 |
|
|
| - |
37-841205 |
|
|
|
|
DECAL SHEET, Coils And Relays, Four Sets Per Sheet |
1 |
|
|
| 2 |
10-848920 |
|
|
|
|
SCREW, (.250-20 x 2.50) |
3 |
|
|
| 3 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
6 |
|
|
| 4 |
841214002 |
|
|
|
|
BRACKET |
1 |
8412141 |
Design I - Coil Mount |
| 5 |
841214002 |
|
|
|
|
BRACKET |
1 |
|
Design II - Coil Mount/Fuel Filter |
| 6 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
3 |
|
|
| 7 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
1 |
|
|
| 8 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
1 |
|
|
| 9 |
84-840955T01 |
|
|
|
|
CABLE SET, Ignition - Blue Wires |
1 |
|
|
| 10 |
32-828547253 |
|
|
|
|
CONDUIT, (.250 Inside Diameter x 3.00 Feet Bulk), Cut As Required |
AR |
|
|
| - |
843137A01 |
|
|
|
|
MARKER SET, Ignition Cables, Includes Two Each Of 1 Thru 8 Numbers |
1 |
|
|
| 11 |
33-810883 |
|
|
|
|
SPARK PLUG |
8 |
|
5 |
| 12 |
54676 |
|
|
|
|
RETAINER, Two Wire |
4 |
|
|
| 13 |
32783 |
|
|
|
|
RETAINER, Three Wire |
2 |
|
|
| 14 |
32784 |
|
|
|
|
RETAINER, Four Wire |
2 |
|
|
| 15 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
2 |
|
|
| 16 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 17 |
840954T01 |
|
|
|
|
BRACKET, Controller Mount |
1 |
|
|
| 18 |
42600A09 |
|
|
|
|
CONTROLLER ASSEMBLY, Mercathode |
1 |
42600A3 |
|
| 19 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
5 |
|
|
| 20 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
| 21 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 22 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 23 |
10-62568 |
|
|
|
|
SCREW, (#10-16 x .375) |
1 |
|
|
| 24 |
85-65208 |
|
|
|
|
BOOT, Insulator - Black |
2 |
|
|
| 25 |
84-865181A01 |
|
|
|
|
HARNESS ASSEMBLY, Mercathode |
1 |
|
No longer made, limited availability |
| 26 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Red/Purple Stripe |
1 |
|
|
| 27 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 28 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches) Red, Red |
1 |
|
|
| 29 |
84-840945T06 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
84-840945T04 |
|
| 30 |
858754 |
|
|
|
|
COVER, Fuse |
2 |
|
|
| 31 |
88-832969T05 |
|
|
|
|
FUSE, Mini - Tan - 5 Ampere |
1 |
88-8329695 |
|
| 31 |
88-83296915 |
|
|
|
|
FUSE, Mini - Blue - 15 Ampere |
3 |
|
|
| 31 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
5 |
88-83296920 |
|
| 31 |
88-83296930 |
|
|
|
|
FUSE, Mini - Green - 30 Ampere |
1 |
|
|
| 32 |
840984T01 |
|
|
|
|
BRACKET, PCM Mount |
1 |
|
|
| 33 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
4 |
|
|
| 34 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
4 |
|
|
| 35 |
882751A1 |
|
|
700-73040 |
|
RELAY ASSEMBLY |
4 |
|
|
| 36 |
25-818967 |
|
|
|
|
GROMMET |
4 |
|
|
| 37 |
23-818968 |
|
|
|
|
BUSHING |
4 |
|
|
| 38 |
11-61356 |
|
|
|
|
NUT, (#10-32) Reduced Hex |
2 |
|
|
| 39 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 40 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 41 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 42 |
10-96113 |
|
|
|
|
SCREW, (#10-32 x .880) Stainless Steel |
2 |
|
|
| 43 |
37-72554 |
|
|
|
|
DECAL, Circuit Breaker |
1 |
|
|
| 44 |
54-879962 |
|
|
|
|
CLIP, Connector |
3 |
|
|
| 45 |
89-850187T1 |
|
|
|
|
SOLENOID ASSEMBLY, Starter |
1 |
|
|
| 46 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 47 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 48 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
| 49 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 50 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
2 |
|
|
| 51 |
85-880787 |
|
|
|
|
BOOT, Insulator - Yellow |
1 |
|
|
| 51 |
85-880786 |
|
|
|
|
BOOT, Insulator - Red |
3 |
|
|
| 52 |
8M0062940 |
|
|
|
|
SEAL, 6 Inches |
1 |
|
|
| 53 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
2 |
|
|
| 54 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
2 |
|
|
| 55 |
8424491 |
|
|
|
|
BRACKET, Module Mount |
1 |
|
|
| 56 |
841155T01 |
|
|
|
|
MODULE ASSEMBLY |
1 |
|
|
| 57 |
10-40019111 |
|
|
|
|
SCREW, (M5 x 35) |
3 |
|
|
| 58 |
12-843486 |
|
|
|
|
WASHER, (.203 x .438 x .037) Stainless Steel |
3 |
|
|
| 59 |
879148T73 |
|
|
|
|
PCM, Propulsion Control Module, Programmed Control Module |
1 |
840947005 |
|
| 60 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
3 |
|
|
| 61 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 62 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 63 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 64 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
2 |
|
|
| 65 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 66 |
16-57984 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.380) |
1 |
16-579841 |
|
| 67 |
54-858954 |
|
|
|
|
CLIP, (.625), Harness Support |
AR |
|
|
| 67 |
54-883066 |
|
|
|
|
CLIP, (.865), Harness Support |
AR |
|
|
| 67 |
54-858755 |
|
|
|
|
CLIP, (1.00), Harness Support |
AR |
|
|
| 68 |
16-579203 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.060) |
1 |
|
|
| - |
841178A1 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
