525 EFI - Serial 0M900146 Thru 0M953619 - Oil Pan And Oil Pump

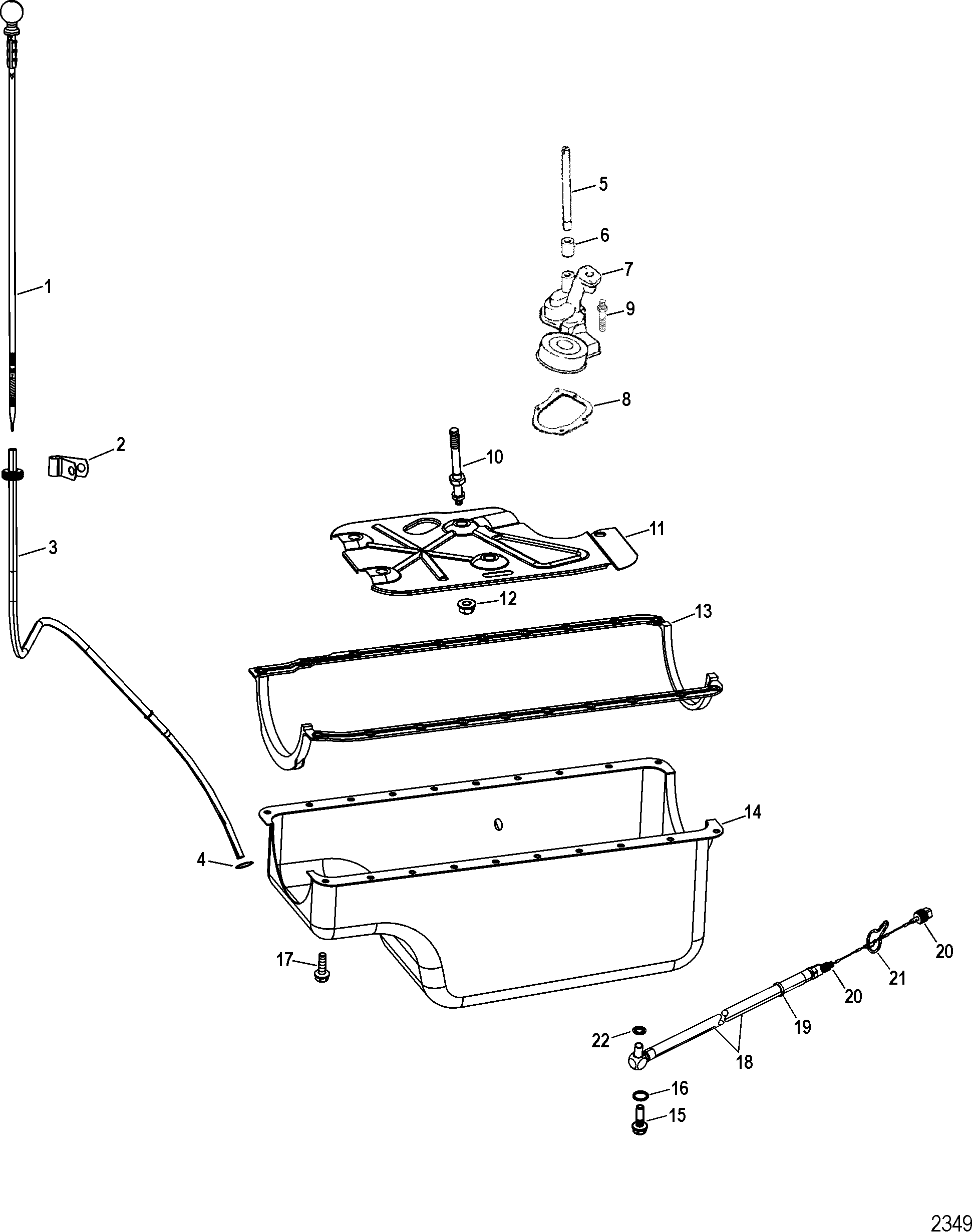

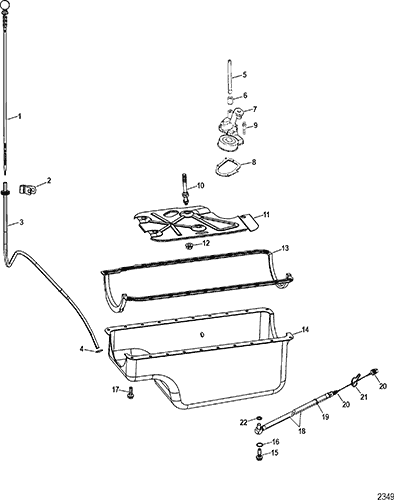

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861942T9 | DIPSTICK, Oil Level | 1 | ||||||
| 2 | 54-843023 | J CLIP, Dipstick Tube Support | 1 | 54-841227 | |||||
| 3 | 843141A2 | TUBE ASSEMBLY, Dipstick | 1 | ||||||
| 4 | 25-62704 | 676-9-43631 | 700-81090 | O-RING, (.362 x .103) | 1 | 2 | |||
| 5 | 14761 | SHAFT AND RETAINER | 1 | 5 | |||||
| 6 | 23-36183 | RETAINER | 1 | 5 | |||||
| 7 | 827643 | PUMP ASSEMBLY, Oil | 1 | 5 | |||||
| 8 | FI5000254 | GASKET, Oil Pump Cover | 1 | This Part is No Longer Available 5 | |||||
| 9 | 16-845599 | STUD, (.375-16/.438-14 x 3.00) | 1 | 5 | |||||
| 10 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | 5 | |||||
| 11 | 843945T | BAFFLE, Oil Deflector | 1 | 845601T | 5 | ||||
| 12 | 11-845602 | NUT, (.375-16) | 5 | 5 | |||||
| 13 | 27-845628 | 676-9-61508 | GASKET, Oil Pan | 1 | 2,5 | ||||
| 14 | 845668T | PAN ASSEMBLY, Oil | 1 | 5 | |||||
| 15 | 10-809911001 | SCREW, Oil Drain (M12 x 1.75) | 1 | 10-809911 | 5 | ||||
| 16 | 27-8M0077608 | GASKET, Oil Drain Screw | 1 | 27-49955 | 2 | ||||
| 17 | 10-841389 | SCREW, (.312-18 x .620) | 20 | 5 | |||||
| 18 | 32-865281A02 | HOSE KIT, Oil Drain (38.00 Inches) | 1 | Bravo Models | |||||
| 18 | 32-865280A02 | HOSE KIT, Oil Drain (92.00 Inches) | 1 | Driveline Models | |||||
| 19 | 54-863481 | CLAMP | 1 | ||||||
| 20 | 862827 | TETHER ASSEMBLY | 1 | ||||||
| 21 | 54-805524 | CLIP | 1 | ||||||
| 22 | 27-8M0077608 | GASKET | 1 | 27-49955 | |||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||
| - | 841178A1 | PARTIAL ENGINE ASSEMBLY | 1 |
