525 EFI - Serial 0M900146 Thru 0M953619 - Power-Assisted Steering Components (849906A15)

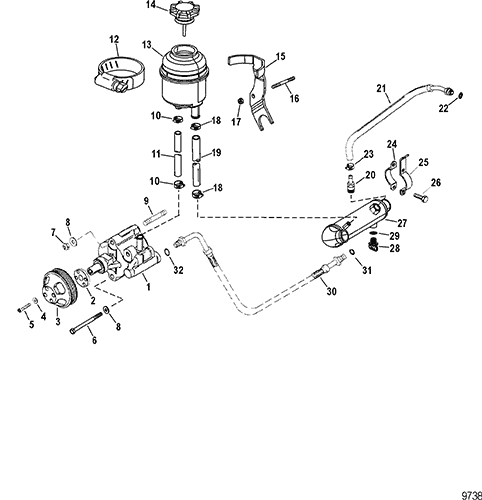

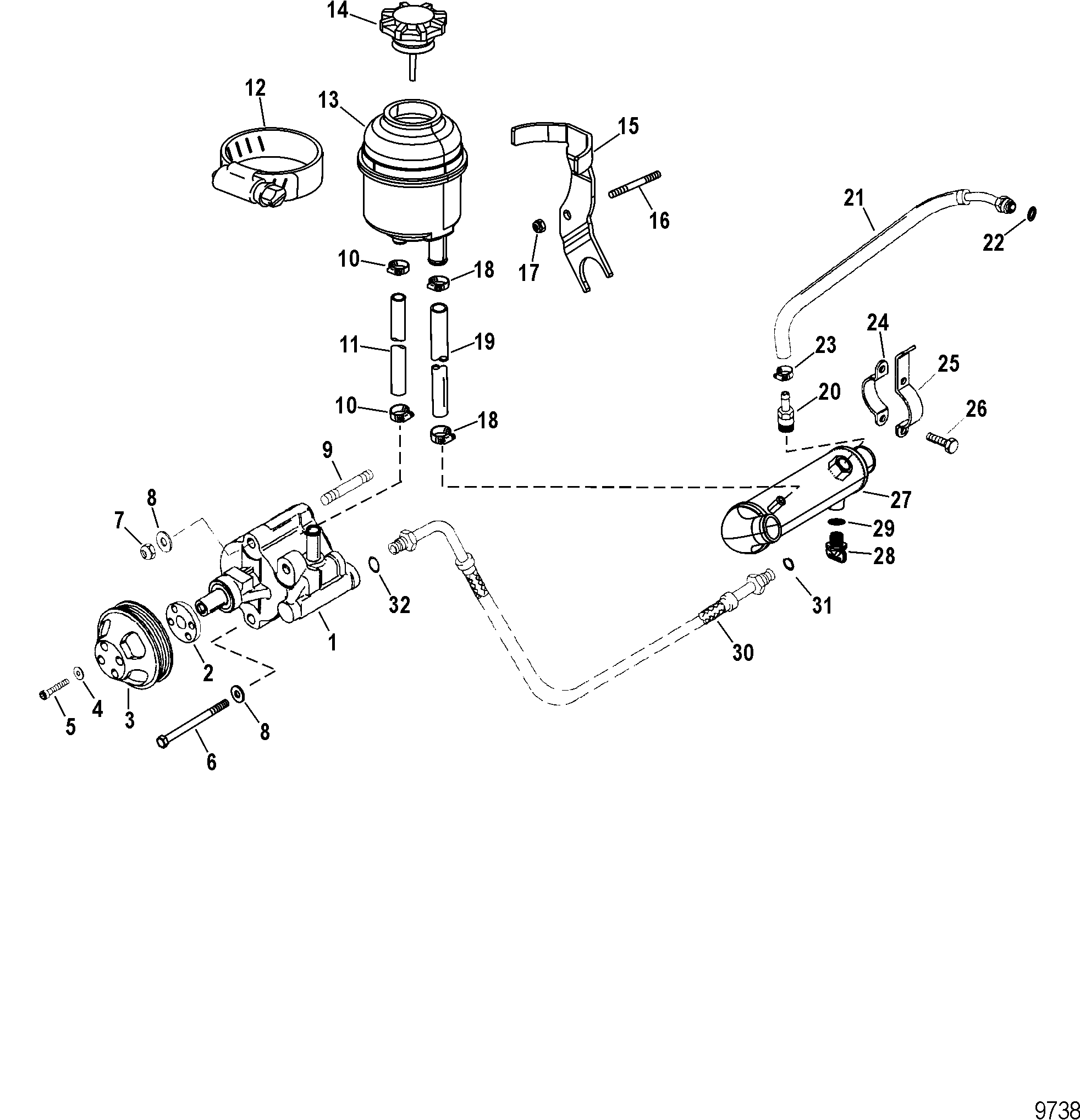

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849906A15         PUMP KIT, Power-Assisted Steering - Complete 1   This Part is No Longer Available
1 849906A28         PUMP ASSEMBLY, Power-Assisted Steering - Black 1

2 47530



HUB, Pump Pulley 1

3 842445T



PULLEY, Blue 1

4 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

5 10-849377



SCREW, (.312-24 x .750) Stainless Steel 4

6 10-843575



SCREW, (.375-16 x 4.00) Stainless Steel 1

7 11-82671013


525-11-82671013 NUT, (.375-24) Stainless Steel 1

8 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 2

9 16-849375



STUD, (.375-24 x 3.750) 1

10 54-815504406



CLAMP, Worm Gear 2

11 32-891599002



HOSE, (10.62 Inches), Reservoir To Pump 1

12 54-18076016



CLAMP, Worm Gear 1

13 865264T



RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering 1

14 8M0050237



CAP, Oil Reservoir - Black 1 865263001
15 8M0050830



BRACKET 1 844160
16 16-818824



STUD, (.375-16/.375-24 x 1.590) 1

17 11-82671013


525-11-82671013 NUT, (.375-24) Stainless Steel 1

18 54-815504105



CLAMP, Worm Gear (11-18 mm) 2

19 32-8M0062341



HOSE, (53.00 Inches Bulk), Cut 25.00 Inches - Reservoir To Cooler 1 32-5251914
20 22-70834



CONNECTOR, (.375-18) Straight - Brass 1

21 32-80622142



HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches 1

22 25-89879



O-RING, (.301 x .064) 1
2
23 54-815504105



CLAMP, Worm Gear (11-18 mm) 1

24 563281



BRACKET, Oil Cooler - Short Style With Weldnut 1

25 63820F3



BRACKET, Oil Cooler - Long Style 1 638203
26 10-817505



SCREW, (.250-20 x .620) Stainless Steel 2

27 899745T02



COOLER, Power Steering Oil 1 841064T01
28 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
29 25-831985



O-RING, (.468 x .078) 1
2
30 32-84243550



HOSE ASSEMBLY, Hi Pressure - Pump To Booster 1

31 25-806232



O-RING, (.239 x .064) 1
2
32 25-89879



O-RING, (.301 x .064) 1
2
- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
