525 EFI - Serial 0M900146 Thru 0M953619 - Exhaust Header - Tailpipe Assembly

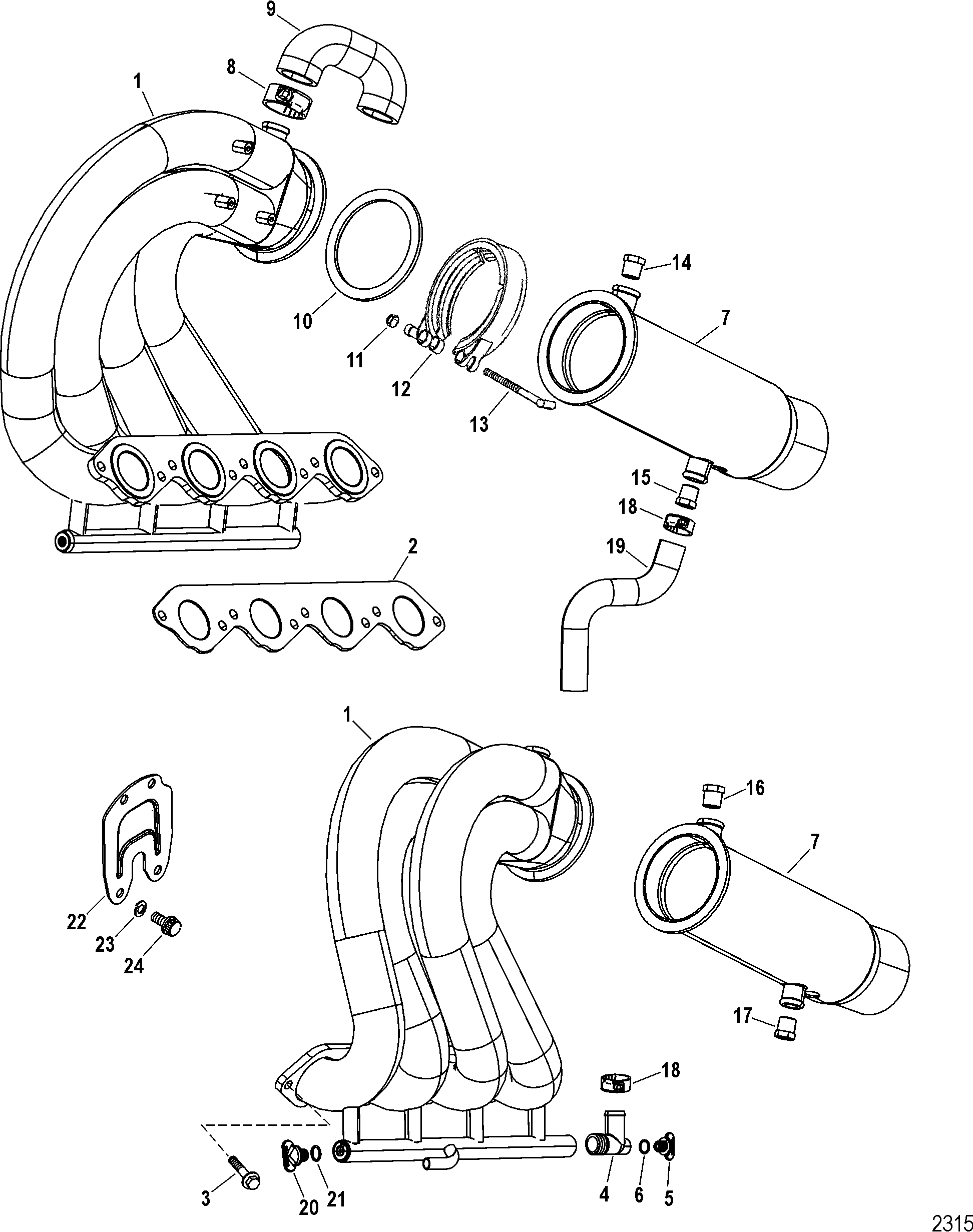

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	843934T03					HEADER KIT, Exhaust	1	843404T01	This Part is No Longer Available - Port
1	843933T03					HEADER KIT, Exhaust	1	843405T01	This Part is No Longer Available - Starboard
2	27-840940					GASKET, Exhaust Header	2		2,5
3	10-821131					SCREW, (.375-16 x 1.00)	16
4	22-862210A01		676-9-41206	700-13991		ELBOW KIT, Drain	2	22-806926A1
5	22-806608A02			700-13992		PLUG KIT, (.500-13) Royal Blue	2	22-806608A1
6	25-831985					O-RING, (.468 x .078)	2		2
7	843384A1					TAILPIPE ASSEMBLY, Port	1		This Part is No Longer Available - Bravo Models Please email and ask us for the service bulletin regarding this part
7	843384A2					TAILPIPE ASSEMBLY, Starboard	1		Bravo Models
8	54-180763					CLAMP, Worm Gear	4
9	32-8424181					HOSE, Molded	2
10	27-842454					GASKET, Tailpipe	2		2
11	11-82671110					NUT, (.250-20)	2	11-842458
12	54-842456					CLAMP, Band	2
13	10-842457					T BOLT, (.250-20)	2
14	22-842453389					FITTING, Restrictor (.389)	1
15	22-842453192					FITTING, Restrictor (.192)	1
16	22-842453406					FITTING, Restrictor (.406)	1
17	22-842453201					FITTING, Restrictor (.201)	1
18	54-180764					CLAMP, Worm Gear	4
19	32-842754					HOSE, Molded, Header To Tailpipe	2	32-849939001
20	22-806608A02			700-13992		PLUG KIT, (.500-13) Royal Blue	2	22-806608A1
21	25-831985					O-RING, (.468 x .078)	2		2
22	861776A2					PLATE KIT	1
23	13-41471					LOCKWASHER, (.375)	4
24	10-98794		676-9-78129	700-28300	525-10-98794	SCREW, (.375-16 x 1.00)	4
-	27-843073A06					GASKET/SEAL SET, Engine Overhaul	1	27-843073A03	NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
-	841178A1					PARTIAL ENGINE ASSEMBLY	1
