525 EFI - Serial 0M900146 Thru 0M953619 - Engine Components (Cylinder Block And Camshaft)

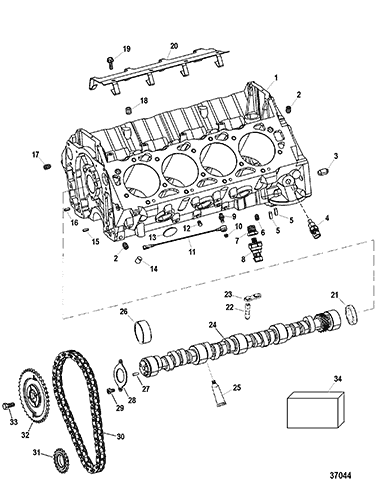

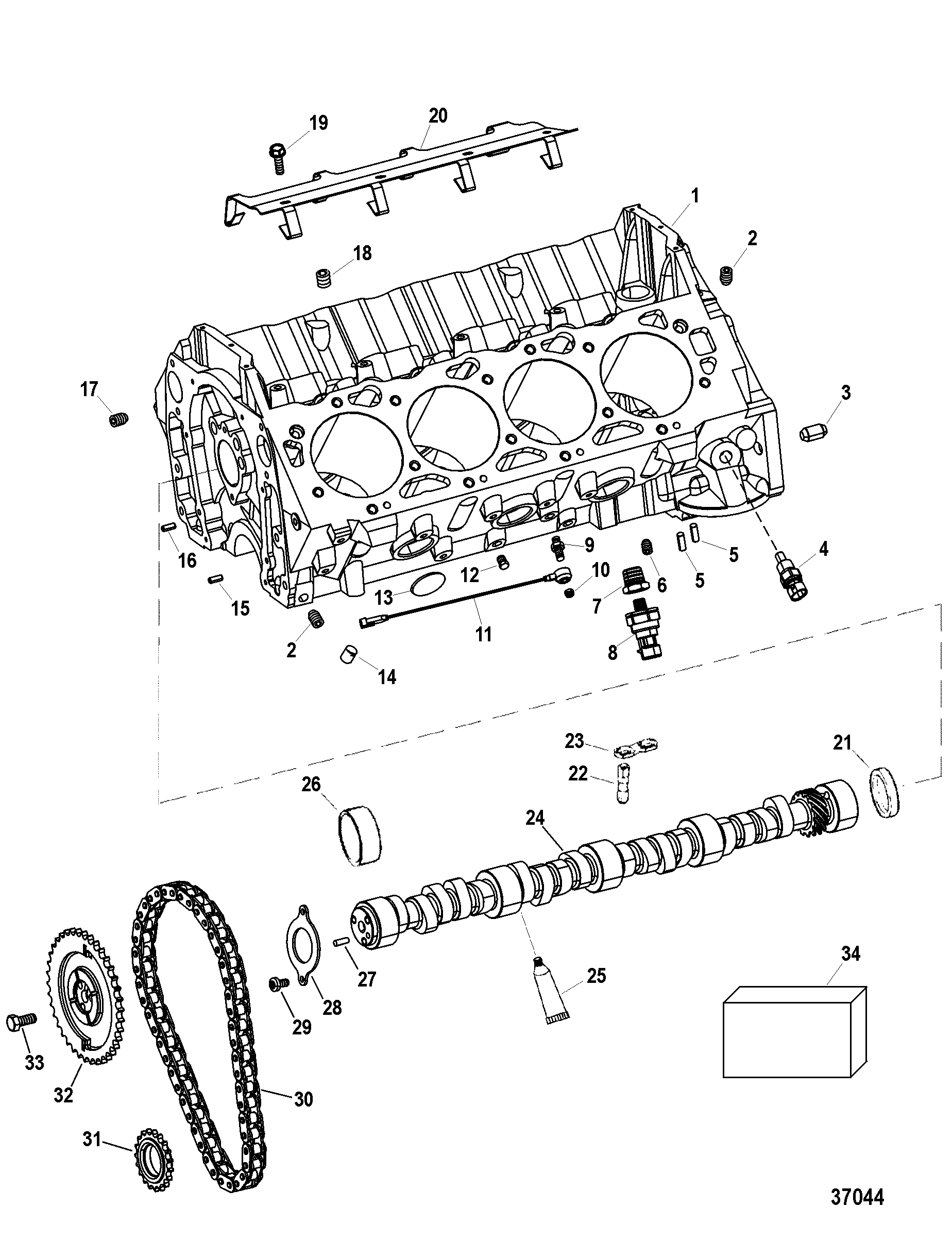

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 841178A1



PARTIAL ENGINE ASSEMBLY 1
NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108
2 22-32561



PLUG, Pipe - Allen Head (.250-18), Oil Gallery Rear Cam Plugs 3
5
3 17-843379



PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing 2
5
4 805218T
676-9-42402

SENSOR, Coolant 1

5 17-843378



PIN, Dowel (1/4 In. Diameter) (.250) Bottom Of Block 2 17-35312 5
6 22-36373



PLUG, (.375-18) Hex - Steel, Bottom Of Block Oil Plug 1
5
6 22-36373



PLUG, (.375-18) Hex - Steel, Rear Of Block Oil Plugs 2
5
7 22-64013



FITTING, (.375 Male To .125 Female) 1

8 881879T11



SENSOR, Pressure (0 - 100 PSI), Oil Pressure 1 881879011
9 16-862915



STUD, (.250-18/M10 Special), Knock Sensor Assembly Mount 2

10 11-826292



NUT, (M10) Brass/Nickel Plated 2

11 878187



SENSOR ASSEMBLY, Knock 2

12 22-36382

700-21887
FITTING, (.250-18 x .62) Brass, Lower Side Of Block 2
5
13 19-34270



EXPANSION PLUG, (1.625) 6
5
14 17-845758



PIN, Dowel, .660 Relaxed Outside Diameter x .500 4
5
15 17-843143



PIN, Spring, Port Side - Timing Cover 1
5
16 17-843378



PIN, Dowel (1/4 In. Diameter) (.250) Timing Cover 1 17-35312 5
17 845606



PLUG, (.250-18 x .410) Allen Head With Hole, Oil Gallery 2
5
18 22-328022



PLUG, Pipe (.125-27) Brass, Oil Gallery 3
5
19 10-841389



SCREW, (.312-18 x .620) 4
5
20 8M0050807



RETAINER, Lifter Guide 1 845755 5
21 19-94140



EXPANSION PLUG 1
5
22 849947T01



LIFTER 16 849947T 5
23 845754



GUIDE, Lifter 8
5
24 8M0043065



CAMSHAFT 1 2409-840919T 5
25 92-15875



LUBE, Camshaft (8 Ounces) AR

26 23-85684



BEARING SET 1
5
27 17-843378



PIN, Dowel (1/4 In. Diameter) (.250) 1 17-35312 5
28 845941



RETAINER, Gear Thrust 1
5
29 10-845943



SCREW, (.250-20 x .500) 2
5
30 8M8023355



TIMING SET KIT 1
5
31 NSS



NOT SOLD SEPARATE, Crankshaft Sprocket 1
This Part is not sold separately 5
32 NSS



NOT SOLD SEPARATE, Camshaft Sprocket 1
This Part is not sold separately 5
33 10-845942



SCREW, (.312-18 x .750) 3
5
34 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
