525 EFI - Serial 0M900146 Thru 0M953619 - Shift Bracket Components (Bravo - Design I)

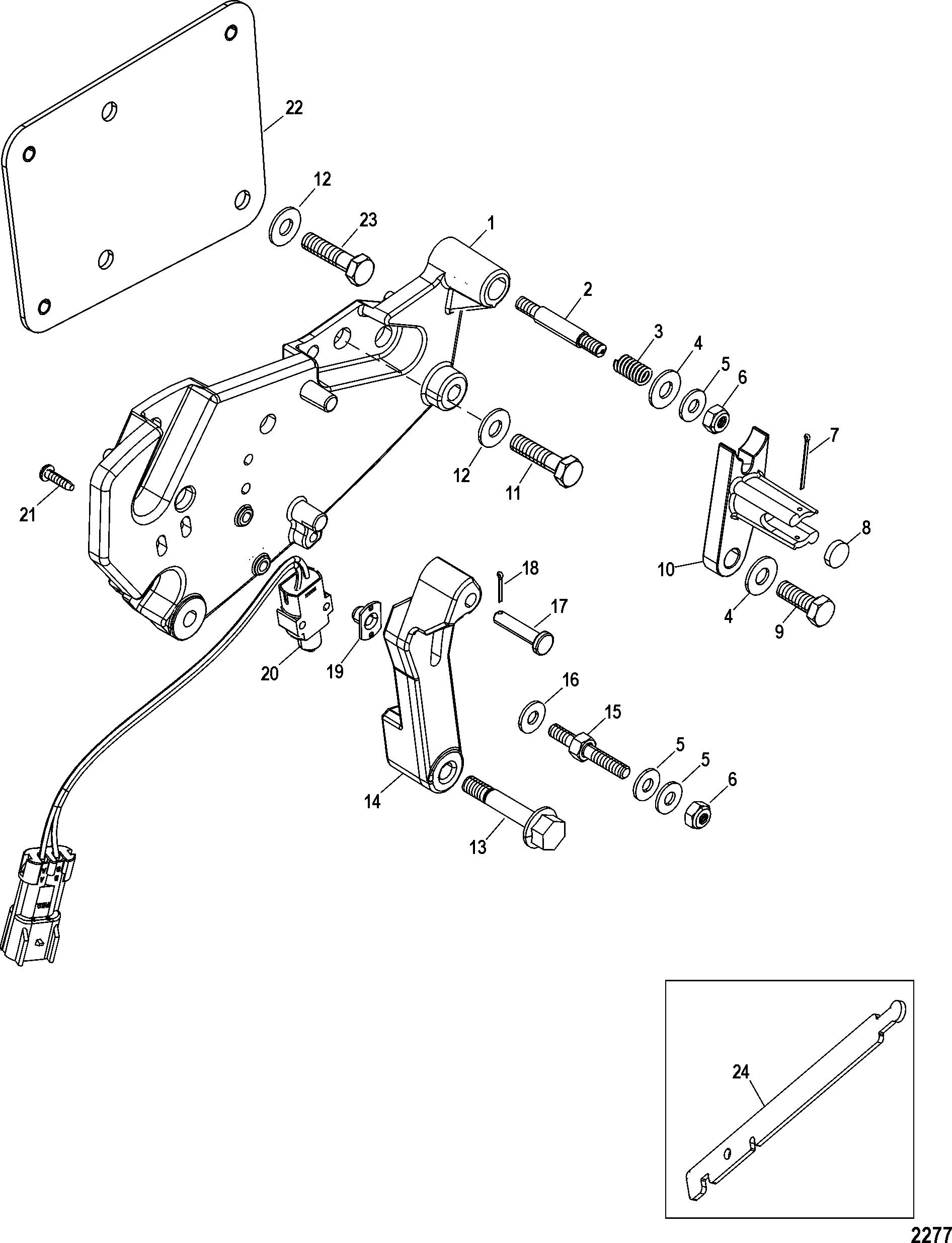

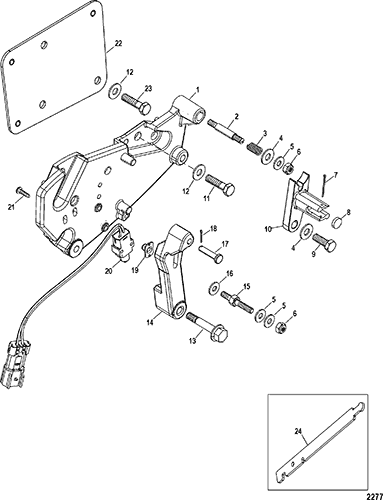

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | 807962A10 | |||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120), Shift Cable | 1 | 16-987981 | |||||
| 3 | 24-98880 | SPRING | 1 | ||||||
| 4 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 5 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 6 | 11-8267119 | NUT, (.250-28) | 2 | ||||||
| 7 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 8 | 23-98828 | SPACER | 1 | ||||||
| 9 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 10 | 865434A02 | RETAINER, Shift Cable | 1 | 12381F1 | |||||
| 11 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 12 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 6 | ||||||
| 13 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 14 | 863911A2 | LEVER ASSEMBLY, Shift | 1 | ||||||
| 15 | 16-865393A02 | STUD, (.250-28 x 1.90) | 1 | 16-961123 | |||||
| 16 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 17 | 17-68402 | PIN, (.250 x 1.13), Clevis | 1 | ||||||
| 18 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 19 | 11-63341 | TEE NUT | 1 | ||||||
| 20 | 87-8M0052936 | SWITCH ASSEMBLY, Gear Indication | 1 | 87-808009A3 | |||||
| 21 | 10-88904 | SCREW, (#8-18 x .620) | 2 | ||||||
| 22 | 840980 | PLATE, Shift Mounting | 1 | ||||||
| 23 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 3 | ||||||
| 24 | 91-12427 | TOOL, Shift Adjust | 1 |
