525 EFI - Serial 0M900146 Thru 0M953619 - Oil Cooler And Oil Filter (Engine)

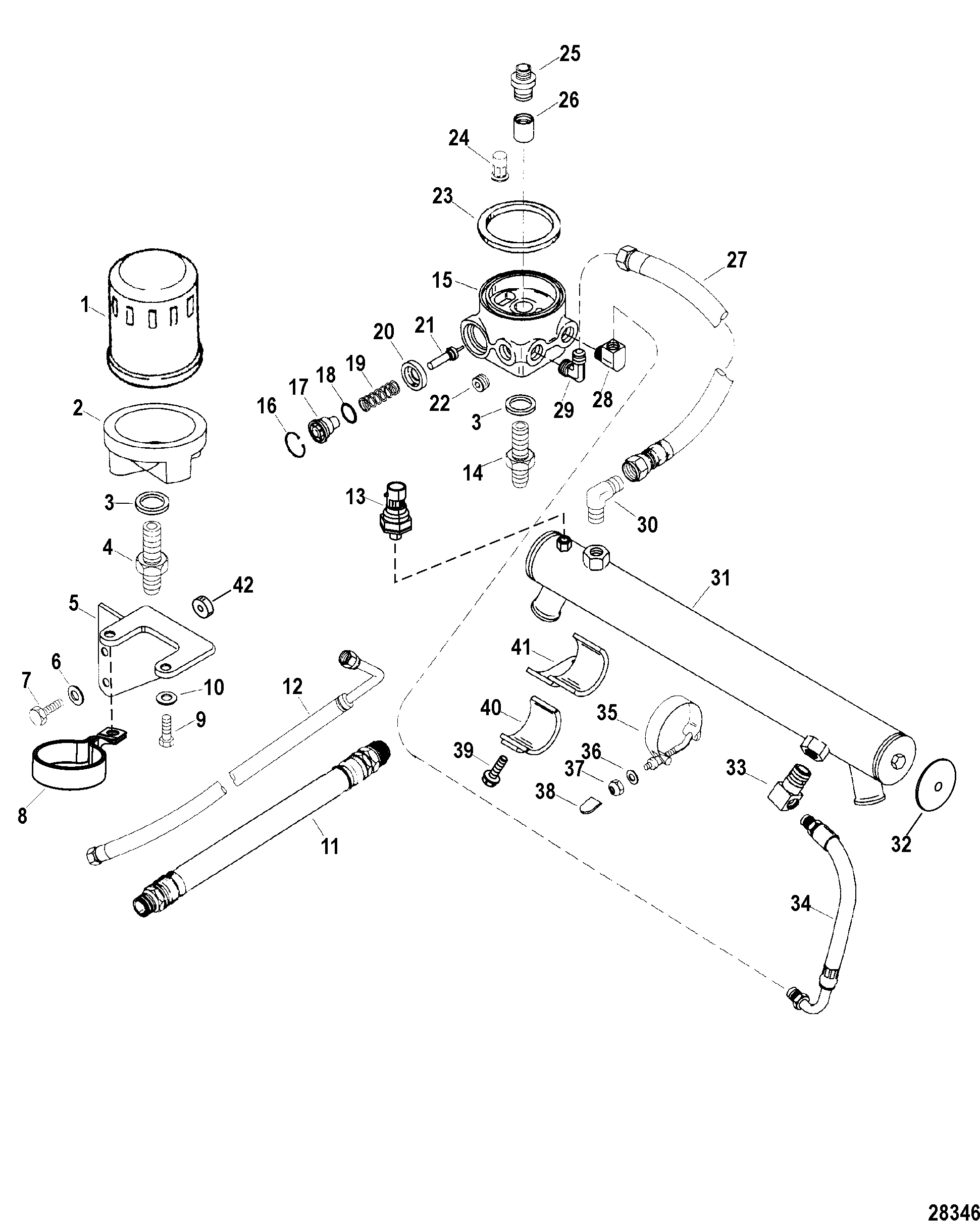

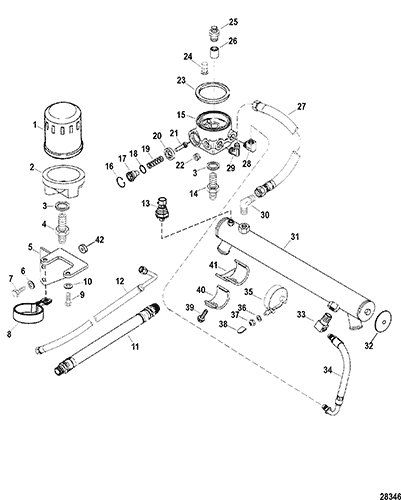

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 35-881126K01



FILTER, Oil 1 35-16595T1
2 35-806329T



ADAPTOR, Oil Filter 1

3 26-42077



SEAL 2
2
4 22-806328



FITTING, Oil Filter Adaptor 1

5 849907T



BRACKET, Filter Adaptor 1

6 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 2

7 10-94247



SCREW, (.375-16 x .750) Stainless Steel 2
SN# 0M900146 THRU 0M951500
7 10-35047



SCREW, (.375-16 x 1.250) Stainless Steel 2
SN# 0M953031 THRU 0M953619
8 54-8M0011102



CLIP, Hose Support 1 54-847747002
9 10-845856



SCREW, (.312-18 x .750) 2

10 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 2

11 32-849883



HOSE ASSEMBLY, Oil (31.750 Inches), Adaptor To Fiilter 1

12 32-849876T



HOSE ASSEMBLY, Oil (34.620 Inches), Filter To Adaptor 1

13 881879T11



SENSOR, Pressure (0 - 100 PSI), Water Pressure 1 881879011
14 22-806328



FITTING 1

15 849885A04



HOUSING ASSEMBLY, Oil Thermostat 1

15 849885T2



HOUSING, Oil Thermostat 1

16 53-848571



RING, Retaining 1

17 8161651



COVER, Oil Thermostat 1

18 25-864701



O-RING, (1.112 x .103) 1 25-47632 2
19 24-816162



SPRING 1

20 849983



PISTON, Oil Thermostat 1

21 8161631



THERMOSTAT 1

22 22-32561



PLUG, Pipe - Allen Head (.250-18) 1

23 25-32507



O-RING, (3.359 x .139) 1
2,5
24



VALVE, Relief, Oil By Pass - 30 PSI 1
5
25 22-805632



CONNECTOR, Oil Filter 1
5
26 22-841870



CONNECTOR, Oil Thermostat Housing 1

27 32-845126T



HOSE ASSEMBLY, Oil (26.50 Inches), Cooler To Adaptor 1

28 22-47630



ELBOW, 90 Degree 1

29 22-706811



ELBOW, 90 Degree 1

30 22-706811



ELBOW, 90 Degree 1

31 849952A03



COOLER ASSEMBLY, Oil 1 849952T01
32 8M0036570



GASKET 2 27-842785
33 22-47630



ELBOW, 90 Degree 1

34 32-842496



HOSE ASSEMBLY, Oil (8.80 Inches), Adaptor To Cooler 1 32-849884T
35 54-844664



CLAMP, T Bolt Band 2

36 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 2

37 11-35888
676-9-72001 700-21180
NUT, (.250-28) Stainless Steel 2

38 19-8079923



COVER, Hose Clamp End - Clamp Stud (.375) 2

39 10-805559



SCREW, (.375-16 x .875) Stainless Steel 2
Driveline And Six Drive Models
40 845459T



BRACKET, Oil Cooler 2
Driveline And Six Drive Models
41 849908T



BRACKET, Oil Cooler 2
Bravo Models
42 23-669952



SPACER, (.410 x 1.00 x .500) Aluminium - Black 2
SN# 0M953031 THRU 0M953619
- 27-843073A06



GASKET/SEAL SET, Engine Overhaul 1 27-843073A03 NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841178A1



PARTIAL ENGINE ASSEMBLY 1
