525 EFI - Serial 0M900146 Thru 0M953619 - Senders And Sensors

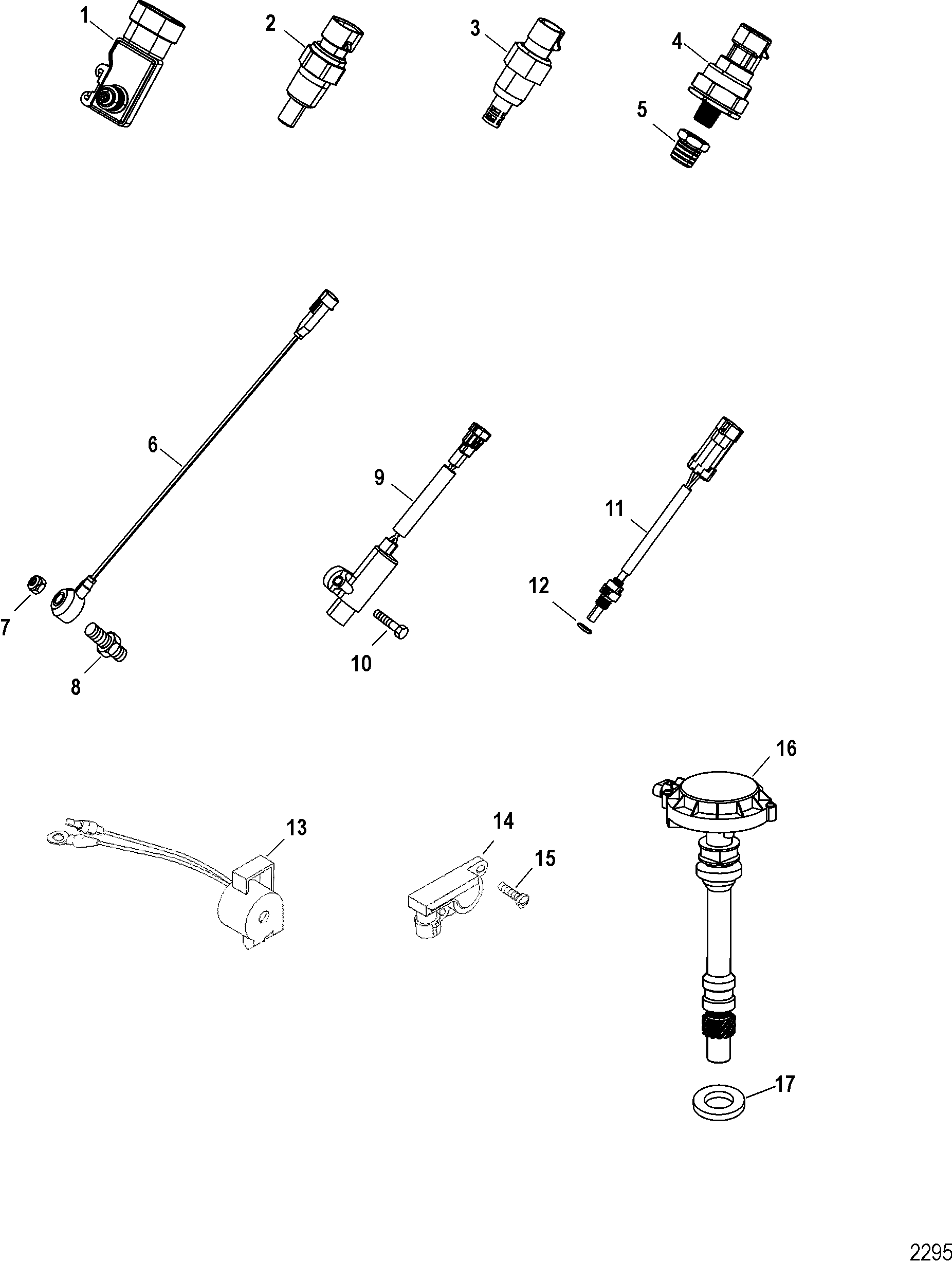

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	854445		676-9-33603			SENSOR, MAP, Manifold Absolute Pressure	1		NOTE: Also See Intake Plenum And Components Section
2	805218T		676-9-42402			SENSOR, Coolant Temperature	1		NOTE: Also See Cylinder Block And Camshaft Section
3	805223T		676-9-42406			SENSOR, Intake Air Temperature	1		NOTE: Also See Intake Plenum And Components Section
4	881879T11					SENSOR, Pressure (0 - 100 PSI), Oil Pressure	1	881879011	NOTE: Also See Cylinder Block And Camshaft Section
4	881879T11					SENSOR, Pressure (0 - 100 PSI), Fuel Pressure	1	881879011	NOTE: Also See Fuel Rails And Injectors Section
4	881879T11					SENSOR, Pressure (0 - 100 PSI), Water Pressure	1	881879011	NOTE: Also See Oil Cooler And Oil Filter Section
5	22-64013					FITTING, (.375 Male To .125 Female)	1		NOTE: Used With Oil Pressure Sensor - Also See Cylinder Block And Camshaft Section
6	878187		676-9-33502			SENSOR ASSEMBLY, Knock	2		NOTE: Also See Cylinder Block And Camshaft Section
7	11-826292					NUT, (M10) Brass/Nickel Plated, Knock Sensor Mounting	2
8	16-862915					STUD, (.250-18/M10 Special), Knock Sensor Mounting	2
9	8283582					SENSOR, Crankshaft Position	1		NOTE: Also See Circulating Water Pump And Front Cover Section
10	10-4010516					SCREW, (M5 x 16) Stainless Steel	2
11	885342002					SENSOR ASSEMBLY, Water Temperature	1	885342001	NOTE: Also See Closed Cooling System Section
12	25-896699					O-RING, (.351 x .072)	1	25-888814
13	816492A6					ALARM KIT, Audio Warning	1		NOTE: Remote Mounted Near Helm
14	849903					SENSOR, Throttle Position	1		NOTE: Also See Intake Plenum And Components Section
15	10-805400					SCREW, (#8-32 x .500) Stainless Steel	2
16	840982T01					SENSOR ASSEMBLY, Oil Drive/Camshaft	1	840982A1	NOTE: Also See Intake Manifold And Components Section
17	27-344863					GASKET	1
