| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

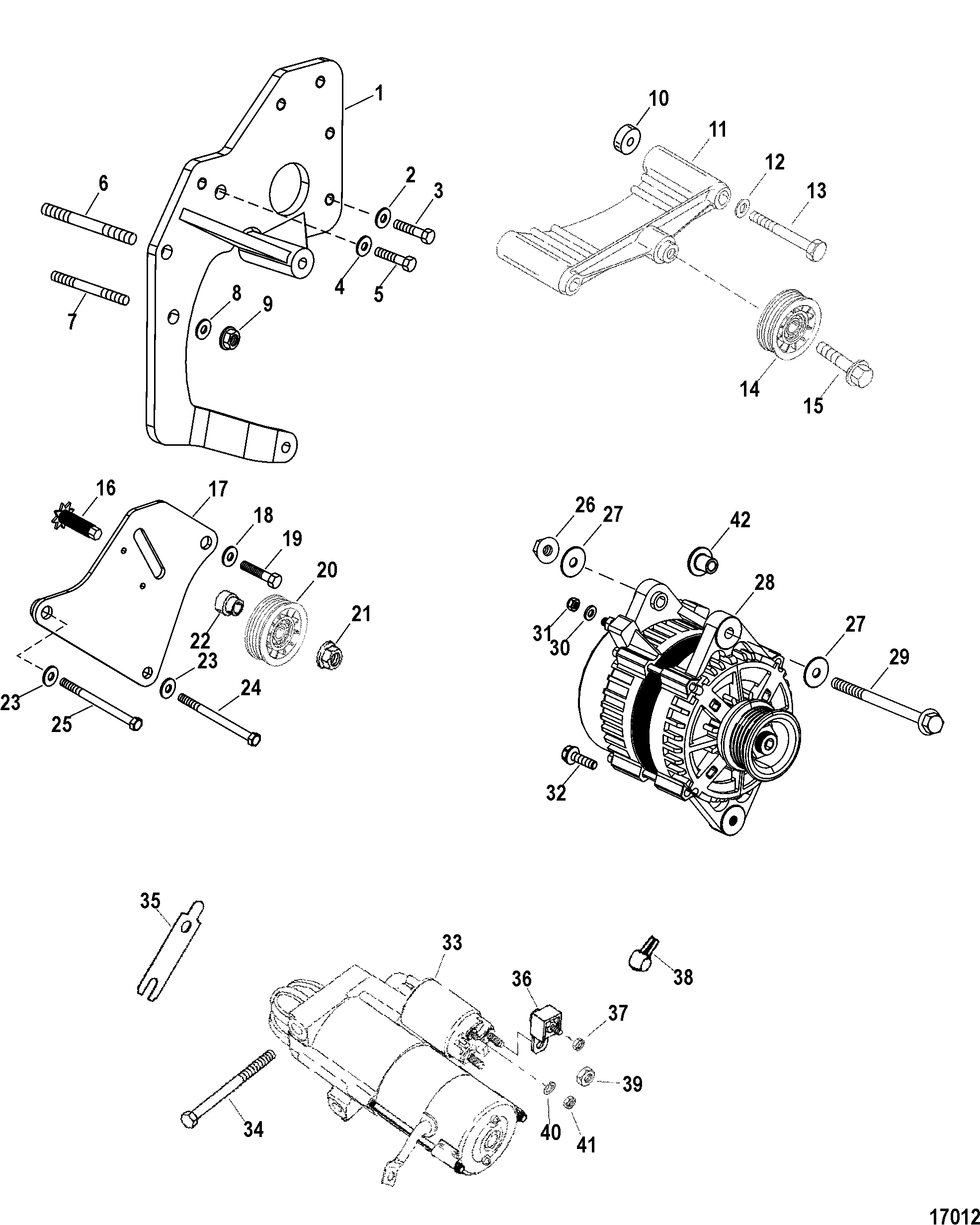

| 1 |
8M0050829 |
|
|
|
|
BRACKET, Alternator/Power Steering Mount |
1 |
8409351 |
|
| 2 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 3 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) Stainless Steel |
1 |
|
|
| 4 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
Non Power Steering Models |
| 5 |
10-65210 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
1 |
|
Non Power Steering Models |
| 6 |
16-59579 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.812) |
1 |
|
|
| 7 |
16-579203 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.060) |
1 |
|
|
| 8 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 9 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
2 |
|
|
| 10 |
23-669952 |
|
|
|
|
SPACER, (.410 x 1.00 x .500) Aluminium - Black |
2 |
|
Non Power Steering Models |
| 11 |
849297T1 |
|
|
|
|
BRACKET, Idler Pulley, Idler Pulley |
1 |
|
Non Power Steering Models |
| 12 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
Non Power Steering Models |
| 13 |
10-841154 |
|
|
|
|
SCREW, (.375-16 x 3.375) |
2 |
|
Non Power Steering Models |
| 14 |
864625T |
|
|
|
|
PULLEY ASSEMBLY, Idler - Black |
1 |
849296T |
Non Power Steering Models |
| 15 |
10-82130130 |
|
|
|
|
SCREW, (M10 x 30) |
1 |
|
Non Power Steering Models |
| 16 |
43-8183812 |
|
|
|
|
PINION STUD, (.437-20) Stainless Steel |
1 |
|
|
| 17 |
8M0065011 |
|
|
|
|
BRACKET, Tensioner |
1 |
8424431 |
|
| 18 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
1 |
|
|
| 19 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
1 |
|
|
| 20 |
807757T |
|
|
|
|
PULLEY ASSEMBLY, Idler - Black, Idler |
1 |
|
|
| 21 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
1 |
|
|
| 22 |
845117 |
|
|
|
|
BUSHING |
1 |
|
|
| 23 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 24 |
10-87302 |
|
|
|
|
SCREW, (.375-16 x 5.00) Stainless Steel |
1 |
|
|
| 25 |
10-841118 |
|
|
|
|
SCREW, (.437-14 x 5.50) Stainless Steel |
1 |
|
|
| 26 |
11-82670910 |
|
|
|
|
NUT, (.312-18) Stainless Steel |
1 |
|
|
| 27 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
SN# 0M900146 THRU 0M951500 |
| 27 |
12-F506186 |
|
|
|
|
WASHER, (.340 x .734 x .105) Stainless Steel |
2 |
|
SN# 0M953031 THRU 0M953619 |
| 28 |
863077T02 |
|
|
|
|
ALTERNATOR ASSEMBLY, Blue, Service Complete |
1 |
|
|
| 29 |
10-39001 |
|
|
|
|
SCREW, (.312-18 x 4.50) |
1 |
|
|
| 30 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
2 |
|
|
| 31 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
2 |
|
|
| 32 |
10-82155025 |
|
|
|
|
SCREW, (M8 x 25 MM) Stainless Steel |
1 |
|
|
| 33 |
50-8M8021116 |
|
|
|
|
STARTER MOTOR ASSEMBLY |
1 |
|
NOTE: See Starter Assembly Section For Parts Breakdown |
| 34 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33) |
2 |
|
|
| 35 |
15-8172721 |
|
|
|
|
SHIM, Special |
1 |
|
|
| 36 |
88-79023A91 |
|
|
|
|
FUSE ASSEMBLY, 90 Ampere |
1 |
|
0.375 Mounting Hole SN# 0M900146 THRU 0M951500 |
| 36 |
88-79023T90 |
|
|
|
|
FUSE ASSEMBLY, 90 Ampere |
1 |
88-79023A90 |
0.312 Mounting Hole SN# 0M953031 THRU 0M953619 |
| 37 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
1 |
|
|
| 38 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
| 39 |
11-401388 |
|
|
|
|
NUT, (M8) Stainless Steel |
1 |
|
|
| 40 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 41 |
11-400211 |
|
|
|
|
NUT, (M5) Stainless Steel |
1 |
|
|
| 42 |
23-841940 |
|
|
|
|
BUSHING, Flanged |
1 |
|
SN# 0M953031 THRU 0M953619 |
