525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Alternator Assembly (Mando AR-150)

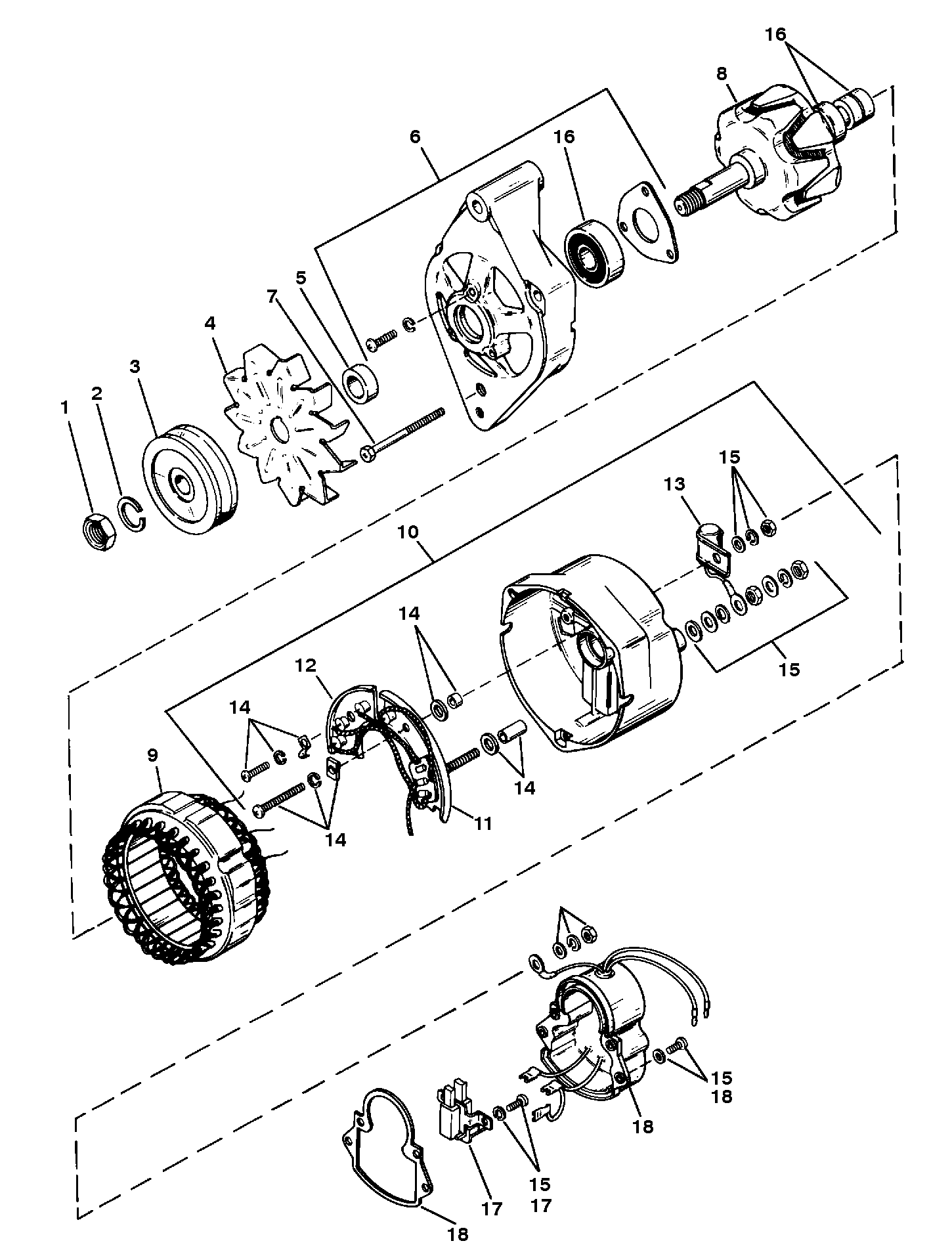

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY | 1 | 92497A3 | 4 | ||
| 1 | 11-809136 | NUT | 1 | 11-42768 | |||||
| 2 | 13-42769 | LOCKWASHER | 1 | ||||||
| 3 | 809134 | PULLEY | 1 | 42770 | |||||
| 4 | 42771 | FAN | 1 | This Part is No Longer Available | |||||
| 5 | 23-42772 | SPACER | 1 | This Part is No Longer Available | |||||
| 6 | 42774 | BRACKET-Front | 1 | This Part is No Longer Available | |||||
| 7 | 10-42773 | BOLT | 3 | This Part is No Longer Available | |||||
| 8 | 42775 | ROTOR (Includes Bearings) | 1 | This Part is No Longer Available | |||||
| 9 | 42776 | STATOR | 1 | This Part is No Longer Available | |||||
| 10 | 42777 | BRACKET-Rear | 1 | This Part is No Longer Available | |||||
| 11 | 42778 | HEAT SINK | 1 | This Part is No Longer Available | |||||
| 12 | 42779 | HEAT SINK | 1 | This Part is No Longer Available | |||||
| 13 | 42780 | CONDENSER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 14 | 42783 | HARDWARE KIT-Internal | 1 | This Part is No Longer Available | |||||
| 15 | 42782 | HARDWARE KIT-External | 1 | This Part is No Longer Available | |||||
| 16 | 42781 | BEARING KIT | 1 | This Part is No Longer Available | |||||
| 17 | 42785 | BRUSH KIT (Includes Springs & Brushes) | 1 | ||||||
| 18 | 42785 | REGULATOR KIT | 1 | No longer made, limited availability |
